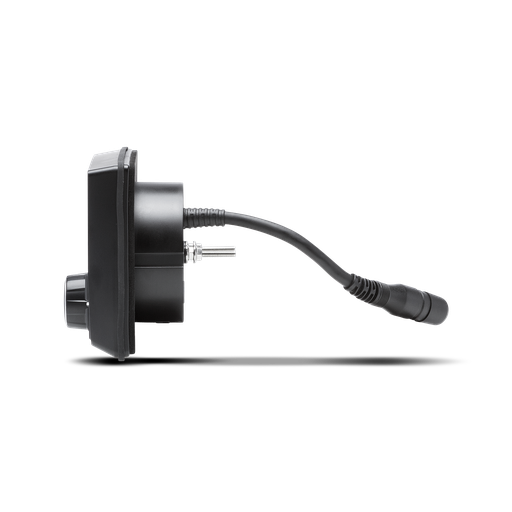

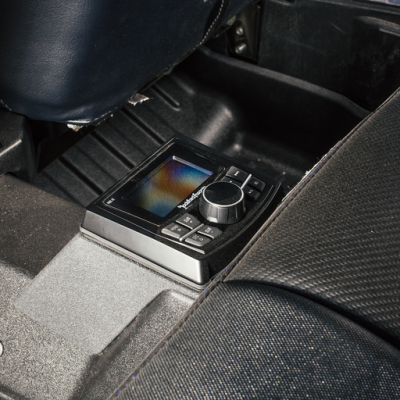

The PMX-1R is a full function wired remote controller with a 2.7" full-color display for PMX source units.
Multi Zone Control, Front Panel Sub Control, Waterproof Rotary Encoder Volume Control, Front Panel Illumination Control, IPX6 Front Panel Certification, Back Lit LED Button Illumination. Works with all PMX source units.
- 2.7" full color display w/ auto dimming backlightning
- Compatible wired remote for PMX-8BB
- Compatible wired remote for PMX-5 and PMX-5CAN
- Compatible wired remote for PMX-3
- Compatible wired remote for PMX-2
- NOTE: SiriusXM is compatible with PMX-8BB and PMX-5
- 2-Year Warranty
Technologies
Element Ready™ - Source Units
These source units are protected against Dust, UV, Temperature, Water, Corrosion & Vibration.
| Specifications | |
|---|---|
| Speaker Impedance | No |
| Display Size | 2.7" |
| Speaker Outputs (Yes/No) | No |
| Power Output | No |
| Dimensions (HxWxD) | 4.2" x 4.5" x 2.5" 106mm x 115mm x 64mm) , Faceplate Protrudes: 1.5" (38mm) |
| Clock (Yes/No) | Yes |
| Pandora® Internet Radio (Yes/No) | No |
| Bluetooth® (Yes/No) | No |
| AUX Input (Yes/No) | No |
| Steering Wheel Control Ready (Yes/No) | No |
| Apple®/Android™ Compatible (Yes/No) | No |
| Multi-Zone/Multi-Source (Yes/No) | No |
| Remote Capacity | 3 Remote Limit 100 ft Total Wired Distance |
| Device Type | Remote Control |
| SiriusXM-Ready® (Yes/No) | No |
| USB Charging (Yes/No) | No |
| Back Panel Cutout | 3" (77mm) |
