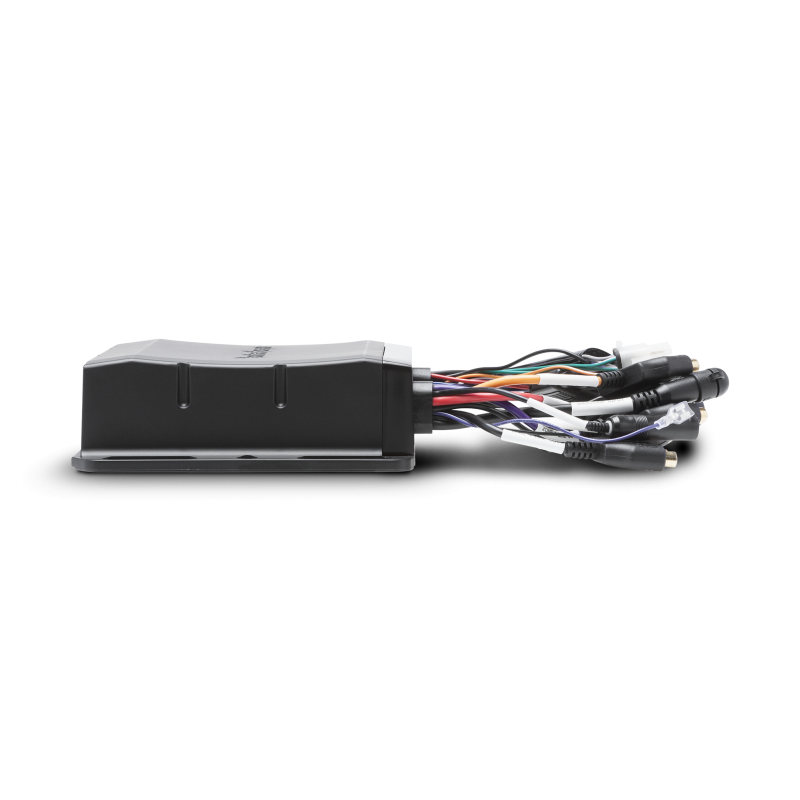

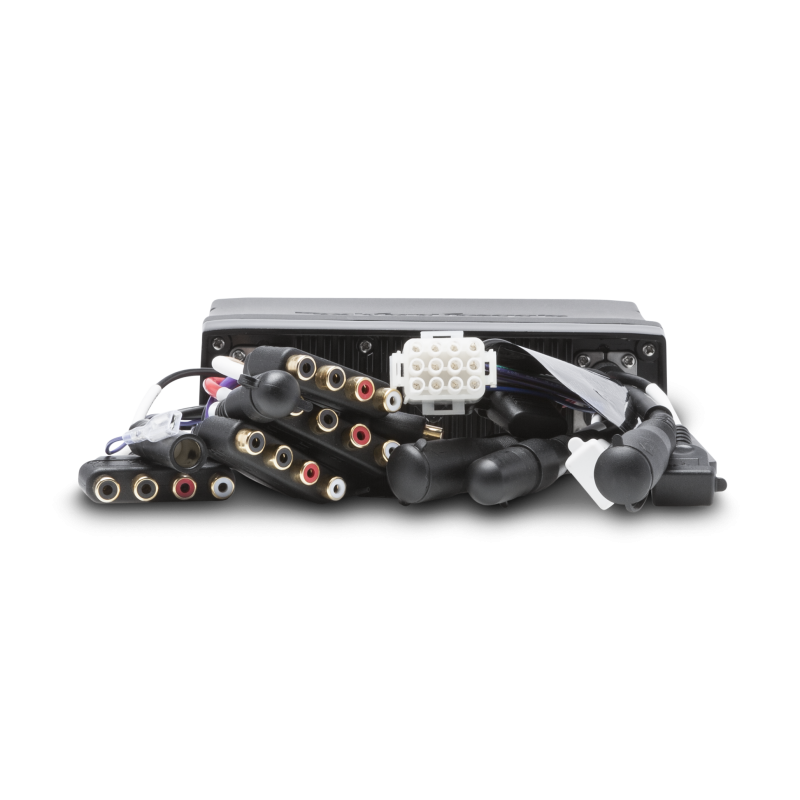

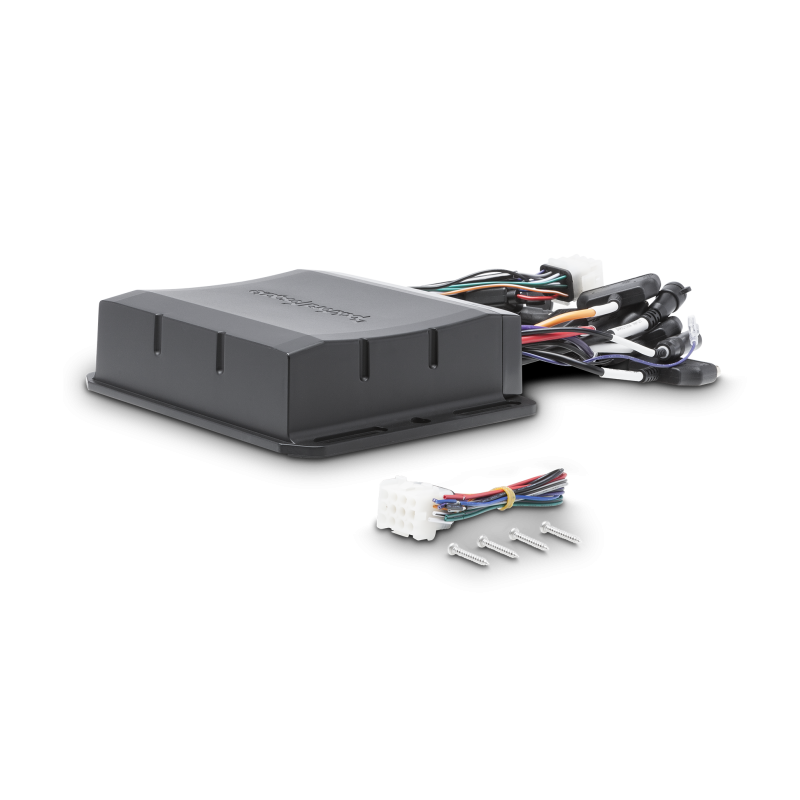

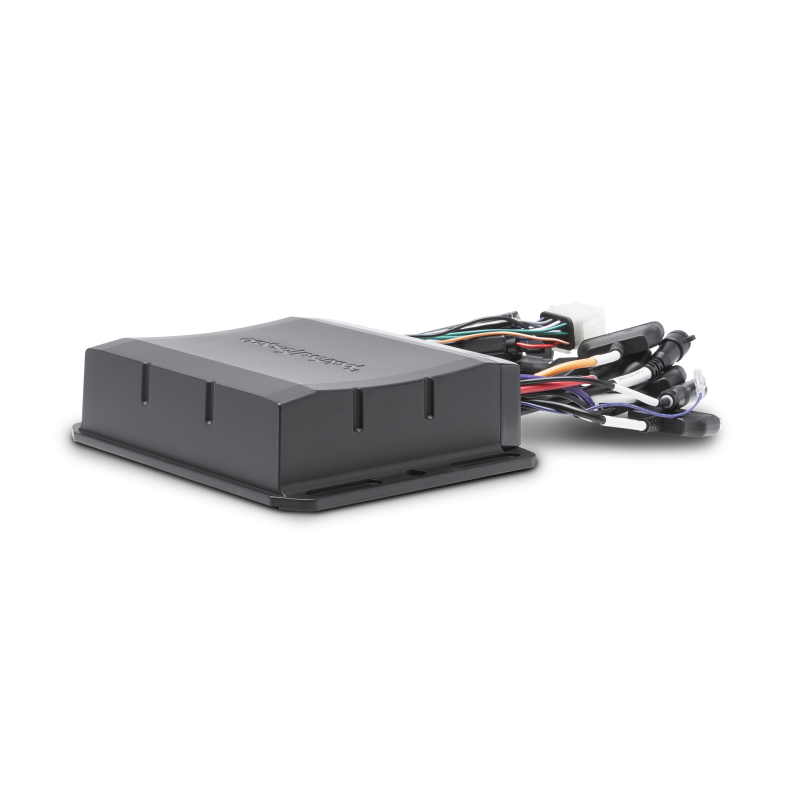

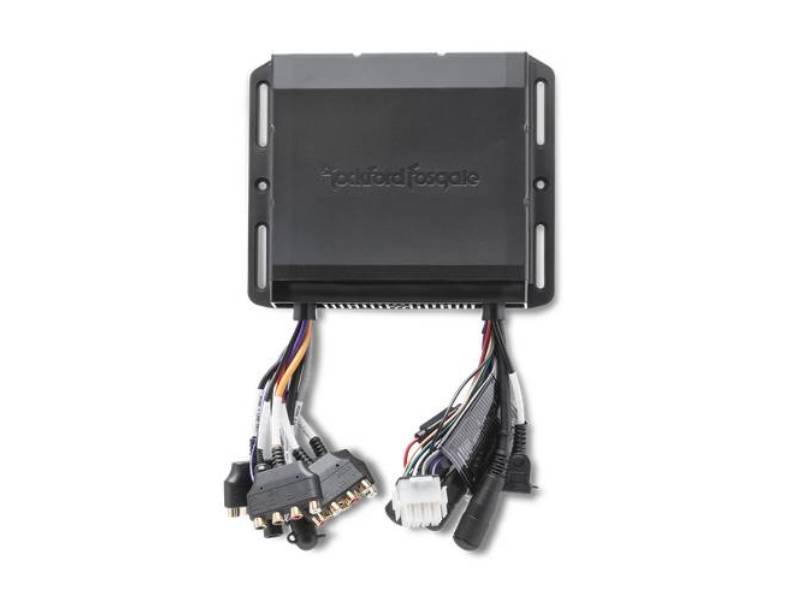

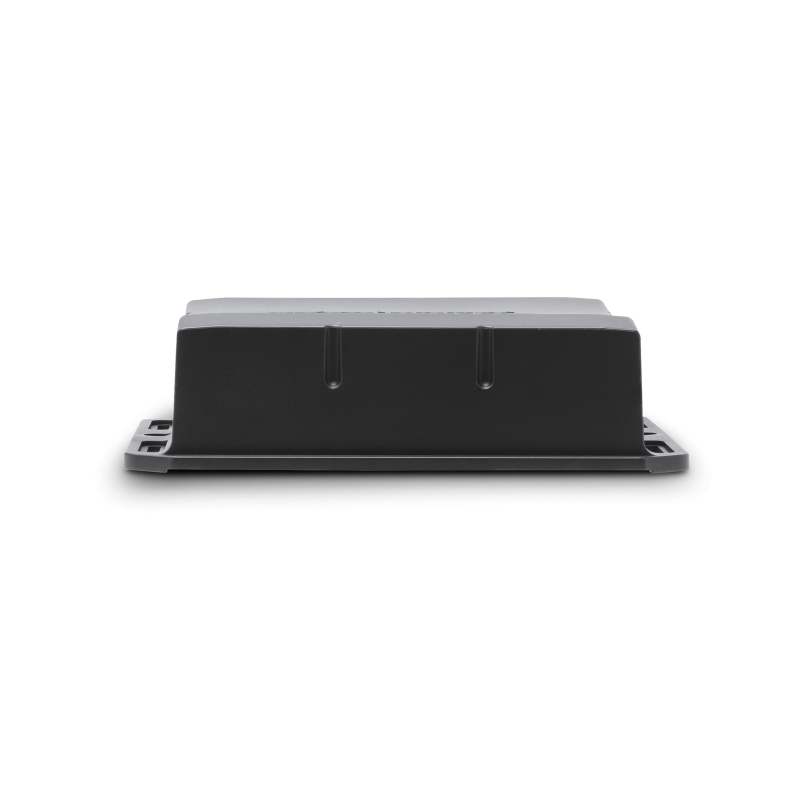

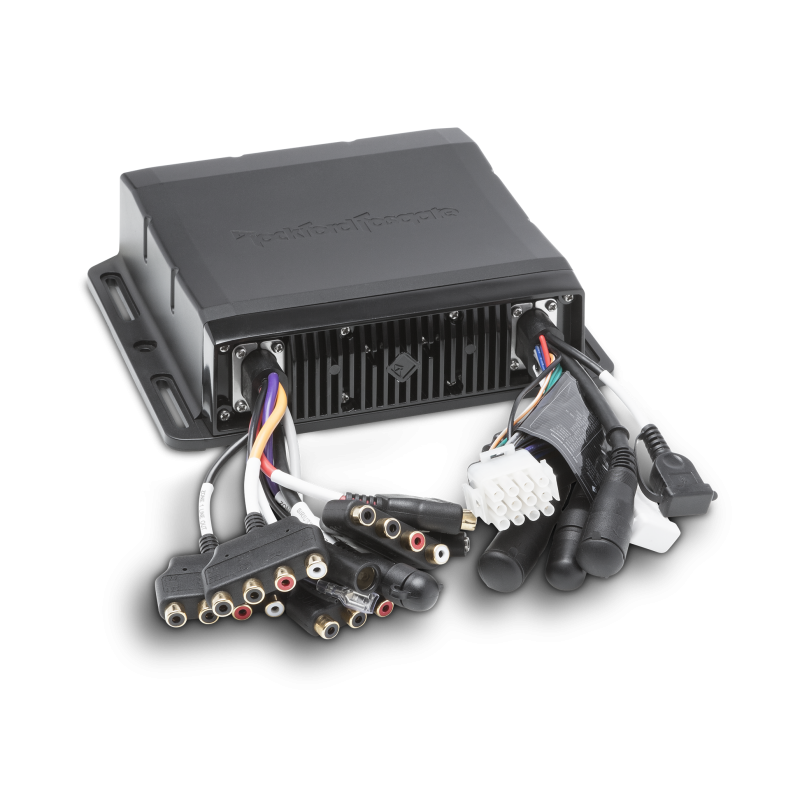

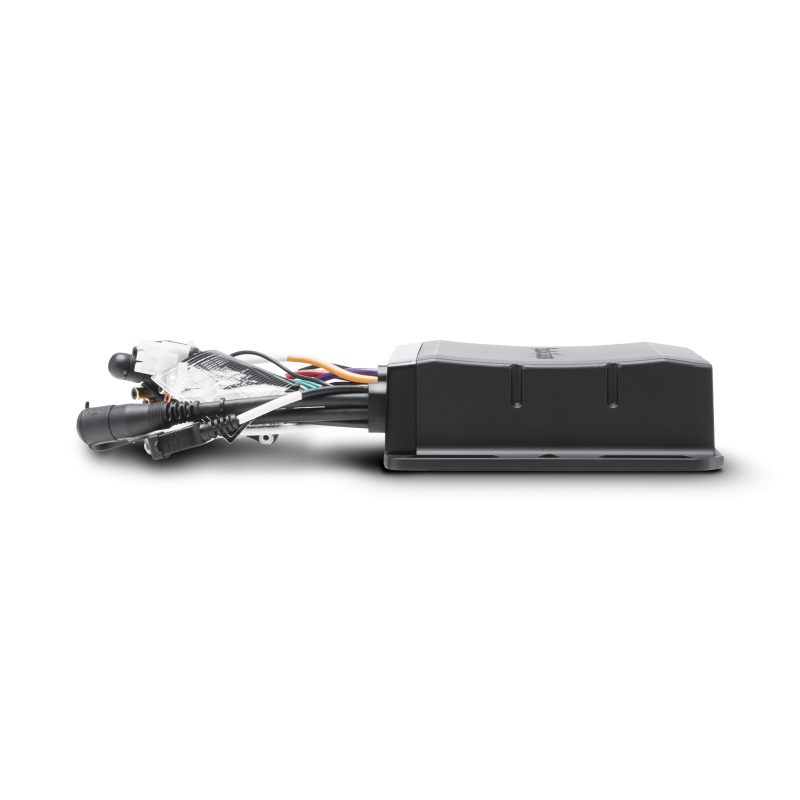

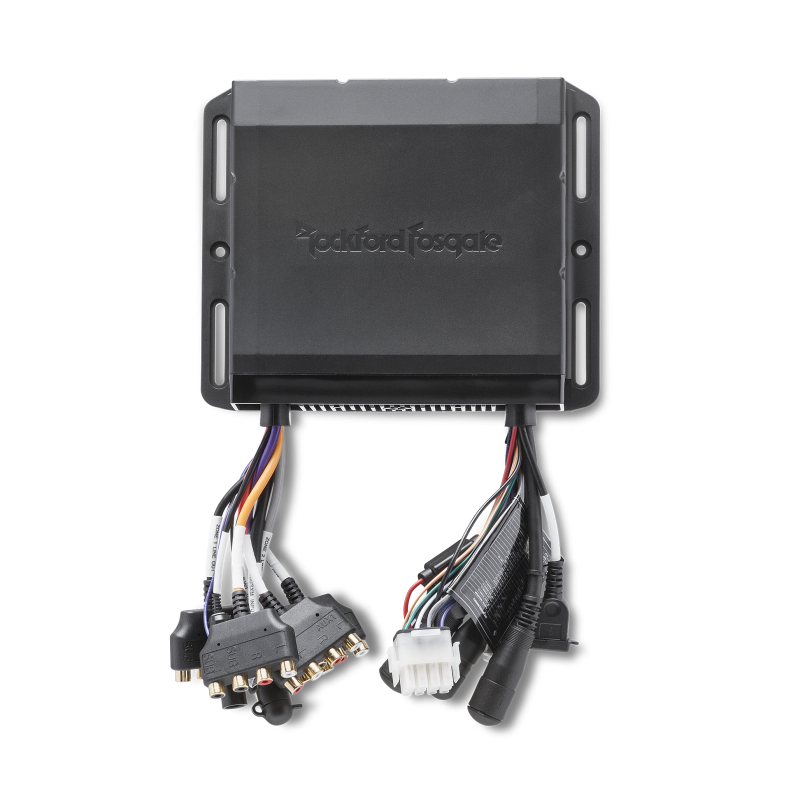

The PMX-8BB is a hide-away digital media receiver black box designed for use with the PMX-8DH controller. Features CANbus functionality for connection to Raymarine MFD (Multi-Function Display) systems using PMX-CAN.
Global AM/FM/WB Tuner, SiriusXM Ready, Full iOS/Andriod, Made for iPod, Dual USB Input w/ Video Playback, BLUETOOTH avrcp 1.5, 2-Source Zone Control, 4-Zone Volume Control, 6 Channel F/R/S 4V Zone 1&2 Preouts, 2 Channel Zone 3&4 4V Preouts, 7-Band Graphic Equalizer, Punch EQ, A/V Input, Video Output, CAN Ready, EEPROM Non-Volatile Memory,Wired Illumination Control, Steering Wheel Control Ready. Features CANbus functionality for connection to Raymarine MFD (Multi-Function Display) systems using the PMX-CAN adaptor (see Accessories tab.)
- Automotive grade AM/FM Radio, Weatherband Radio digital tuner. Supports Radio Data System (RDS) to receive and display broadcast information
- Licensed Pandora control (apple direct USB or BT/ android via bluetooth)
- Made for iPhone apple certified
- Bluetooth, A2DP only, AVRCP 1.4
- Simple secure pairing bluetooth profile for android & iOS
- Display album art from connected iPhones on the radios display
- Folder browsing via BT connected iPhones
- 4 sets (Zones) RCA out; 4 active with 4 channels per zone (2 full range + 2 sub) 4V signal output
- Internal power amplifier 4x50w 2 ohm stable
- Selectable high pass and low pass crossover points for each independent zone
- Selectable crossover slopes of 12dB or 24 dB for each independant zone
- Dedicated DSP audio processors for each zone with independent 7 Band EQ+Punch EQ
- Adjustable input gain for each source
- Electrically Erasable Programmable Read-Only Memory (EEPROM) is a type of non-volatile memory used in electronic devices to store data that must be saved when power is removed
- Integrated voltage gauge w/ low voltage alert
- Wired remote ready (up to 3 remotes)
- Rear aux-in (L/R)
- External steering wheel remote control interface compatible
- External trigger input to activate reverse camera mode
- Wired illumination control
- Optional CAN-BUS transceiver ready (PMX-CAN)
- Rear USB with 1a charging (supports album art on USB connected iPhones)
- Epoxy coated circuit board
- Upgradeable Firmware and Bluetooth Software via USB
- IPX5 Water Intrusion Rating: Water projected from nozzles from any direction shall have no harmful effects.
- CANbus (Controller Area Network) compatible. Requires PMX-CAN accessory
- Compatible with a Multi-Funtion Display using NMEA2K entertainment standard. See our MFD Compatibility Chart
- *Antenna not included
- 2-Year Warranty
Made for iPod/iPhone
This device supports the Apple "Made for iPod/iPhone" protocol.
Made for Android
This device supports the Google "Made for Android" protocol.
This source unit supports playback from a USB device.
Element Ready™ - Source Units
These source units are protected against Dust, UV, Temperature, Water, Corrosion & Vibration.
Built In Bluetooth®
Built In Bluetooth®
CANbus allows communication with other devices.
This radio is ready to accept SiriusXM® programming.
Pandora® (also known as Pandora Internet Radio) is a music streaming and automated music recommendation service.
The Free Lossless Audio Codec is an audio format similar to MP3, but lossless, meaning that audio is compressed in FLAC without any loss in quality.
|FM TUNER Frequency Range||87.5 MHz - 107.9 MHz|
|RCA Output Voltage||4V|
|Operating Voltage||10.5V - 16V|
|Dimensions (HxWxD)||H4.25" x W8.3" x D2.2" |
(108mm x 211mm x 56mm)
|USB Capacity||32Gb max |
999 Folders max
999 Songs max
|MEDIA PLAYER Audio Format Compatibility||MP3|
|Speaker Outputs (Yes/No)||Yes|
|Device Type||Digital-Media Black Box|
|Pandora® Internet Radio (Yes/No)||Yes|
|WB TUNER Frequency Range||162.40 - 162.55 |
(US & Canada)
|TUNER Number Of Presets||18 FM / 12 AM / 6 WB|
|AUX Input (Yes/No)||Yes|
|USB Charging (Yes/No)||Yes|
|Steering Wheel Control Ready(Yes/No)||Yes|
|Apple®/Android™ Compatible (Yes/No)||Yes|
|AM TUNER Frequency Range||530 kHz - 1710 kHz|
|RCA Output Impedance||500Ω|
|Made for iPod Models||iPod Touch (5th generation) |
iPod Touch (4th generation)
iPod Nano (7th generation)
iPod Nano (6th generation)
|Android Compatibility||Bluetooth® Only|
|Bluetooth® (Yes/No)||Yes |
3.0+EDR, A2DP 1.3
|USB Output Current||1A|
|Frequency Response||20 Hz - 20 kHz|
|Made for iPhone Models||iPhone XS (pending) |
iPhone XS Max
iPhone XR (pending)
iPhone 8 Plus
iPhone 7 Plus
iPhone 6s Plus
iPhone 6 Plus
|Remote Capacity||(see Compatibility Chart)|
