Rockford Fosgate Punch Marine Ultra Compact Digital Media Receiver - PMX-0

$35999
Or
as low as
$60.00
Per month over
6 months.


  • Delivery
    Pick Up
    You have selected the option to deliver this product.

    At this point of time, online shopping is available only in British Columbia.

    Add to cart
    Enter the postal code
Available to order

Literature

The PMX-0 ultra compact digital media receiver is IPX6 rated and uses a water resistant rotary encoder knob with white LED button illumination and front mounted sub level controls. It features Bluetooth audio streaming for Apple and Android products as well as auxiliary audio input and is the ideal choice for that small system media receiver.

Overview

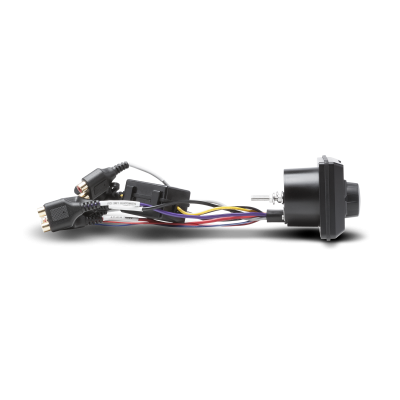

The PMX-0 is a ground up designed ultra compact digital media receiver ideal for small systems and vehicles. This unit Features Bluetooth streaming audio connectivity for both Apple and Android based devices, RCA Auxiliary inputs as well as Front, Rear and Sub RCA output connections. Control is provided through the water resistant rotary encoder knob and white LED backlit buttons and provide instant sub level control at your fingertips. The front panel is IPX6 rated for water spray intrusion and features a conformal coated PCB circuit board protecting the vital electronics. We further validate the unit with 500 hours of testing under both the ASTM B117 and D4329 testing standards to make sure it will hold up under years of daily use exposed to the elements.

  • Bluetooth streaming audio (A2DP) protocol version 1.0 installed
  • Simple Secure Pairing (SSP)
  • Waterproof Rotary Encoder Volume Control
  • White LED Button Illumination
  • Front Panel Sub Control
  • Voice Command Confirmation
  • Rear AUX-In (L/R)
  • Rear USB With 1A Charging Only
  • Epoxy coated circuit board for water resistance
  • Upgradeable Firmware and Bluetooth Software via USB
  • Easy 2" Mounting Hole and Compression U-Clamp Mounting
  • 2-Year Warranty

Technologies

Element Ready™ - Source Units

These source units are protected against Dust, UV, Temperature, Water, Corrosion & Vibration.

Built In Bluetooth®

Built In Bluetooth®

USB Playback

This source unit supports playback from a USB device.

ASTM B117 & D4329 Tested

ASTM B117 & D4329 Tested

IPX6 Water Intrusion Rating

IPX6 Water Intrusion Rating

Specifications
Operating Voltage10.5 V - 16 V
Power OutputNo
Fuse Rating3 A
USB CapacityNo
Speaker Outputs (Yes/No)No
Made for iPod ModelsBluetooth® Only
Android CompatibilityBluetooth® Only
Device TypeDigital-Media Receiver
Display SizeN/A
SiriusXM-Ready® (Yes/No)No
Pandora® Internet Radio (Yes/No)No
Bluetooth® (Yes/No)Yes
3.0, AVRCP & A2DP
USB VersionNo
USB Output Current1A (Charging Only)
USB Charging (Yes/No)Yes
FEATURESN/A
GENERALN/A
Made for iPhone ModelsBluetooth® Only
Apple®/Android™ Compatible (Yes/No)Yes
Multi-Zone/Multi-Source (Yes/No)No
RCA Output Voltage2 V
RCA Output Impedance500Ω
Dimensions (HxWxD)H2.6" x W4.1" x D2.5"
(6.6cm x 10.41cm x 3.35cm)
Faceplate: Depth 1.5" (3.81cm)
Chassis: Depth 1.0" (2.54cm)
Clock (Yes/No)No
SPEAKER OUTPUTSN/A
RCA OUTPUTSN/A
Speaker Output THD+N<1.0
AUX Input (Yes/No)Yes
Steering Wheel Control Ready(Yes/No)No
Frequency Response20 Hz to 20 kHz
Back Panel Cutout2" (52mm)
Shipping Weight1.15 Lbs. (0.52 Kg)
