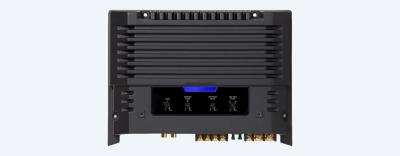

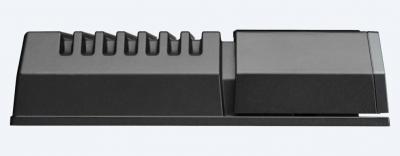

Sony Class D Monaural Power Amplifier - XMGS100

$279⁹⁹

as low as
$46.67

Per month over
6 months.

Apply Now

Online Only

Literature

Sony Class D Monaural Power Amplifier - XMGS100

Size & Weight
Dimensions (W x H x D)	272 x 51 x 202 mm
Weight	2.5 kg
Amplifier
Channel Configuration	Mono
Low Pass Filter	50-300Hz
Low-Pass Filter Slope	12dB/oct
Rated Output Power, RMS 20 - 20000 Hz
Max. Channel Configuration at 4 ohm (W) / THD (%)	330W x 1 / 1.0% (20-200Hz)
Max. Channel Configuration at 2 ohm (W) / THD (%)	600W x 1 / 1.0% (50Hz)
Maximum Output Power (1 kHz)
Max. Channel Power Configuration at 4 ohm	600W x 1
Max. Channel Power Configuration at 2 ohms	1100W x 1
General Features
Frequency Response	10-300Hz
Tolerance	+0.5/-3dB
Signal to Noise Ratio	100dB
Total Harmonic Distortion at 1 kHz (%)	0.1% (50Hz)
DETAILS
CTA Power Output	330W x 1
CTA SN Ratio	65dBA
Load Capability (ohm)	NO / YES
MOSFET	YES
Subsonic High Pass Filter	YES
Bass Boost: Frequency (0 - 10 dB)	40Hz
Speaker Level Input	YES
Line In: Input Sensitivity	0.3-6
Gold Plated Connectors	YES
Current drain (A) - rated output power at 4 ohm	30A
Line Out	YES (Through)
