600 W x 1 RMS output power
Enjoy dynamic sound with an output power of 600 W x 1 RMS at 4 ohms / 1,000 W x 1 RMS at 2 ohms. The highly efficient class-D amplifier boosts your in-car music, adding a powerful and clear low-end to your favourite tunes.
Powerful sound with astonishing clarity
Sony’s expertise and long years of engineering experience with digital amplifiers has made it possible to realize a compact and powerful amplifier, with uncompromising sound quality.
Optimized power blocks

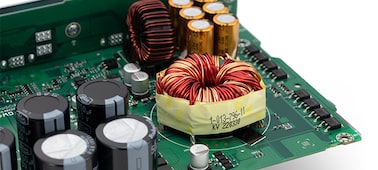

To reproduce powerful and clean low end, the power supply block is optimally designed for low-noise, highly efficient electric power transmission, where the DC converter with a toroidal core transformer is chosen for less electro-magnetic interference.
Select components for superior sound
The upgraded inductors with OFC wires are selected for lower internal resistance and improved sound character, while the high-capacity electrolytic capacitors contribute to precise and responsive bass.
High-quality speaker terminal
The speaker terminal features Hex-key screws, providing a durable method of tightening the wire connections while accepting bare wire or wire ferrules (up to AWG #8) for superior electrical performance and high-quality sound, and safe connection.
Enhanced logical control and connection placement
Controls for adjustments, and placement of connections, are logically placed for easy understanding and use. The carefully considered layout ensures both intuitive operation and installation simplicity.
Sturdily built structures
The bottom plate with 1.2 mm thickness and its updated cross-bracing press design improve chassis rigidity at approximately 50%, reducing the resonance and shifting the resonance peak out of the vehicle’s harsh vibration frequency band while improving damping performance dramatically.
Signal summing for seamless connection to factory audio
The new input selector can combine stereo audio signals into a monaural signal, before filtering to low-end. And you can even send the consolidated or passing through line-level signal onto other amps in the chain, allowing for flexible installation in various types of vehicles and audio system setups.
Clear labels and values
The redesigned control panel features logical placements with easy-to-understand correlation and updated graphics.
| Size & Weight | |
|---|---|
| DIMENSIONS (W X H X D) | 270 mm x 60 mm x 215 mm |
| WEIGHT | 2.9kg |
| Amplifier | |
| CHANNEL CONFIGURATION | 1-ch (Mono) |
| LOW PASS FILTER | Variable (50–500 Hz) |
| LOW PASS FILTER SLOPE | 24 dB/oct |
| CTA Rated Output Power | |
| 4 OHMS | 600 W x1 |
| Rated Output Power (14.4 V) | |
| 4 ohms | 600 W x1 at 100 Hz, 1% THD |
| 2 ohms | 1,000 W x1 at 100 Hz, 1% THD |
| Maximum Output Power (1 kHz) | |
| Max. Channel Power Configuration at 2 ohms | 1550W |
| Max. Channel Output Power Configuration at 4 ohm | 1000W |
| General Features | |
| FREQUENCY RESPONSE | 10–500 Hz |
| TOLERANCE | +0.5/-3dB |
| TOTAL HARMONIC DISTORTION AT 1 KHZ (%) | Less than 0.05% |
| DETAILS | |
| CTA Power Output | 600 W x1 |
| MOSFET | Yes (Power Supply) |
| Subsonic High Pass Filter | Yes |
| Speaker Level Input | Yes |
| GOLD PLATED CONNECTORS | Yes |
