SVSound SoundPath Speaker Level Subwoofer Adapter - SPSLSA

SVSound SoundPath Speaker Level Subwoofer Adapter - SPSLSA

Quote Request

Online Only

SPSLSA
Best Deal Promise

Description

Add pristine speaker-level to line-level subwoofer connectivity with no loss of fidelity. For use with integrated amplifiers and legacy stereo receivers which lack line level or subwoofer outputs. Easy set up with high quality speaker-level binding post inputs, and stereo RCA line-level outputs.

Overview

Many integrated amplifiers and legacy stereo receivers lack line-level outputs, leaving enthusiasts without the ability to connect a powered subwoofer to their system.

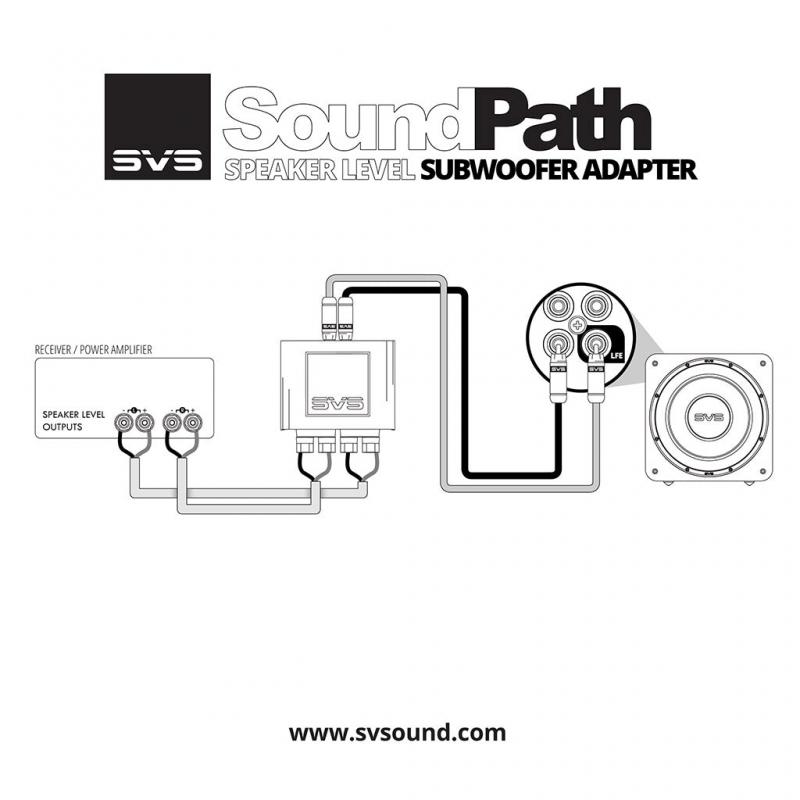

The SVS SoundPath Speaker Level Subwoofer Adapter elegantly solves this problem by stepping down the loudspeaker amplifier speaker-level voltage to RCA line-level voltage, allowing for a safe connection to a powered subwoofer with no loss of fidelity.

With a minimalist design and premium components, the SoundPath Speaker Level Subwoofer Adapter ensures pristine and transparent signal transfer to the subwoofer without compromise to any part of the playback system.

Specifications

99.99%, OSD Oxygen Free Copper For Pristine Signal Transfer, High Dynamic Range and, Exceptional Conductivity

3-layer shielding system for rejecting all RF noise and interference

High, Tensile Protective Braided Sleeve for Insulation, Easy Handling and Superior Durability

Description

Specs

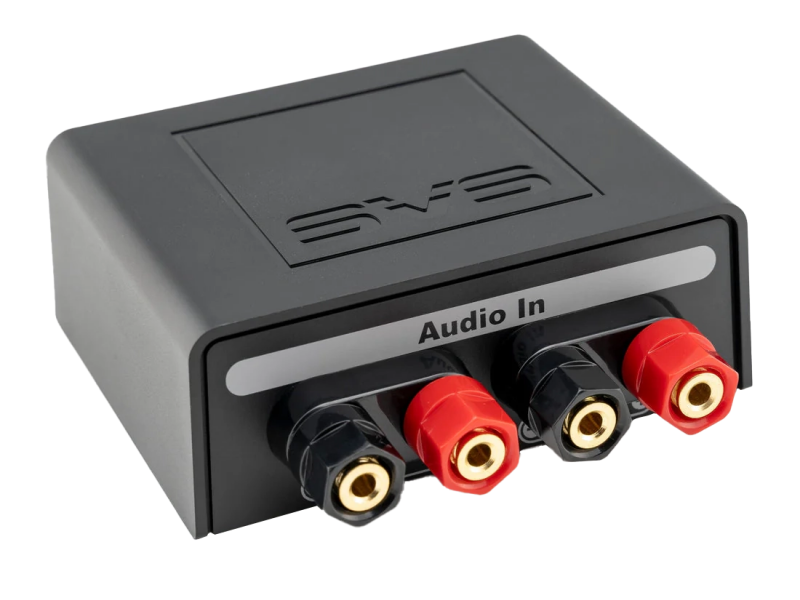

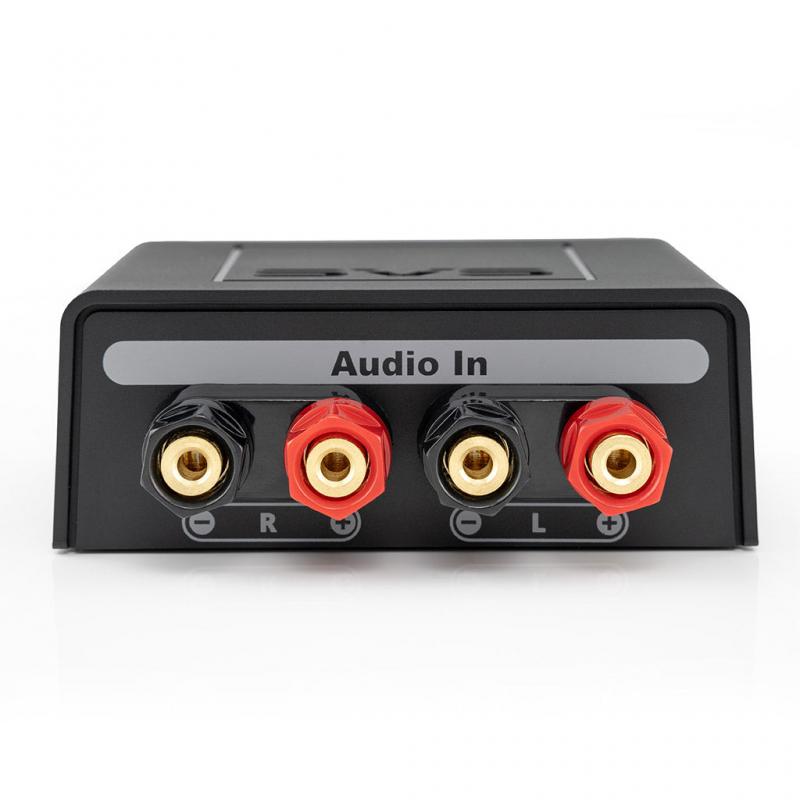

Speaker-Level Inputs: Stereo Gold-Plated 5-Way Speaker-Level Binding Posts

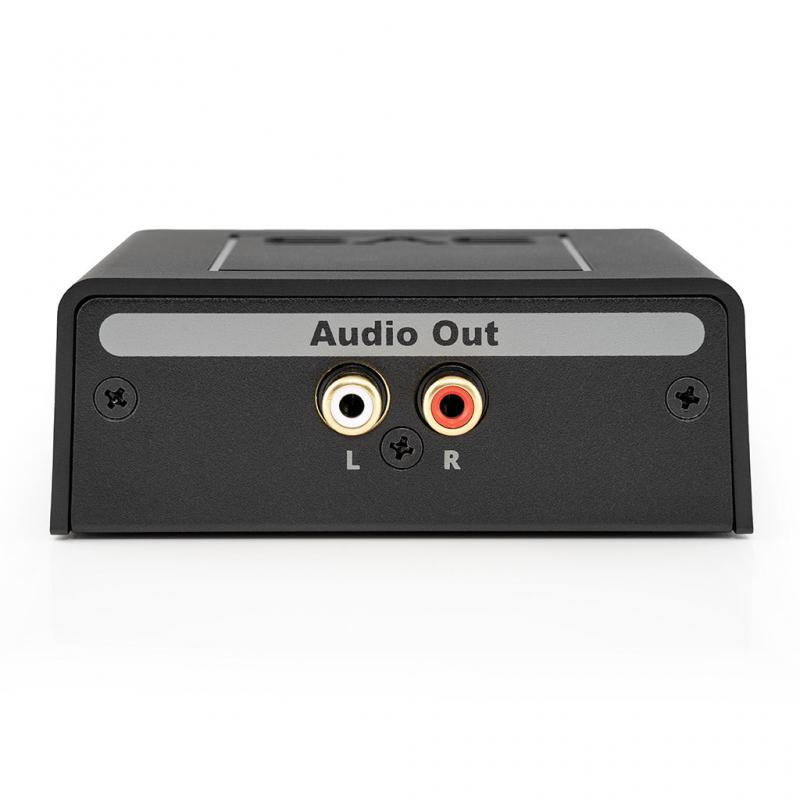

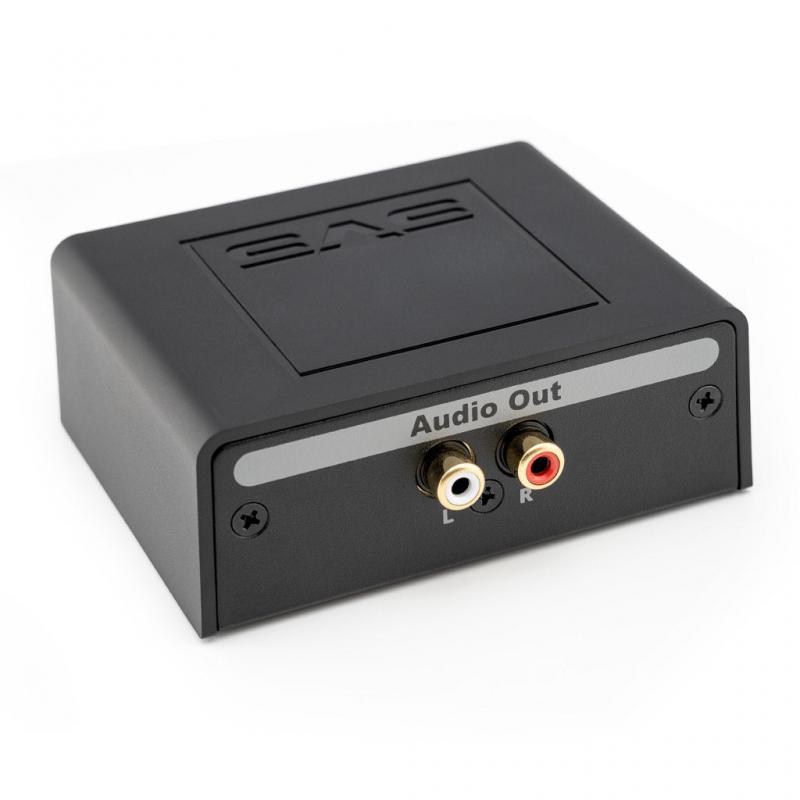

Line-Level Outputs: Stereo Gold-Plated RCA Jacks
Speaker-Level Input Impedance: 4.85 kΩ
Line-Level Output Impedance: 150 Ω
Voltage Attenuation: -30 dBV
Power Handling: 500W RMS / 1,000W Peak
Frequency Response: 10 Hz – 80 kHz (+/- 0.01 dB)
THD+N @ 10V: <0.03% (10 Hz – 80 kHz)
Dimensions: 1.5” (37 mm) H x 3.9” (99 mm) W x 4.1” (103 m) D
Weight: 0.6 lb. (0.28 kg.)
