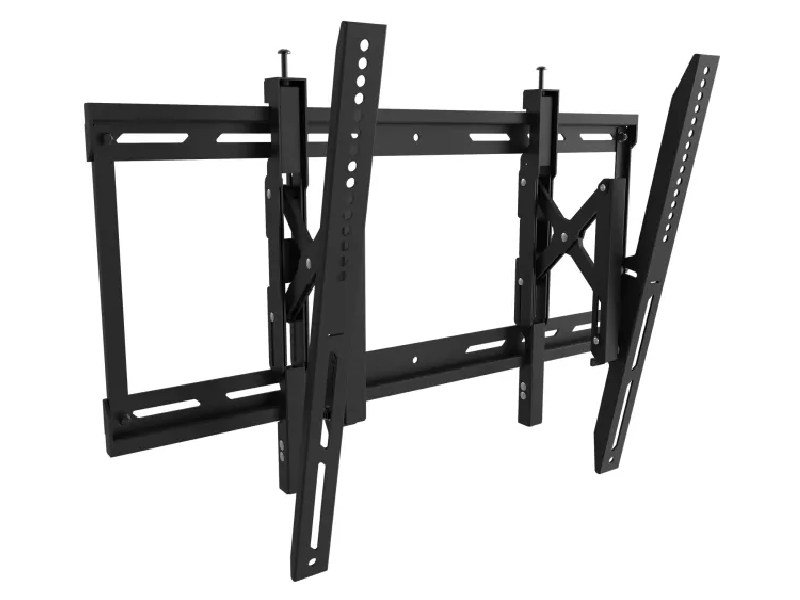

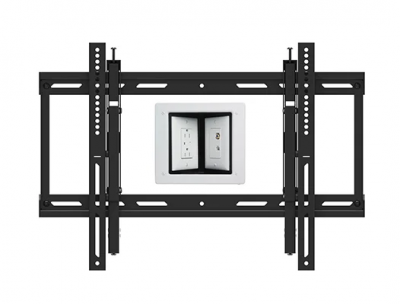

The TE300 extendable tilting TV mount offers the simplicity of a tilt mount with none of the drawbacks. TE300 eliminates the need to plan cabling in advance by pulling away from the wall up to 6” providing easy access to the back of your TV. This extension allows TE300 to pan 8 degrees to left or right, while 12 degrees of forward tilt and 2 degrees of backward tilt help avoid glare and improve visibility when mounted above eye level. To ensure perfect TV placement, oversized TV brackets let you adjust your TV vertically while the wide, open-frame wall bracket provides horizontal adjustment and an area to route cables. Capable of supporting up to 150 lbs, any TV between 43” and 90” can mount safely and securely to the TE300 tilting tv mount.
The new standard for tilting TV wall mounts

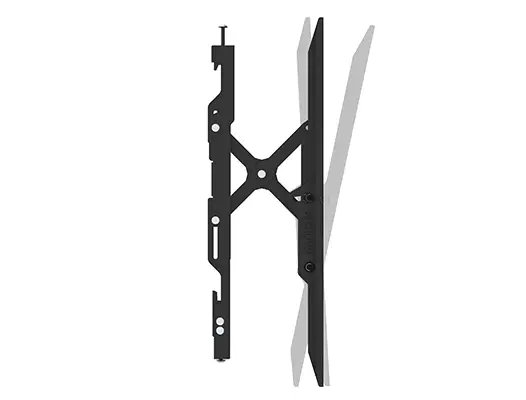

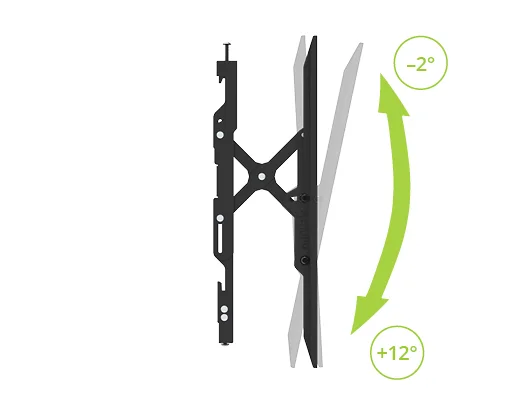

Forward & Backward Tilt
Tilt your TV up to 12° forward or 2° backward to reduce glare and improve line-of-sight with your screen.

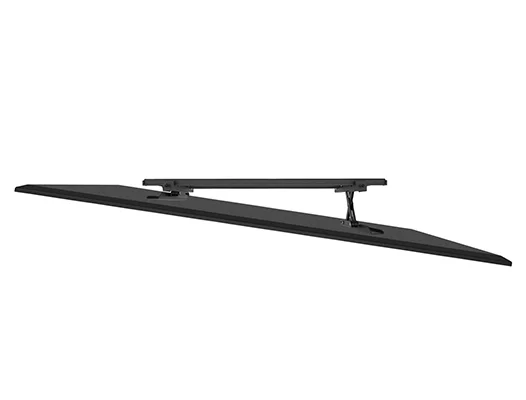

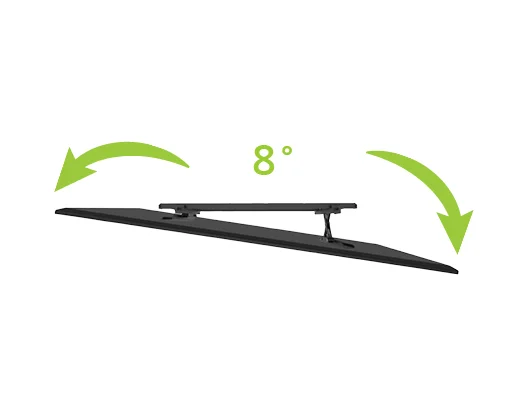

Enhanced Visibility
The design of TE300 tilting TV mount lets you pan your TV up to 8 degrees left or right for comfortable viewing.

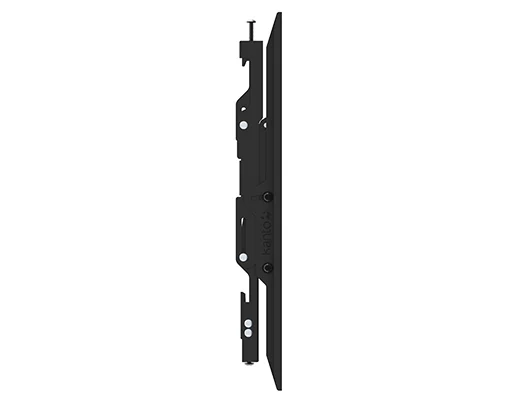

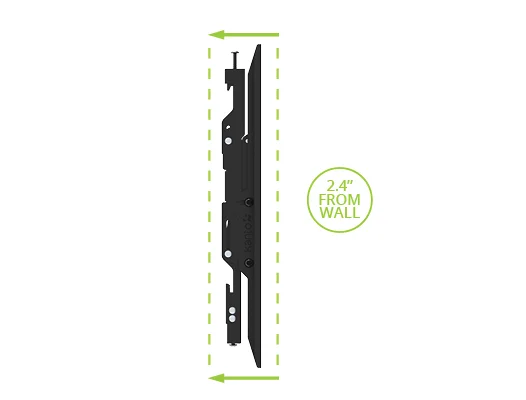

Slim Profile
The TE300 tilt and extend TV wall mount, your screen sits 2.4″ from the wall when fully pushed back.

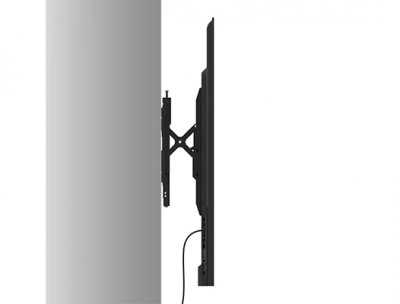

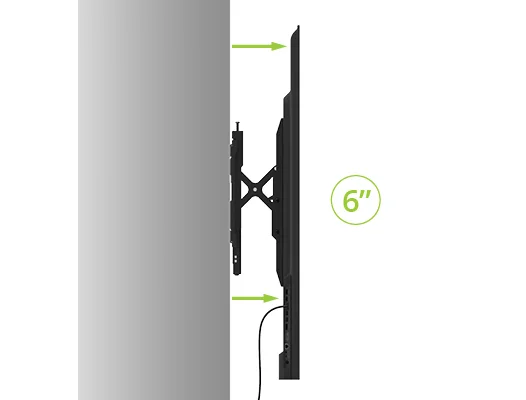

Easy Input Access
6” of extension lets you access cables at the rear of your TV – something standard tilt mounts can’t do.

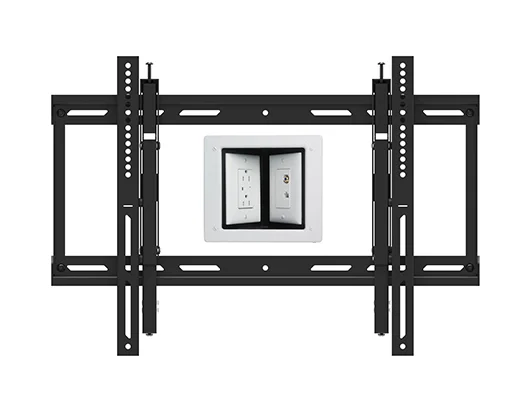

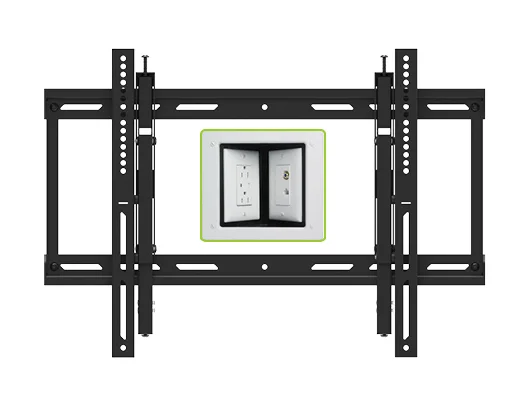

Open Wall Plate
A spacious open wall plate allows you to mount over electrical outlets or media boxes for clean cable routing.

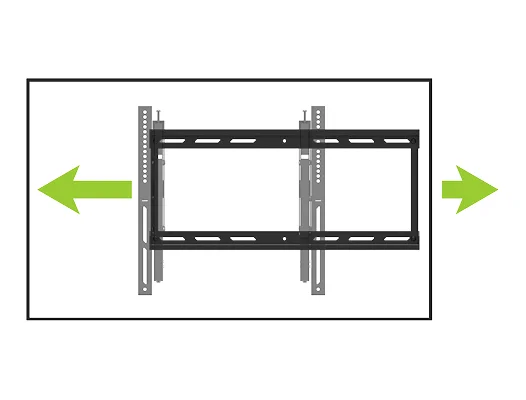

Perfect Placement
Oversized TV brackets let you adjust your screen vertically while the wide wall plate allows for horizontal adjustment to ensure perfect placement.

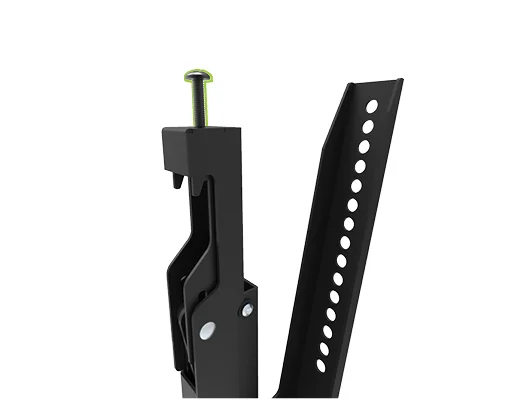

Post-Installation Leveling
Ensure your TV is perfectly level by adjusting the individual screws located on top of each mounting bracket.
Ultra-easy install
This easy-to-follow installation video will guide you through the steps required to safely mount your Kanto TE300 extend & tilt TV wall mount.
| Specifications | |
|---|---|
| TV Sizes: | 43” to 90” |
| Weight Allowance: | 150 lb (68 kg) |
| VESA Sizes: | 100×100 to 600×450 |
| Wall Plate: | 7” (68.6 cm) dual stud wall plate accommodates up to 24″ stud spacing |
| MEASUREMENTS | |
| Shipping box weight: | 13.9 lb (6.3 kg) |
| Specifications | |
| Shipping box dimensions: | 30.4″ x 6.8″ x 3.9″ / (77.3 x 17.3 x 9.8 cm) |
| General Features | |
| Product weight: | 12.1 lb (5.5 kg) |
| UPC: | 800152721347 |
| What’s Included | Installation ManualDrill TemplateAll mounting hardware for wood stud and concrete installation |
| Profile: | Sits 2.4″ (6.1 cm) from the wall |
| Extension: | Up to 6″ (15.2 cm) from the wall |
| Material: | Solid steel with durable powder-coated finish Adjustable horizontal leveling |
| Warranty | 5 Years |
