Open the dryer to fewer wrinkles whether you toss in an outfit, delicates or an extra-large load with Steam Iron Option*. AI Dry knows exactly when to stop drying your clothes so they come out dry the first time. Ready Refresh Cycle reduces wrinkles in an outfit in about 15 minutes**. And get a smooth and quiet operation with the Quiet Inverter Motor
Top Features
Steam Iron Option
Open the dryer to fewer wrinkles, whether you toss in an outfit, delicates, or an extra-large* load of laundry. The Steam Iron Option visibly reduces wrinkles while tumbling, so your clothes come out freshly steamed and ready-to-wear.
*Compared to using traditional steam in a 16-lb load
AI Dry
AI Dry uses a neural network to know exactly when your clothes are done drying. Trained on hundreds of cycles, it detects when your load is dry so clothes come out dry the first time. Track your dryer's cycle progress in the Whirlpool® App and receive improvements over time with OTA updates.*
*Product must be connected to receive over-the-air (OTA) updates. WiFi & Updated App Required. Features subject to change. Appliance must be set to Remote Enable. Details & privacy info at whirlpool.com/connect.
Ready Refresh Cycle
Refresh a wrinkled outfit in no time. The Ready Refresh Cycle uses Steam Iron to visibly reduce wrinkles in about 15 minutes*, so you can head out the door looking your best.
*Based on a 2-lb. load
Additional Features
Smart Features with Whirlpool® App (Legacy App)
Be in control and stay connected from anywhere. The Whirlpool® App lets you start, pause, track progress and receive notifications when you're away. Plus, access specialty cycles only available on the app, or create custom cycles you can save right to your machine*.
*Features subject to change. WiFi & App Required. Appliance must be set to Remote Enable. Details & privacy info at whirlpool.com/connect.
Wrinkle Shield™ Plus Option with Steam
Help keep wrinkles from setting into clean, dry fabrics. The Wrinkle Shield+ Option uses tumbling and optional steam for up to 150 minutes after the cycle ends, or until you open the dryer door, for improved wrinkle-fighting performance.
Quiet Dry Cycle
Start a load and settle in with minimal disruption. The Quiet Dry Cycle runs a regular load using the Quiet Inverter Motor for a smooth start and no end-of-cycle tone when the cycle is complete.

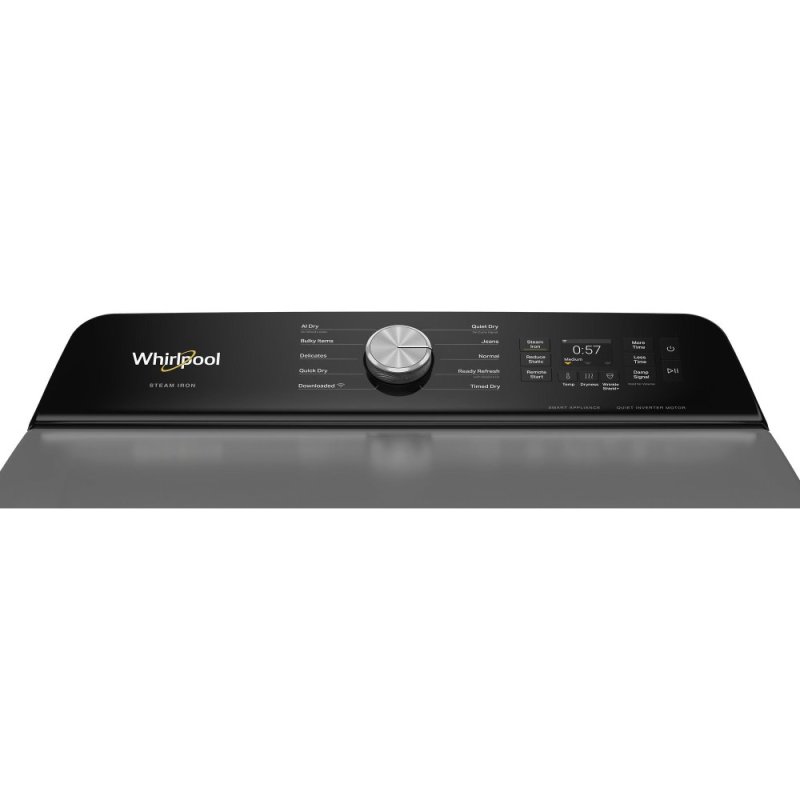

Hybrid Electronic Controls with LCD Screen
Hybrid electronic controls pair a physical dial and dedicated buttons with a bright LCD display so every selection is clear before the cycle starts. The intuitive layout puts controls exactly where you'd expect them, with a sleek, modern design that upgrades the entire laundry experience.
| Dimensions | |
|---|---|
| Depth | 29.88 " |
| Width | 27.13 " |
| Height | 41.13 " |
| Carton Depth | 29.88 " |
| Carton Height | 45.88 " |
| Carton Width | 29.13 " |
| Gross Weight | 118.0 lbs |
| Net Weight | 101 lbs |
| Depth With Door Open 90 Degree | 45.88 " |
| Capacity | 7.5 |
| Maximum Height | 42.13 " |
| Minimum Height | 41.13 " |
| DETAILS | |
| Lint Screen Location | Front |
| Maytag Commercial Components | No |
| Drying Rack | No |
| Quad Baffles | No |
| Hoses Included | No |
| Drum Material | Powder Coat |
| Exterior | |
| Door Style | Hamper / Drop Down |
| Reversible Door | No |
| Window | Yes |
| CONTROLS | |
| Feedback Status Indicators | Check Lint Screen Check Vent |
| Control Location | Rear Console |
| Control Type | Knob amp Buttons |
| End Of Cycle Signal | Programmable |
| Features | |
| Pedestal Options | N/A |
| Stackable | No |
| LP Convertible | No |
| Automatic Dry Control | Yes |
| Moisture Sensor | Yes |
| Specifications | |
| Top Load Matching | Yes |
| Front Load Matching | No |
| Optional Accessories | 4396028 |
| Country Of Origin | USA |
| Required Accessories | W10044609A, W10623830 |

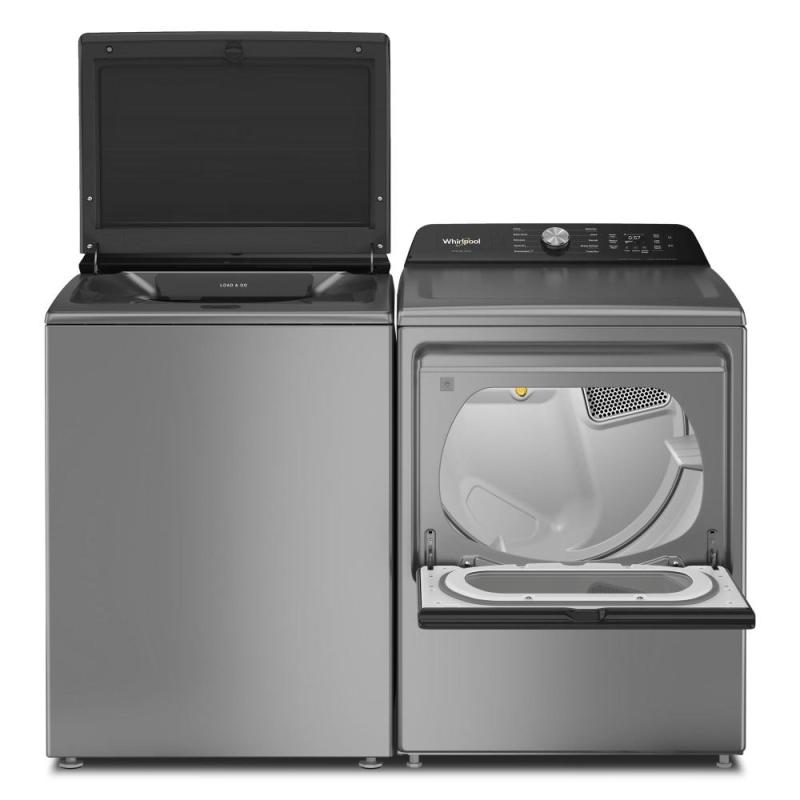

| Product To Product Pairs | WGD8509TR, WTW8507TR, WTW8509TR |
| CYCLES AND OPTIONS | |
| Cycle Time Remaining | Yes |
| Installation Considerations | |
| Long Vent | No |

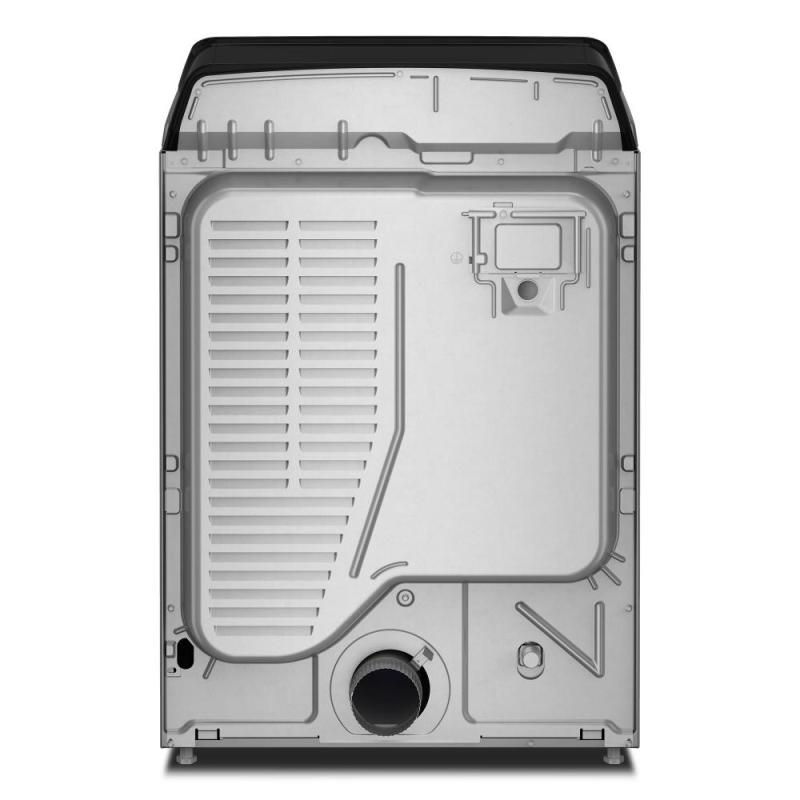

| Venting Direction | Rear Only |
| Modifiers | |
| Dryness levels | 3 |
| Selection Of Drying Levels | Less More Normal |
| Options | |
| Number Of Dryer Options | 9 |
| Dryer Option Selections | Wrinkle Shield |
| Temperature Settings | |
| Number Of Temperatures | 5 |
| Temperature Selection | Air Only Extra Low High Low Medium |
| Certifications | |
| UL | Yes |
| Energy Star | No |
| Compatibility | |
| Connectivity | App WiFi |
| Works With | Android iOS |
| ELECTRICAL | |
| Amps | 30.0 |
| Volts | 240.0 |
| Hz | 60.0 |
| Cycles | |
| Drying Cycles Selections | AI Dry Bulky Items Delicates Downloaded Jeans Normal Quick Dry Quiet Dry Ready Refresh Timed Dry |
| Number Of Dryer Cycles | 10 |
| Configuration and Overview | |
| Fuel Type | Electric |
