PRODUCT OVERVIEW
The Next-Generation R-Series sound system line features the same “Loud and Fun” experience now certified for High-Resolution Playback.
FEATURES
- Hi-Res Audio Certified
- Glass Fiber Reinforced Cone
- Die-Cast Aluminum Basket
- Ferrite Magnet Structure
- High-Amplitude Multi-Roll (H.A.M.R.) Surround

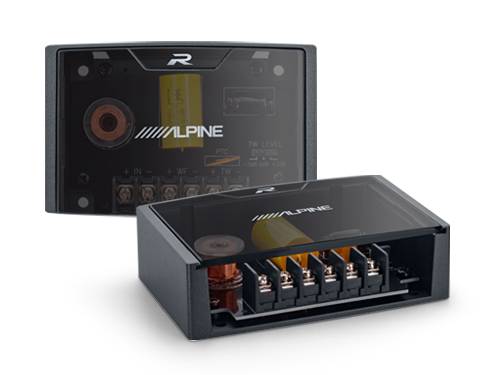

- 2 Premium-Grade Full Passive Performance Crossover Networks
- Magnesium Hard-Dome Tweeters with Swivel Mount Design and Threaded Removable Housing

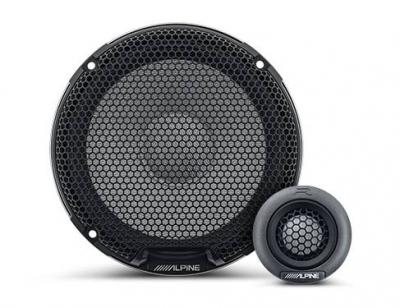

- Protective Open Mesh Grille Pair Included
What's in the Box:

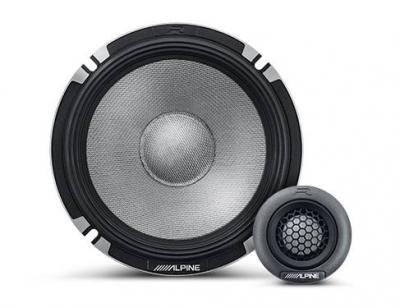

- (x2) 6.5” Mid-Bass Speakers
- (x2) 1” Tweeters (Component)
- (x2) Grilles
- Mounting Hardware (x12 Screws, x12 Speed Clips)
- Tweeter Hardware (x2 Locking Rings, x2 On-Dash Mounting)
- Alpine Registration Card
- Alpine Limited Warranty Sheet
- Owner’s Manual
- Installation Guide
HI-RES CERTIFIED
Using “trickle-down” technology, inspired design, and performance cues from the Ultra-High-Resolution AlpineF#1Status systems, the Next-Generation R-Series Speakers are Hi-Res Audio Certified and able to reproduce up to 40kHz frequency response. This ultra-wide bandwidth brings music even closer to the original source while the classic R-Series design maintains the “loud and fun” performance quality that long-time fans have come to enjoy.
PRO PERFORMANCE
The Next-Generation R-Series speakers now come in upgraded 'Pro' models in addition to the standard model lineup. The pro models utilize a highly rigid, die-cast aluminum basket that eliminates flexing and resonance during playback to ensure the highest quality sound performance.
Glass-Fiber Reinforced Cone
The new lightweight and rigid glass fiber-reinforced cone material allows for extreme movement and low distortion which results in an incredibly accurate and clean sound during playback.
Upgraded Mid-Bass
The Next-Generation R-Series speakers utilize a ferrite magnet, different from the neodymium from previous generations, and a larger motor structure that contributes to more mid-bass during the playback. Despite the larger motor structure, the speakers still maintain the same depth for easy installation.
HAMR Surround
Continuing with the Next-Generation R-Series speaker line is Alpine-exclusive High Amplitude Multi-Roll (HAMR) surround technology that increased excursions while maintaining linearity for more accurate music reproduction.
Flexible Application
Magnesium, hard-dome tweeters contribute to the “loud and fun” R-series sound signature and feature a swivel-mount design for optimal listening positioning and threaded removable housing for flexible factory applications.
| TECH SPECS | |
|---|---|
| Tech Specs: | 6.5” Mid-Bass + 1” Tweeter (Component) |
| Frequency Response: | 65Hz -40kHz |
| Power Handling: | 100W RMS / 300W Peak |
