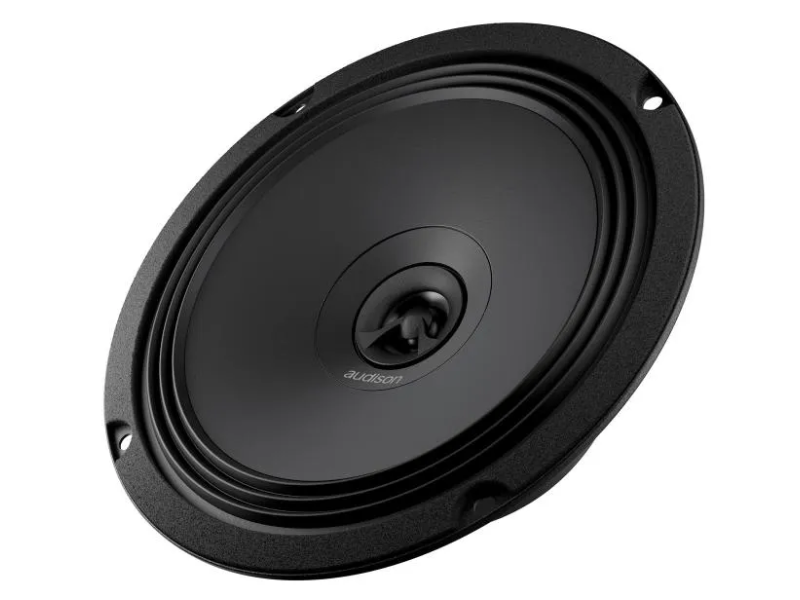

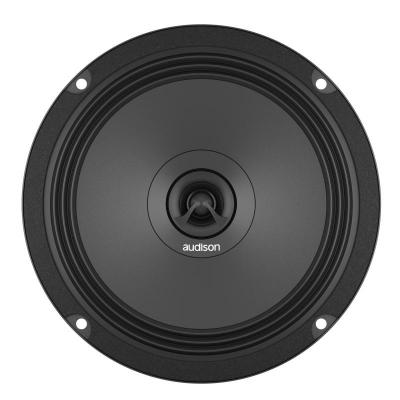

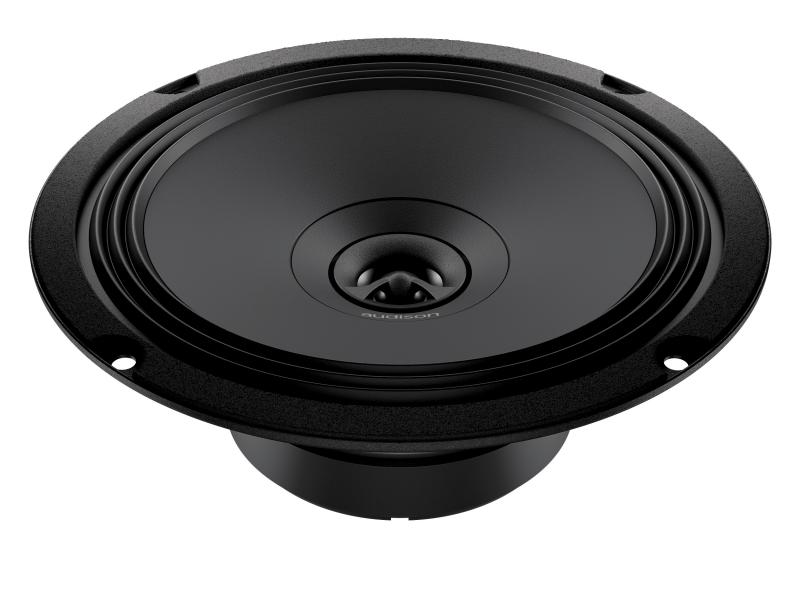

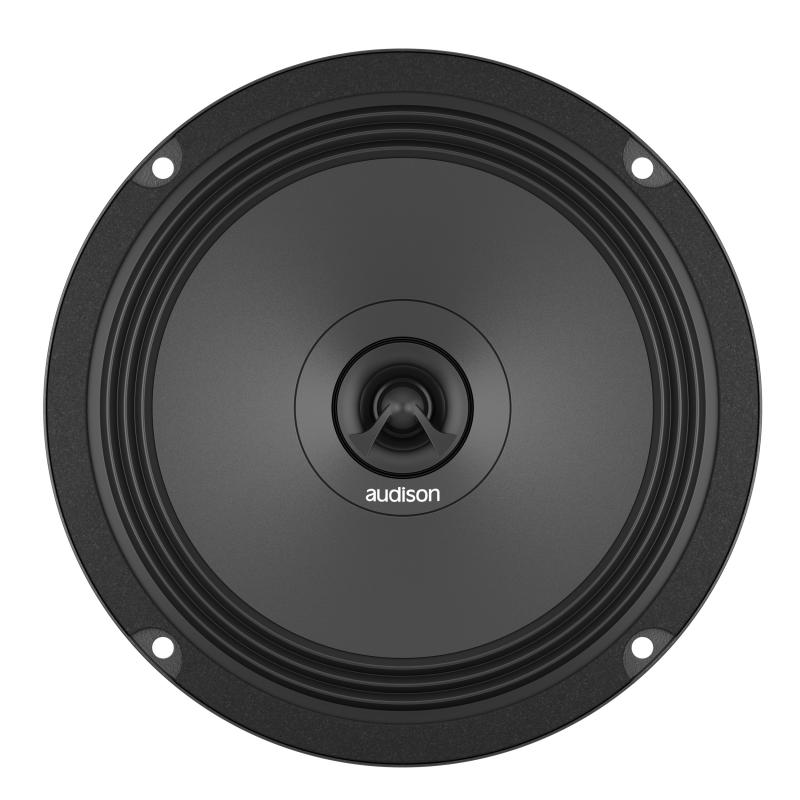

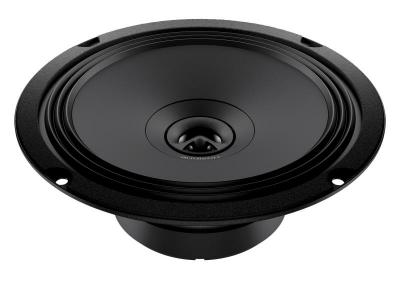

APX 6.5 features a concentric coaxial tweeter: with one single point of sound emission it is possible to obtain a consistent in-phase response, with consequent reconstruction of the acoustic scene comparable to a system of separate woofer + tweeter.The 6.5³ cones surround features the exclusive shallow Triple Wave profile, for maximum excursion linearity.
Features

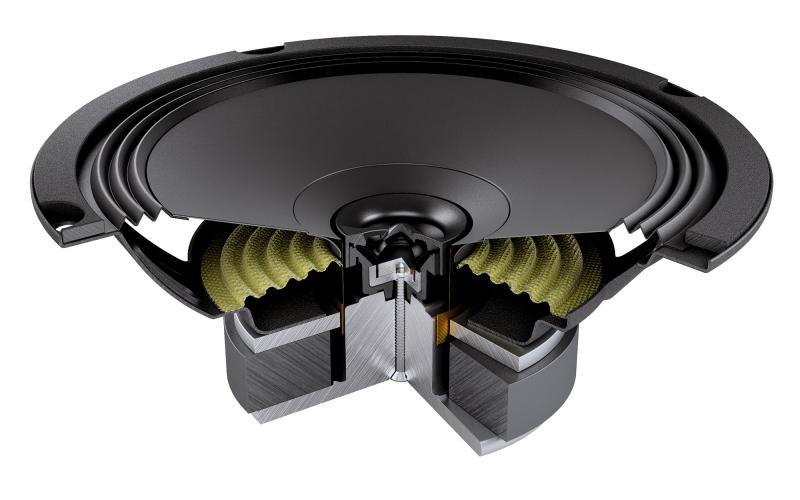

- Concentric Coaxial Tweeter: tweeter is mounted within the woofer with one single point of emission providing consistent phase response, with an accurate recreation of the sound stage comparable to that of a component system.
- Tweeter features an acoustic lens specifically designed to ensure an extremely linear frequency response, even in off-axis placement, typical of in-door installations.
- 32 mm pure copper voice coil, for high power handling and outstanding low frequency control.
- Overall mounting depth optimized for OEM Integration thanks to the concentric tweeter and the low profile basket.
- Water-repellent treated paper cone, featuring a profile developed with FEM (Finite Element Method) simulation technology and optimized with the Klippel Scan Vibrometer.
- TPU (thermoplastic polyurethane) suspension with unique “triple wave” profile for maximum linearity of excursion.
- Compact basket, protected by abrasion-resistant and scratch-proof coating, the motor affixed with damping epoxy adhesive.
- High current fast-on terminal with double contact on positive and negative poles for high flexibility and quick connection. The terminal features a temperature resistant plastic cover, protecting it against accidental short circuits.
- Developed with the KLIPPEL suite.
| ELECTRIC-ACOUSTIC SPECS | |
|---|---|
| Cms | 0.33 |
| Bl | 4.6 |
| Mms | 11.5 g |
| Vas | 8.1 l |
| LE standard | 0.1 |
| Fs | 80 Hz |
| D | 129 mm |
| Re | 3.1 Ohm |
| TECHNICAL SPECS | |
| Xmax | 2 mm |
| Tweeter Voice Coil Diameter | 15 mm |
| Woofer Voice Coil Diameter | 32 mm |
| Woofer Magnet Size | 85 x 40 x 15 |
| Woofer Frequency Response | 60 ÷ 23k |
| Woofer Power Handling - Continuous | 70 W |
| Woofer Impedance | 4 Ohm |
| Woofer Power Handling - Peak | 210 W |
| Tweeter Size | 24 mm |
| Woofer Size | 165 mm |
| ELECTRIC-ACOUSTIC SPECS | |
| Qts | 0.73 |
| Qes | 0,84 |
| Qms | 5.4 |
| Tweeter Spl | 94 dB |
| General | |
| Weight | 0.87 kg |
| Dimensions | |
| Dimension A | 165 mm |
| Dimension B | 141 mm |
| Dimension C | 60 mm |
| Dimension D | 57 mm |
