The front camera of DR750X-2CH IR records the road ahead in Full HD, while the driver-facing IR (infrared) camera captures every detail of the interior, even in pitch black lighting conditions.
Categories Cloud Dashcam, Dashcams, Taxi Dashcam
Tags: 2-Channel Dashcam, BlackVue App, BlackVue Viewer, Built-in GPS, Cloud dashcam, Fleet Management, Full HD, IR Camera, Parking mode, Wi-Fi
Secure Your Vehicle Inside and Out
BlackVue DR750X-2CH IR monitors both the front and the interior of your vehicle in Full HD, making it ideal for taxi or rideshare drivers.
The front camera records the road ahead while the interior IR (infrared) camera captures every detail of the cabin, even in pitch black lighting conditions.
The Taxi Dashcam of Reference
Full HD Front (up to 60FPS) and Interior (up to 30FPS)
Wide view angle front (139 degrees) and interior (145 degrees).
The IR camera connects to the front camera via coaxial cable–available in 1.5m (4.9ft) and 6m (19.68ft) options.
The Interior IR camera truly sees in the dark, even pitch-black lighting conditions, thanks to its integrated infrared LEDs that activate automatically based on the ambient light.
Native Parking Mode
Hardwiring cable included
DR750X Series can be hardwired to your vehicle’s fuse panel for Parking Mode, without requiring optional accessories. The dashcam will switch to Parking Mode automatically when vehicle ignition is turned off. Voltage cutoff and timer can be set in the BlackVue App.
Parking Mode accessories support
DR750X Series is also compatible with all BlackVue Parking Mode Kits and Batteries.

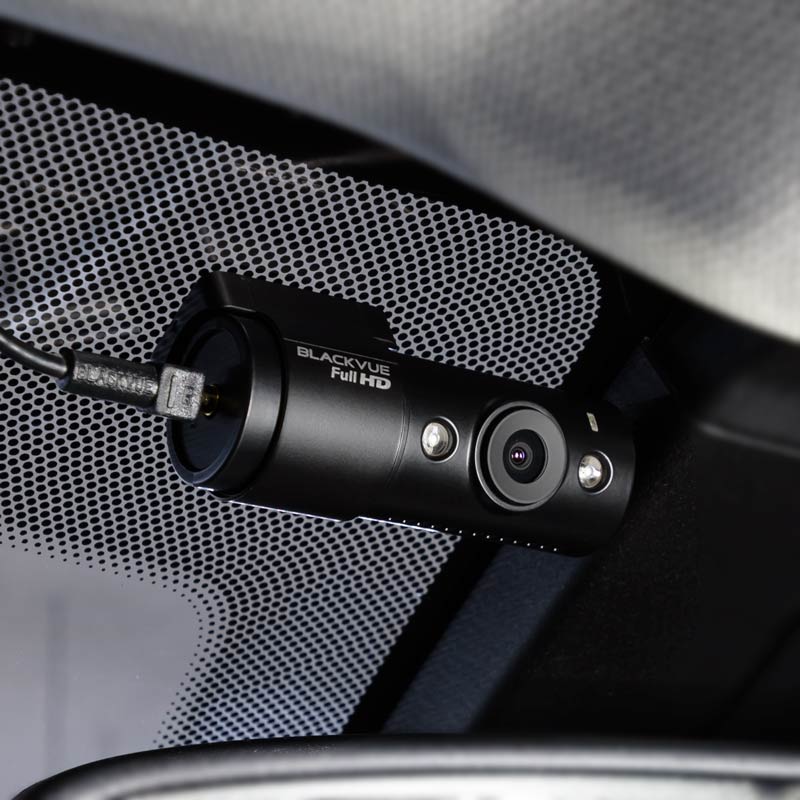

Discreet Full HD Interior Infrared Camera
The IR camera is connected to the front camera via 1.5m (4.9ft) coaxial cable. The Interior IR camera truly sees in the dark, even pitch-black lighting conditions, thanks to its integrated infrared LED light that activates automatically based on the ambient light.
High Frame Rate for Extra Fluidity
The advantage of 60FPS video capture
The front camera records extra fluid videos at 60 frames per second, keeping all details sharp even in fast action. With 60fps, motion blur is much reduced compared to 30fps. That means your BlackVue can better capture details–like license plates–even in fast-moving objects.
Note 1: the higher the image quality setting, the higher the bitrate and the bigger the file size. A bigger size will increase the time necessary to transfer a video file over Wi-Fi.
Note 2: Remote Live View using BlackVue Cloud is not affected by the image quality and framerate settings.
GPS, Wi-Fi and Optional LTE
GPS: visualize the location of your vehicle on the map during video playback and overlay speed on videos (can be hidden in settings).
Wi-Fi: lets you connect to your BlackVue with a smartphone or tablet. Wi-Fi also lets your BlackVue connect to BlackVue Cloud via any home or mobile Wi-Fi hotspot (router).
LTE: connect the optional LTE connectivity module* via the USB port for the best Cloud experience.
Set up (easily) and forget
BlackVue dashcams are very easy to install. Attach the front unit to the windshield behind the rear view mirror with the provided double-sided tape.
This way, the dashcam is invisible to the driver’s eye. Simply plug the power cords into the cigarette lighter / accessory power socket of your vehicle and it will automatically start recording as you turn ignition on (no need to push any button).
Once set, you can forget about it, knowing it will reliably record your drive.
Your videos are safe
Event Files Overwrite Protection: dashcams record in a loop, overwriting older files when the memory is full. BlackVue can prevent Event files (triggered manually or by impacts) overwriting. Up to fifty (50) files can be protected this way. You can choose to allow new Event files to overwrite past Event files, thus keeping the latest fifty.
Adaptive Format-Free File Management: this BlackVue-developed file system improves recording stability and requires less microSD card formatting.
SD Card Failure Alert: your BlackVue detects as soon as the microSD card fails and warns you with a “Please check SD card” voice alert.
Built-in Impact & Motion Detection
Automatically tags important files
While driving, your BlackVue detects impacts and sudden changes in speed. While parked, it also detects movements*.
Use the filters in the BlackVue App and Viewer
All videos are tagged (Normal, Event, Parking Mode motion or time lapse), so that you can easily find the relevant ones in the BlackVue Viewer for Windows and Mac OS or the BlackVue App for Android and iOS.
Programmable proximity sensor
Toggle audio recording ON and OFF by simply waving your hand in front of it. The sensor can also be configured to trigger Manual Event videos in the settings.
Turn Wi-Fi ON/OFF with the push of a button. All actions are confirmed by a voice prompt.
Manage Videos Easily with the BlackVue App and Viewer
The BlackVue App (iOS/Android) and Viewer (Windows/Mac OS) are free to download and use.
Both allow you to change settings and review videos sorted by time and type (Normal/Event/Parking).
With the BlackVue App, connect via Wi-Fi to your dashcam to retrieve videos on the spot.
Me and My Car. Connected.
Connect to your BlackVue anytime, from anywhere in the world with BlackVue Cloud.
Enjoy remote Live View and Push Notifications to your phone.
Back up important videos to the Cloud remotely.
Play and download videos from your dashcam’s memory or the Cloud from anywhere.
LTE Connectivity Module (Optional)
The CM100LTE connects to your compatible BlackVue X Series dashcam to provide easy 4G LTE connectivity. All you need is a valid Nano SIM card. The CM100LTE connects via the USB port of your dashcam. Your BlackVue powers the module and automatically accesses the Cloud when the module is plugged in.
Note: when purchasing, make sure the CM100LTE you choose is compatible with your mobile carrier’s network. Not compatible with DR590X Series.
Tamper-Proof Case (Optional)
The BTC-1C is a special-purpose mount designed to prevent tampering.
It replaces your dashcam’s original mount. The side cover, fastened by two hex screws, blocks the access to the microSD card and the cable connectors.
- Locks the dashcam’s angle via an hex screw to prevent rotation.
- Blocks the access to the microSD card slot.
- Protects against the unplugging of the power, video, and USB cables.
- Front Camera
- Interior IR Camera
- Cigarette lighter power cable
- Hardwiring power cable
- Double-sided Tape for the Mounting Bracket
- microSD Card
- microSD Card Reader
- Interior camera connection cable (1.5m)
- Cable Clips(8EA)
- Quick Start
- Pry tool
|Memory Capacity - 32GB||Image Quality - Extreme - Resolution - 1 HR 50 MIN|
|Memory Capacity - 32GB||Image Quality - Highest - Resolution - 2 HR 50 MIN|
|Memory Capacity - 32GB||Image Quality - High - Resolution - 3 HR 40 MIN|
|Application||BlackVue Application (Android 5.0 or higher, iOS 9.0 or higher)|
|Others||Adaptive Format-Free File Management System|
|Certifications||Front: FCC, CE, RoHS, Telec, WEEE, IC , Rear: FCC, CE, RoHS, WEEE|
|software||BlackVue Viewer * Windows 7 or higher and Mac Yosemite OS X (10.10) or higher|
|Power Consumption Hour||Normal Mode (WiFi On / GPS On / 2CH) : 395mA / hour , Normal Mode (WiFi Off / GPS On / 2CH) : 360mA / hour , Parking Mode (WiFi On / GPS Off / 2CH) : 340mA / hour , Parking Mode (WiFi Off / GPS Off / 2CH) : 305mA / hour , * Approx. 40mA increase in current when IR LEDs are ON. * Actual power consumption may vary depending on use conditions and environment.|
|Backup Battery||Built-in supercapacitor|
|Input Power||DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC)|
|High Temp Cut Off||Approx. 85 °C (185 °F)|
|Storage Temperature||-20 °C − 90 °C (-4 °F − 194 °F )|
|Operation Temperature||-20 °C − 85 °C (-4 °F − 185 °F)|
|Rear Camera IR Illumination||940 nm, 2 Infrared (IR) Lights|
|Button||Button: Wi-Fi ON/OFF (Tap) , Proximity sensor: Mic ON/OFF / Trigger Manual Recording / OFF (configurable)|
|Impact Sensor||3-Axis Acceleration Sensor|
|LED Indicators||Front: Recording LED, GPS/BT LED, LTE/Wi-Fi LED, Front Security LED, Proximity Sensing indicator LED , Rear: Rear Security LED|
|GPS||Built-in (Dual Band : GPS, GLONASS)|
|Video File Extension||MP4|
|Wi-Fi||Built-in (802.11 b.g.n)|
|SD Card Failure Alert||YES|
|Format Free||YES (Adaptive)|
|Event File Overwrite Protection||YES (up to 50)|
|Image Quality and Bitrate Front/Rear||Highest (Extreme): 25+10 Mbps , Highest: 12+10 Mbps , High: 10+8 Mbps , Normal: 8+6 Mbps|
|Video Codec||H.264 (AVC)|
|Resolution Frame Rate||Front / Rear - Full HD @60fps – Full HD @30fps * Frame rate may vary during Wi-Fi streaming.|
|Viewing Angle||Front: Diagonal 139°, Horizontal 116°, Vertical 61° , Rear: Diagonal 145°, Horizontal 118°, Vertical 59°|
|Parking Mode||YES (with 3-wire hardwiring cable – included)|
|Parking Mode Event Voice Notifications||YES|
|Imaging Sensor||Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1MP) Rear: CMOS Sensor (Approx. 2.1MP)|
|Memory Capacity - 32GB||Image Quality - Normal Resolution - 4 HR 40 MIN|
|Recording Modes||Normal, Event (Impact Detection / Speed Limit / Manual), Parking Mode (Impact+Region-based Motion Detection, Timelapse+Events)|
|Memory Support||microSD card up to 256GB|
|Rear Camera Connection||Coaxial cable|
|Product Dimensions||Front: W 118.5 mm (4.67″) x H 36 mm (1.42″) / 105 g (3.70 oz) , Rear: W 67.4 mm (2.65″) x H 25 mm (0.98″) / 26 g (0.92 oz)|
|Highlights||Full HD (Front + Interior IR Cam), Cloud, Wi-Fi, GPS, Dual Sony Sensors, External LTE Module (Optional)|
|Model Name||DR750X-2CH IR|
|Dimensions||21 × 15 × 14 cm|
|MEMORY CAPACITY||32GB, 64GB, 128GB, 256GB|
