Capture everything front and rear

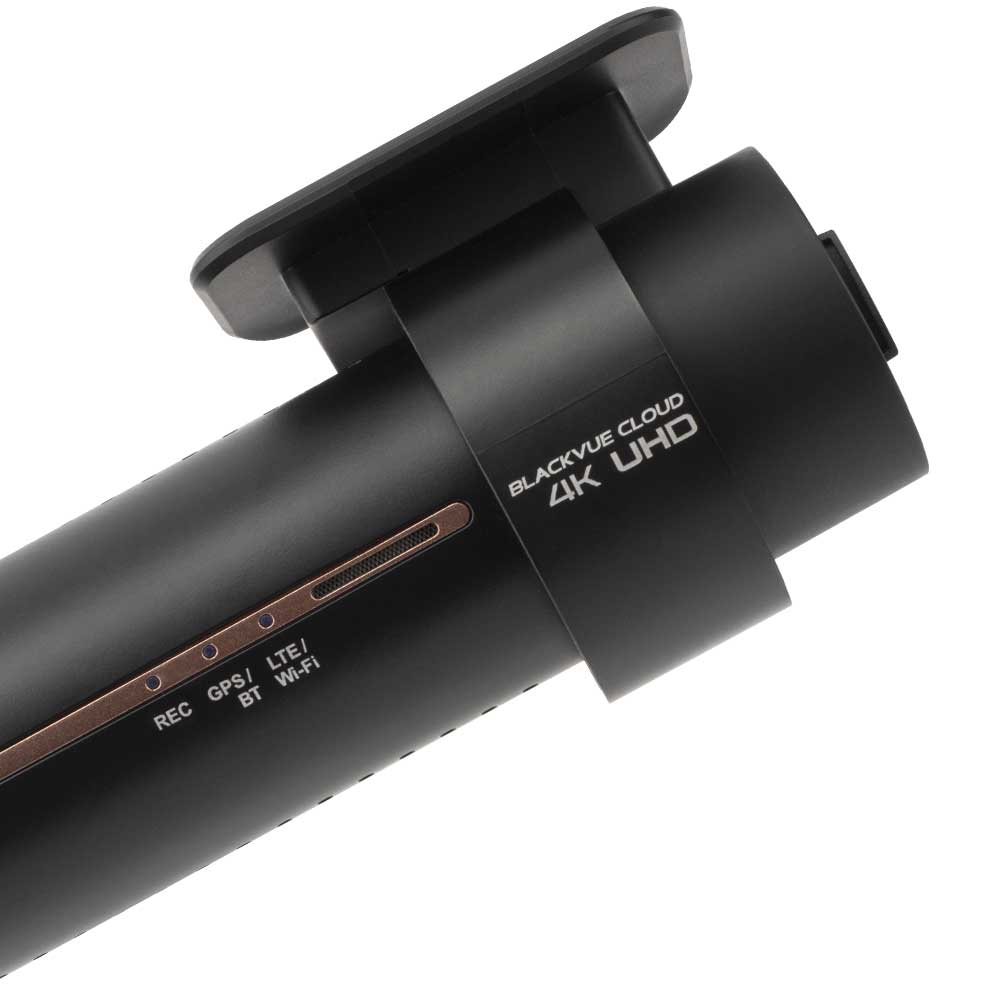

Front camera: 8 megapixels CMOS sensor recording in 4K Ultra High Definition (3840×2160) at 30FPS.
Rear camera: 2.1 megapixels Sony STARVIS™ recording in Full HD (1920×1080) at 30FPS.
The front camera’s ultra-wide 162-degree angle takes full advantage of the 4K UHD resolution. The rear camera records in Full HD at a 139-degree angle with outstanding low-light sensitivity.
Native Parking Mode with built-in voltage monitor to protect your vehicle battery (hardwiring cable included).
With the free BlackVue Cloud service, check on your car from anywhere, anytime.
Discover the 4K difference
4K in a dashcam is not a gimmick. It is a game-changer.
It is not about playing videos on a giant screen–although you could do that too. It’s about providing video proof.
A dashcam is only as good as its ability to capture crucial details–usually license plate numbers.
The 8-megapixel 4K UHD sensor does just that by capturing 4 times as many pixels as in Full HD.
And with its fast shutter speed, details are frozen in place.
Just pause and zoom in.
No need to sacrifice recording time
With bigger resolution come bigger files…unless you have better compression.
High Efficiency Video Coding (HEVC/H.265) is the standard in 4K video broadcasting and streaming.
With HEVC, you get great-looking 4K videos but same recording time as a regular Full HD dashcam.
Who said you can’t have it all?
Fast Wi-Fi, GPS and Optional LTE
GPS: visualize the location of your vehicle on the map during video playback and overlay speed on videos (can be hidden in settings).
Wi-Fi: connect to your BlackVue with a smartphone or tablet and download files at blazing speed. Wi-Fi also lets your BlackVue connect to BlackVue Cloud via any home or mobile Wi-Fi hotspot (router).
LTE: connect the optional LTE connectivity module* via the USB port for the best Cloud experience.
Native Parking Mode
Hardwiring cable included
DR900X Series can be hardwired to your vehicle’s fuse panel for Parking Mode, without requiring optional accessories. The dashcam will switch to Parking Mode automatically when vehicle ignition is turned off. Voltage cutoff and timer can be set in the BlackVue App.
Parking Mode accessories support
DR900X Series is also compatible with all BlackVue Parking Mode Kits and Batteries.
Set up (easily) and forget

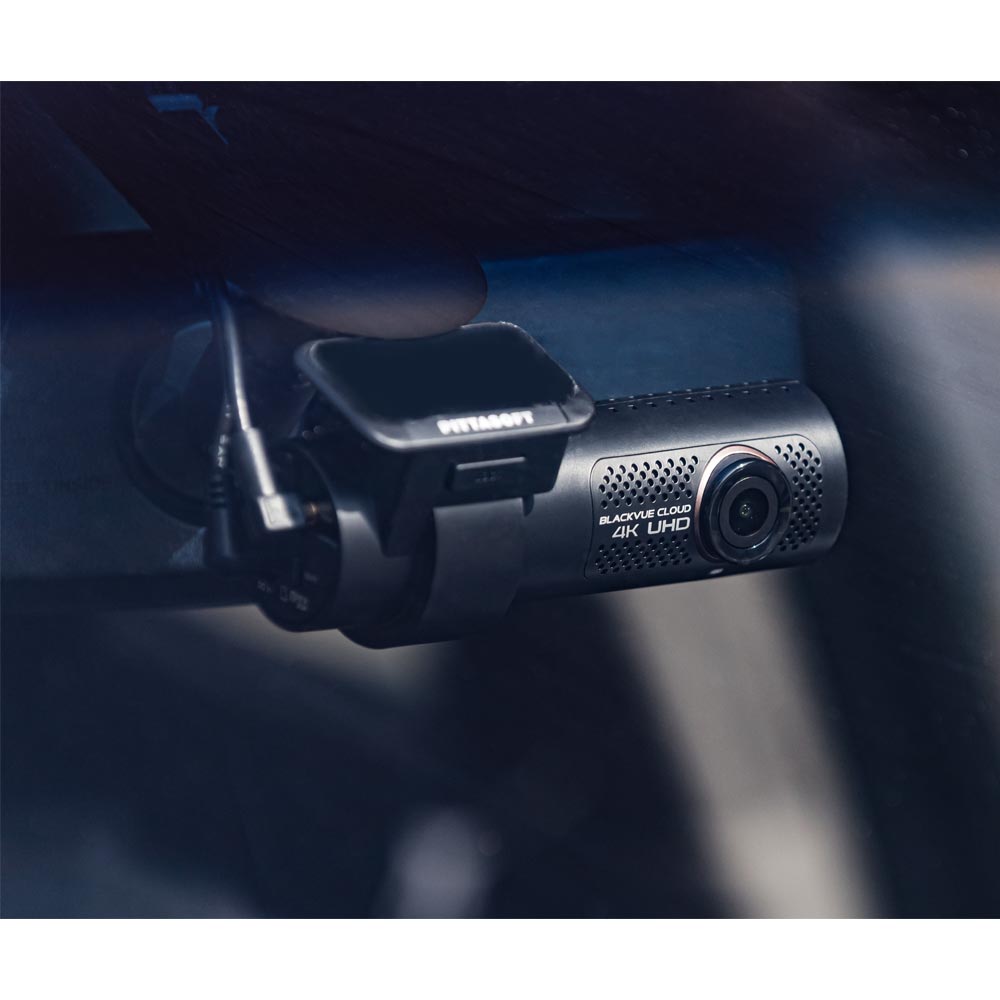

BlackVue dashcams are very easy to install. Attach the front unit to the windshield behind the rear view mirror with the provided double-sided tape.
This way, the dashcam is invisible to the driver’s eye. Simply plug the power cords into the cigarette lighter / accessory power socket of your vehicle and it will automatically start recording as you turn ignition on (no need to push any button).
Once set, you can forget about it, knowing it will reliably record your drive.
Your videos are safe
Event Files Overwrite Protection: dashcams record in a loop, overwriting older files when the memory is full. BlackVue can prevent Event files (triggered manually or by impacts) overwriting. Up to fifty (50) files can be protected this way. You can choose to allow new Event files to overwrite past Event files, thus keeping the latest fifty.
Adaptive Format-Free File Management: this BlackVue-developed file system improves recording stability and requires less microSD card formatting.
SD Card Failure Alert: your BlackVue detects as soon as the microSD card fails and warns you with a “Please check SD card” voice alert.
Built-in Impact & Motion Detection
Automatically tags important files
While driving, your BlackVue detects impacts and sudden changes in speed. While parked, it also detects movements*.
Use the filters in the BlackVue App and Viewer
All videos are tagged (Normal, Event, Parking Mode motion or time lapse), so that you can easily find the relevant ones in the BlackVue Viewer for Windows and Mac OS or the BlackVue App for Android and iOS.
Sleek Interface
Programmable proximity sensor
Toggle audio recording ON and OFF by simply waving your hand in front of it. The sensor can also be configured to trigger Manual Event videos in the settings.
Wi-Fi button
Turn Wi-Fi ON/OFF with the push of a button. All actions are confirmed by a voice prompt.
Manage Videos Easily with the BlackVue App and Viewer
The BlackVue App (iOS/Android) and Viewer (Windows/Mac OS) are free to download and use.
Both allow you to change settings and review videos sorted by time and type (Normal/Event/Parking).
With the BlackVue App, connect via Wi-Fi to your dashcam to retrieve videos on the spot.
BlackVue Cloud
Me and My Car. Connected.
Connect to your BlackVue anytime, from anywhere in the world with BlackVue Cloud.
Enjoy remote Live View and Push Notifications to your phone.
Back up important videos to the Cloud remotely.
Play and download videos from your dashcam’s memory or the Cloud from anywhere.
LTE Connectivity Module (Optional)
The CM100LTE connects to your compatible BlackVue X Series dashcam to provide easy 4G LTE connectivity. All you need is a valid Nano SIM card. The CM100LTE connects via the USB port of your dashcam. Your BlackVue powers the module and automatically accesses the Cloud when the module is plugged in.
Note: when purchasing, make sure the CM100LTE you choose is compatible with your mobile carrier’s network. Not compatible with DR590X Series.
Tamper-Proof Case (Optional)
The BTC-1C is a special-purpose mount designed to prevent tampering.
It replaces your dashcam’s original mount. The side cover, fastened by two hex screws, blocks the access to the microSD card and the cable connectors.
Triple protection
- Locks the dashcam’s angle via an hex screw to prevent rotation.
- Blocks the access to the microSD card slot.
- Protects against the unplugging of the power, video and USB cables.
What's Included
- Front Camera
- Rear Camera
- Rear camera connection cable (6m / 19.68ft)
- Hardwiring power cable
- Cigarette lighter power cable
- microSD card
- microSD card reader
- Quick start guide
- Cable clips (8EA)
- Double-sided tape for the Mounting Brackets
- Pry tool
| Specifications | |
|---|---|
| Power Consumption Hour | Normal Mode (WiFi On / GPS On / 2CH) : 450mA / hour , Normal Mode (WiFi Off / GPS On / 2CH) : 410mA / hour , Parking Mode (WiFi On / GPS Off / 2CH) : 365mA / hour , Parking Mode (WiFi Off / GPS Off / 2CH) : 325mA / hour * Actual power consumption may vary depending on use conditions and environment. |
| Backup Battery | Built-in supercapacitor |
| Input Power | DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC) |
| High Temp Cut Off | Approx. 75℃ (167°F) |
| Operation Temperature | 20 °C − 70 °C (-4 °F − 158 °F) |
| Storage Temperature | -20 °C − 90 °C (-4 °F − 194 °F ) |
| Button | Button: Wi-Fi ON/OFF (Tap) , Proximity sensor: Mic ON/OFF / Trigger Manual Recording / OFF (configurable) |
| LED Indicators | Front: Recording LED, GPS LED, LTE/Wi-Fi LED, Front Security LED, Proximity Sensing indicator LED Rear: Rear Security LED |
| Microphone | Built-in |
| Speaker | Built-in |
| Impact Sensor | 3-Axis Acceleration Sensor |
| GPS | Built-in (Dual Band : GPS, GLONASS) |
| Wi-Fi | Built-in (802.11 a.b.g.n.ac) |
| Cloud Compatible | YES |
| Video File Extension | MP4 |
| Scheduled Reboot | YES |
| SD Card Failure Alert | YES |
| Event File Overwrite Protection | YES (up to 50) |
| Format Free | YES (Adaptive) |
| Image Quality and Bitrate Front/Rear | Highest (Extreme): 25+10 Mbps , Highest: 12+10 Mbps , High: 10+8 Mbps , Normal: 8+6 Mbps |
| Video Codec | H.265 (HEVC), H.264 (AVC) |
| Resolution Frame Rate | Front / Rear -4K UHD (3840×2140) @30fps / Full HD (1920×1080) @30fps *Frame rate may vary during Wi-Fi streaming |
| Viewing Angle | Front: Diagonal 162°, Horizontal 136°, Vertical 77° , Rear: Diagonal 139°, Horizontal 116°, Vertical 61° |
| Imaging Sensor | Front: 8MP CMOS Sensor , Rear: Sony STARVIS™ CMOS Sensor (Approx. 2.1MP) |
| Parking Mode Event Voice Notifications | YES |
| Memory Support | microSD card up to 256GB |
| Recording Modes | Normal, Event (Impact Detection / Speed Limit / Manual), Parking Mode (Impact+Region-based Motion Detection, Timelapse+Events) |
| Parking Mode | YES (with 3-wire hardwiring cable – included) |
| Rear Camera Connection | Coaxial cable |
| Product Dimensions | Front: W 118.5 mm (4.67″) x H 36 mm (1.42″) / 106 g (3.74 oz) , Rear: W 67.4 mm (2.65″) x H 25 mm (0.98″) / 25 g (0.88 oz) |
| Highlights | 4K UHD (Front) + Full HD (Rear), HEVC (H.265), 2.4-5GHz Wi-Fi, Cloud, External LTE Module (Optional) |
| Channel | 2CH |
| Model Name | DR900X-2CH 4K UHD DASHCAM |
| PACKAGE INFO | |
| MEMORY CAPACITY | 32GB, 64GB, 128GB, 256GB |
| Weight | 1 kg |
| Dimensions | 21 × 15 × 14 cm |
| Specifications | |
| Certifications | Front: FCC, CE, RoHS, Telec, WEEE, IC , Rear: FCC, CE, RoHS, WEEE |
| software | BlackVue Viewer * Windows 7 or higher and Mac Yosemite OS X (10.10) or higher |
| Application | BlackVue Application (Android 5.0 or higher, iOS 9.0 or higher) |
| Others | Adaptive Format-Free File Management System |
| LTE | External (Optional) |
| Recording Time | |
| Memory Capacity - 64GB | Image Quality - Extreme - Resolution - 3 HR 40 MIN |
| Memory Capacity -64GB | Image Quality - Highest - Resolution - 5 HR 40 MIN |
| Memory Capacity - 64GB | Image Quality - High - Resolution - 7 HR 20 MIN |
| Memory Capacity - 64GB | Image Quality - Normal - Resolution 9 HR 20 MIN |
