Simple Dual Full HD Wi-Fi Dashcam
Outstanding Dual Full HD quality in a small form factor, featuring Sony’s STARVIS™ image sensor in the front camera for better clarity in low light.
The DR590X-2CH records both front and back or interior of your vehicle in Full HD 1080p.
Built-in Wi-Fi: easily adjust settings and transfer videos to your phone with the BlackVue App.
Dual Full HD Wi-Fi Dashcam
Full HD 1080p front and rear @30fps: the DR590X-2CH records Full HD 1080p videos of the front and back of your car at 30 frames per second, in a 139-degree wide view angle. With the front camera’s Sony STARVIS imaging sensor, you get awesome image clarity day and night.
Built-in Wi-Fi: connect to your dashcam with the BlackVue App to adjust settings, check the view from the front and rear cameras or transfer files to your mobile device.
STARVIS is a trademark of Sony Corporation.
With included Hardwiring cable
DR590X can be hardwired to your vehicle’s fuse panel for Parking Mode with the included Hardwiring cable. The dashcam will switch to Parking Mode automatically when vehicle ignition is turned off. Voltage cutoff and timer can be set in the BlackVue App.
Parking Mode accessories support
DR590X Series is also compatible with all BlackVue Parking Mode Kits and Batteries.
Built-in Wi-Fi and Optional Connectivity
The DR590X-2CH features built-in Wi-Fi to let you connect with the BlackVue App. A button lets you turn Wi-Fi on/off.
Additionally, you can configure the Wi-Fi activation behavior in the settings (Auto Turn On, Auto Turn Off).
The USB port lets you connect a GPS receiver or LTE-M and GPS receiver combo module.
Your videos are safe
Event Files Overwrite Protection: dashcams record in a loop, overwriting older files when the memory is full. BlackVue can prevent Event files (triggered manually or by impacts) overwriting. Up to fifty (50) files can be protected this way. You can choose to allow new Event files to overwrite past Event files, thus keeping the latest fifty.
Adaptive Format-Free File Management: this BlackVue-developed file system improves recording stability and requires less microSD card formatting.
SD Card Failure Alert: your BlackVue detects as soon as the microSD card fails and warns you with a “Please check SD card” voice alert.
Built-in Impact & Motion Detection
Automatically tags important files
While driving, your BlackVue detects impacts and sudden changes in speed. While parked, it also detects movements*.
Use the filters in the BlackVue App and Viewer
All videos are tagged (Normal, Event, Parking Mode motion or time lapse), so that you can easily find the relevant ones in the BlackVue Viewer for Windows and Mac OS or the BlackVue App for Android and iOS.
External GPS Receiver (Optional)
The External GPS Receiver connects to the USB port to add speed and location data to your videos.
Speed: speed data–in Km/h or Mph–will be overlaid in the video (can be turned off in the settings).
Location: you can visualize the location of your vehicle in the BlackVue Viewer’s Map during video playback.
External LTE-M / GPS Combo Module (TBD)
Enjoy BlackVue Cloud Lite with this LTE-M connectivity module. The CM100GLTE-M connects to your compatible BlackVue X Series dashcam via the micro USB port to provide easy LTE-M connectivity. The SIM card and data plan are included. When plugged in, your BlackVue powers the module and once registered, automatically accesses the Cloud.
Manage Videos Easily with the BlackVue App and Viewer
The BlackVue App (iOS/Android) and Viewer (Windows/Mac OS) are free to download and use.
Both allow you to change settings and review videos sorted by time and type (Normal/Event/Parking).
With the BlackVue App, connect via Wi-Fi to your dashcam to retrieve videos on the spot.
Set up (easily) and forget
BlackVue dashcams are very easy to install. Attach the front unit to the windshield behind the rear view mirror with the provided double-sided tape.
This way, the dashcam is invisible to the driver’s eye. Simply plug the power cords into the cigarette lighter / accessory power socket of your vehicle and it will automatically start recording as you turn ignition on. Once set, you can forget about it, knowing it will reliably record your drive.

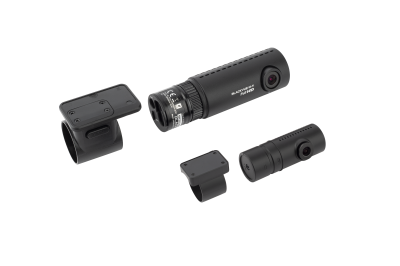

- Front Camera
- Rear Camera
- Rear camera connection cable (6m / 19.68ft)
- Cigarette lighter power cable
- microSD Card
- microSD Card adapter
- Quick start guide
- Cable clips (5EA)
- Double-sided tapes for the Mounting Brackets
- Hardwiring power cable
- External GPS (Optional)
|LTE||External (Optional - Cat.M1)|
|Memory Capacity - 32 GB||Image Quality - Highest - Resolution - 2 HR 50 MIN|
|Memory Capacity - 32 GB||Image Quality - High Resolution - 3 HR 40 MIN|
|Application||BlackVue Application (Android 5.0 or higher, iOS 9.0 or higher)|
|software||BlackVue Viewer * Windows 7 or higher and Mac Yosemite OS X (10.10) or higher|
|Certifications||Front: FCC, CE, RoHS, Telec, WEEE, IC , Rear: FCC, CE, RoHS, WEEE|
|Input Power||DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND/Yellow: B+/Red: ACC)|
|Power Consumption Hour||Normal Mode (WiFi On/GPS On): 370mA/hour , Normal Mode (WiFi Off/GPS On): 330mA/hour , Parking Mode (WiFi On/GPS Off): 340mA/hour , Parking Mode (WiFi Off/GPS Off): 300mA/hour When connected to CM100GLTE-M (Optional) , Normal Mode (WiFi On/GPS On): 440mA/hour , Normal Mode (WiFi Off/GPS On): 400mA/hour , Parking Mode (WiFi On/GPS Off): 370mA/hour , Parking Mode (WiFi Off/GPS Off): 330mA/hour|
|Backup Battery||Built-in supercapacitor|
|Storage Temperature||-20℃ – 80℃ (-4°F – 176°F)|
|High Temp Cut Off||Approx. 70℃ (158°F)|
|Operation Temperature||-20℃ – 70℃ (-4°F – 158°F)|
|Button||Button: Wi-Fi ON/OFF|
|LED Indicators||Front: Recording LED, GPS LED, LTE/Wi-Fi LED, Front Security LED , Rear: Rear Security LED|
|Impact Sensor||3-Axis Acceleration Sensor|
|GPS||External (Optional – Dual Band: GPS, GLONASS)|
|Video File Extension||MP4|
|Wi-Fi||Built-in (802.11 b.g.n)|
|Cloud Compatible||Cloud Lite|
|Event File Overwrite Protection||YES|
|SD Card Failure Alert||YES|
|Format Free||YES (Adaptive)|
|Video Codec||H.264 (AVC)|
|Imaging Sensor||Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1MP) , Rear: CMOS Sensor (Approx. 2MP)|
|Viewing Angle||Front: Diagonal 139°, Horizontal 116°, Vertical 61° , Rear: Diagonal 136.8°, Horizontal 111.3°, Vertical 57.5°|
|Image Quality and Bitrate Front/Rear||Highest: 12+10 Mbps , High: 10+8 Mbps , Normal: 8+6 Mbps|
|Resolution Frame Rate||Front / Rear - Full HD @30fps – Full HD @30fps|
|Parking Mode||YES (with optional 3-wire hardwiring cable)|
|Parking Mode Event Voice Notifications||YES|
|Recording Modes||Normal, Event (Impact Detection / Speed Limit), Parking Mode (Motion+Impact Detection)|
|Memory Support||microSD card up to 256GB|
|Rear Camera Connection||Analog cable|
|Others||Adaptive Format-Free File Management System|
|Product Dimensions||Front: W 111.8 mm (4.40″) x H 34 mm (1.34″) / 87.8 (3.10 oz) , Rear: W 67.4 mm (2.55″) x H 25 mm (0.98″) / 20.3 g (0.72 oz)|
|Highlights||Full HD (Front + Rear), Wi-Fi, External GPS, Sony Sensor, External LTE Module (Optional)|
|GPS RECEIVER||External GPS included, External GPS not included|
|MEMORY CAPACITY||32GB, 64GB, 128GB, 256GB|
|Dimensions||21 × 15 × 14 cm|
|Memory Capacity - 32 GB||Image Quality - Normal Resolution - 4 HR 40 MIN|
