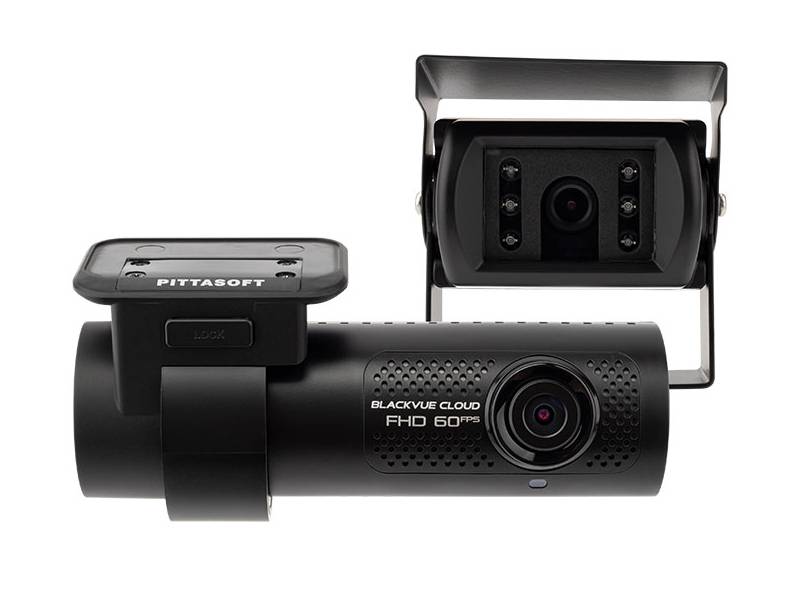

BlackVue DR750X-2CH TRUCK, Full HD Cloud Dashcam with External Waterproof Infrared Rear Camera. Ideal for trucks, vans and commercial vehicles.
Categories Cloud Dashcam, Dashcams, Truck Dashcam
Tags: 2-Channel Dashcam, BlackVue App, BlackVue Viewer, Built-in GPS, Cloud dashcam, Fleet Management, Full HD, IR Camera, Parking mode, Truck, Waterproof rear camera, Wi-Fi
The Perfect Dashcam for Trucks and Heavy Vehicles
The external waterproof rear cam with embedded IR lights and up to 20m coaxial cable is ideal for most large vehicles.
Catch detailed footage of the front surroundings of your vehicle at 1080p Full HD 60FPS and rear at 1080p Full HD 30FPS.
The front camera has a 139° wide angle of view and a cutting-edge Sony STARVIS CMOS sensor and the rear camera has a 120° angle of view and 2.1MP CMOS sensor augmented by 6 IR LEDs for clarity in total darkness.
Native Parking Mode
Hardwiring cable included
DR750X Series can be hardwired to your vehicle’s fuse panel for Parking Mode, without requiring optional accessories. The dashcam will switch to Parking Mode automatically when vehicle ignition is turned off. Voltage cutoff and timer can be set in the BlackVue App.
Parking Mode accessories support
DR750X Series is also compatible with all BlackVue Parking Mode Kits and Batteries.
INFRARED EXTERNAL REAR CAMERA
WITH RUGGED METAL WATERPROOF CASING
With its metal waterproof casing the rear camera of the DR750X-2CH TRUCK is built to withstand most weather conditions.
It is designed to be installed at the rear of truck or heavy vehicles.
We recommend to secure it in place on a flat surface using the provided screws.
The luminosity sensor detects ambient brightness, activating automatically the six IR lights to help identify vehicles and objects even in the dark.
WATERPROOF COAXIAL CABLE
The 15m (and optional 20m) high-quality waterproof coaxial cable connects the front and rear cameras.
The waterproof rear camera and the coaxial cable are screwed together to provide tight and water-resistant connection.
Its length makes it ideal for trucks and trailers and guarantees a pristine image even over long distance.
Set up (easily) and forget
BlackVue dashcams are very easy to install. Attach the front unit to the windshield behind the rear view mirror with the provided double-sided tape. This way, the dashcam is invisible to the driver’s eye. The rear camera can be installed externally at the back of the vehicle and connected to the front unit with the included video cable.
Simply plug the power cords into the cigarette lighter / accessory power socket of your vehicle and it will automatically start recording as you turn ignition on (no need to push any button).
Once set, you can forget about it, knowing it will reliably record your drive.
GPS, Wi-Fi and Optional LTE
GPS: visualize the location of your vehicle on the map during video playback and overlay speed on videos (can be hidden in settings).
Wi-Fi: lets you connect to your BlackVue with a smartphone or tablet. Wi-Fi also lets your BlackVue connect to BlackVue Cloud via any home or mobile Wi-Fi hotspot (router).
LTE: connect the optional LTE connectivity module* via the USB port for the best Cloud experience.
Your videos are safe
Event Files Overwrite Protection: dashcams record in a loop, overwriting older files when the memory is full. BlackVue can prevent Event files (triggered manually or by impacts) overwriting. Up to fifty (50) files can be protected this way. You can choose to allow new Event files to overwrite past Event files, thus keeping the latest fifty.
Adaptive Format-Free File Management: this BlackVue-developed file system improves recording stability and requires less microSD card formatting.
SD Card Failure Alert: your BlackVue detects as soon as the microSD card fails and warns you with a “Please check SD card” voice alert.
Built-in Impact & Motion Detection
Automatically tags important files
While driving, your BlackVue detects impacts and sudden changes in speed. While parked, it also detects movements*.
Use the filters in the BlackVue App and Viewer
All videos are tagged (Normal, Event, Parking Mode motion or time lapse), so that you can easily find the relevant ones in the BlackVue Viewer for Windows and Mac OS or the BlackVue App for Android and iOS.
Programmable proximity sensor
Toggle audio recording ON and OFF by simply waving your hand in front of it. The sensor can also be configured to trigger Manual Event videos in the settings.
Turn Wi-Fi ON/OFF with the push of a button. All actions are confirmed by a voice prompt.
Manage Videos Easily with the BlackVue App and Viewer
The BlackVue App (iOS/Android) and Viewer (Windows/Mac OS) are free to download and use.
Both allow you to change settings and review videos sorted by time and type (Normal/Event/Parking).
With the BlackVue App, connect via Wi-Fi to your dashcam to retrieve videos on the spot.
Me and My Car. Connected.
Connect to your BlackVue anytime, from anywhere in the world with BlackVue Cloud.
Enjoy remote Live View and Push Notifications to your phone.
Back up important videos to the Cloud remotely.
Play and download videos from your dashcam’s memory or the Cloud from anywhere
LTE Connectivity Module (Optional)
The CM100LTE connects to your compatible BlackVue X Series dashcam to provide easy 4G LTE connectivity. All you need is a valid Nano SIM card. The CM100LTE connects via the USB port of your dashcam. Your BlackVue powers the module and automatically accesses the Cloud when the module is plugged in.
Note: when purchasing, make sure the CM100LTE you choose is compatible with your mobile carrier’s network. Not compatible with DR590X Series.
Tamper-Proof Case (Optional)
The BTC-1C is a special-purpose mount designed to prevent tampering.
It replaces your dashcam’s original mount. The side cover, fastened by two hex screws, blocks the access to the microSD card and the cable connectors.
- Locks the dashcam’s angle via an hex screw to prevent rotation.
- Blocks the access to the microSD card slot.
- Protects against the unplugging of the power, video, and USB cables.
- Front Camera
- External Rear Camera
- Cigarette lighter power cable
- Hardwiring power cable
- Cable Clips(8EA)
- Double-sided Tape and Screws for the Mounting Bracket
- microSD Card
- microSD Card Reader
- Rear Camera Connection Cable(15m waterproof)
- Quick Start Guide
- Pry tool
|Others||Adaptive Format-Free File Management System|
|Memory Capacity - 128GB||Image Quality - Extreme - Resolution - 7 HR 20 MIN|
|software||BlackVue Viewer * Windows 7 or higher and Mac Yosemite OS X (10.10) or higher|
|Application||BlackVue Application (Android 5.0 or higher, iOS 9.0 or higher)|
|Certifications||Front: FCC, CE, RoHS, Telec, WEEE, IC , Rear: FCC, CE, RoHS, WEEE|
|Input Power||DC 12V-24V (DC Plug (Ø3.5 x Ø1.35)) to Wires (Black: GND / Yellow: B+ / Red: ACC)|
|Power Consumption Hour||Normal Mode (WiFi On / GPS On / 2CH) : 395mA / hour , Normal Mode (WiFi Off / GPS On / 2CH) : 360mA / hour , Parking Mode (WiFi On / GPS Off / 2CH) : 340mA / hour , Parking Mode (WiFi Off / GPS Off / 2CH) : 305mA / hour , * Approx. 60mA increase in current when IR LEDs are ON. * Actual power consumption may vary depending on use conditions and environment.|
|High Temp Cut Off||Approx. 85 °C (185 °F)|
|Backup Battery||Built-in supercapacitor|
|Storage Temperature||-20 °C − 90 °C (-4 °F − 194 °F )|
|Operation Temperature||-20 °C − 85 °C (-4 °F − 185 °F)|
|Button||Button: Wi-Fi ON/OFF (Tap) , Proximity sensor: Mic ON/OFF / Trigger Manual Recording / OFF (configurable)|
|Rear Camera IR Illumination||940 nm, 6 Infrared (IR) Lights|
|LED Indicators||Front: Recording LED, GPS LED, LTE/Wi-Fi LED, Front Security LED, Proximity Sensing indicator LED Rear: Rear Security LED|
|Impact Sensor||3-Axis Acceleration Sensor|
|Wi-Fi||Built-in (802.11 b.g.n)|
|GPS||Built-in (Dual Band : GPS, GLONASS)|
|SD Card Failure Alert||YES|
|Video File Extension||MP4|
|Event File Overwrite Protection||YES (up to 50)|
|Resolution Frame Rate||Front / Rear - Full HD @60fps – Full HD @30fps * Frame rate may vary during Wi-Fi streaming|
|Format Free||YES (Adaptive)|
|Video Codec||H.264 (AVC)|
|Image Quality and Bitrate Front/Rear||Highest (Extreme): 25+10 Mbps , Highest: 12+10 Mbps , High: 10+8 Mbps , Normal: 8+6 Mbps|
|Viewing Angle||Front: Diagonal 139°, Horizontal 116°, Vertical 61° , Rear: Diagonal 120°, Horizontal 100°, Vertical 60°|
|Imaging Sensor||Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1MP) , Rear: CMOS Sensor (Approx. 2.1MP)|
|Parking Mode||YES (with 3-wire hardwiring cable – included)|
|Parking Mode Event Voice Notifications||YES|
|Recording Modes||Normal, Event (Impact Detection / Speed Limit / Manual), Parking Mode (Impact+Region-based Motion Detection, Timelapse+Events)|
|Rear Camera Connection||Waterproof coaxial cable|
|Memory Support||microSD card up to 256GB|
|Memory Capacity - 128GB||Image Quality - High Resolution - 15 HR 40 MIN|
|Product Dimensions||Front: W 118.5 mm (4.67″) x H 36 mm (1.42″) / 105g (3.70 oz) , Rear: W 70.0 mm (2.76″) x H 44.4 mm (1.75″) / 180 g (6.35 oz)|
|Highlights||Full HD (Front + External Waterproof IR Cam), Cloud, Wi-Fi, GPS, Dual Sony Sensors, External LTE Module (Optional)|
|Model Name||DR750X-2CH TRUCK|
|MEMORY CAPACITY||32GB, 64GB, 128GB, 256GB|
|Dimensions||27 × 20 × 24 cm|
|Memory Capacity - 128GB||Image Quality - Normal Resolution - 18 HR 40 MIN|
|Memory Capacity - 128GB||Image Quality - Highest - Resolution - 11 HR 20 MIN|
