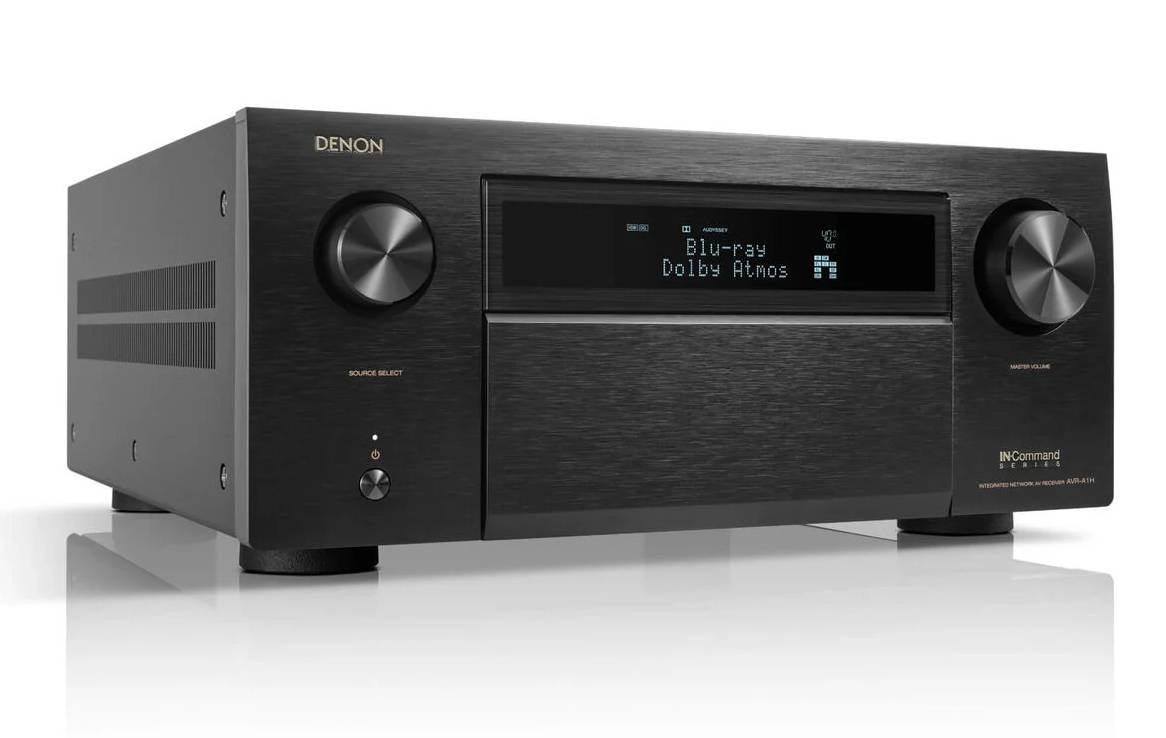

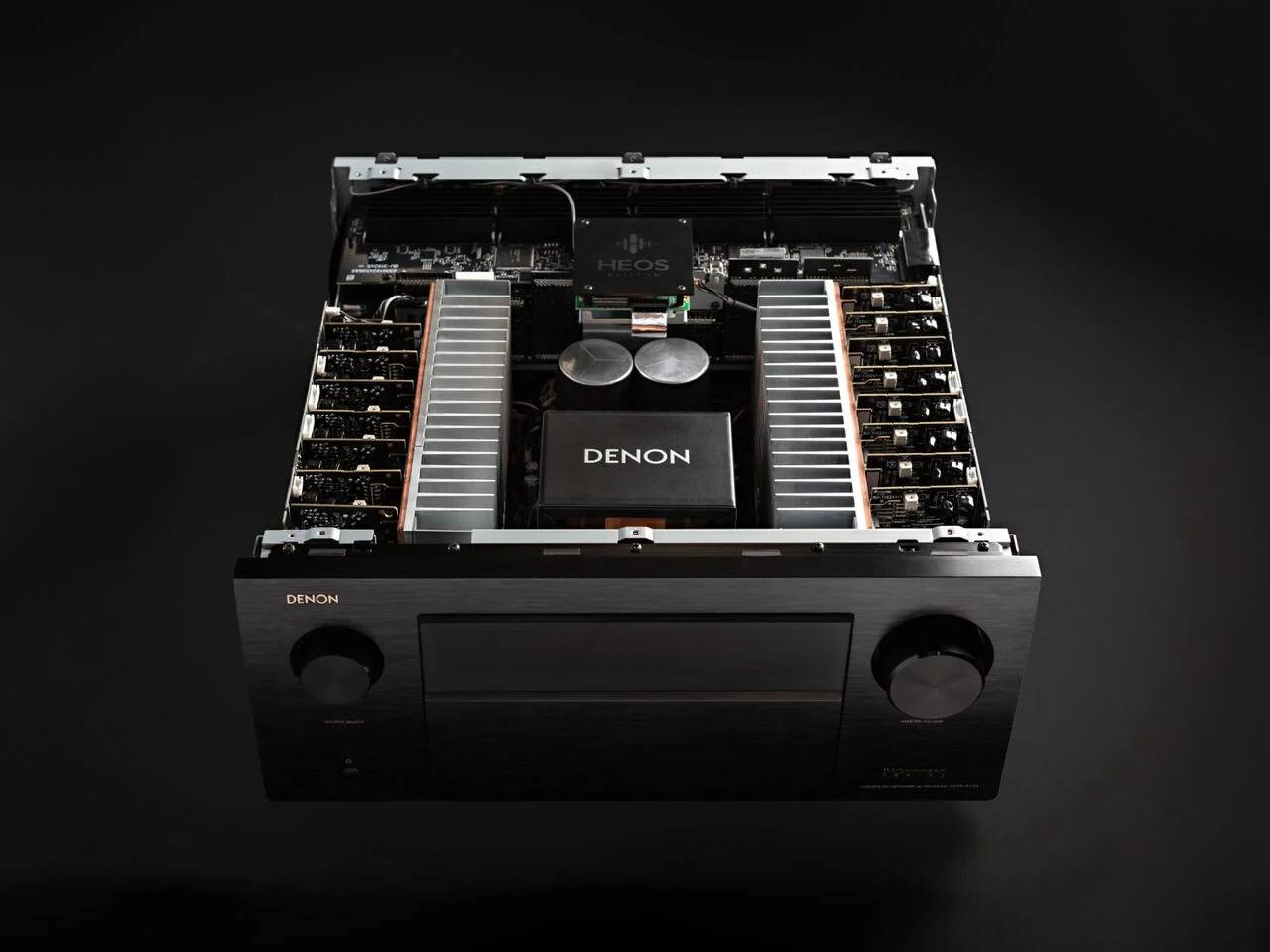

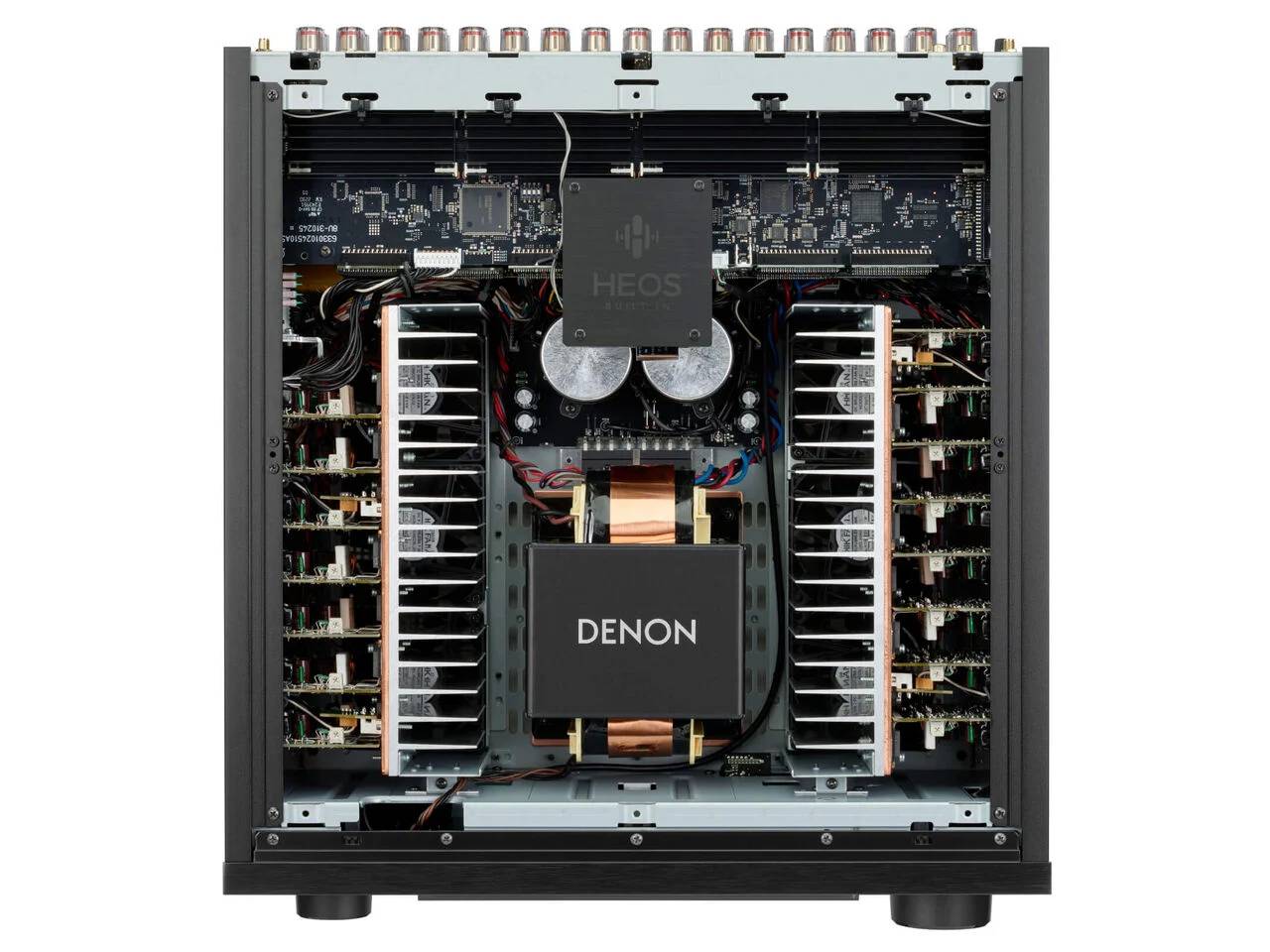

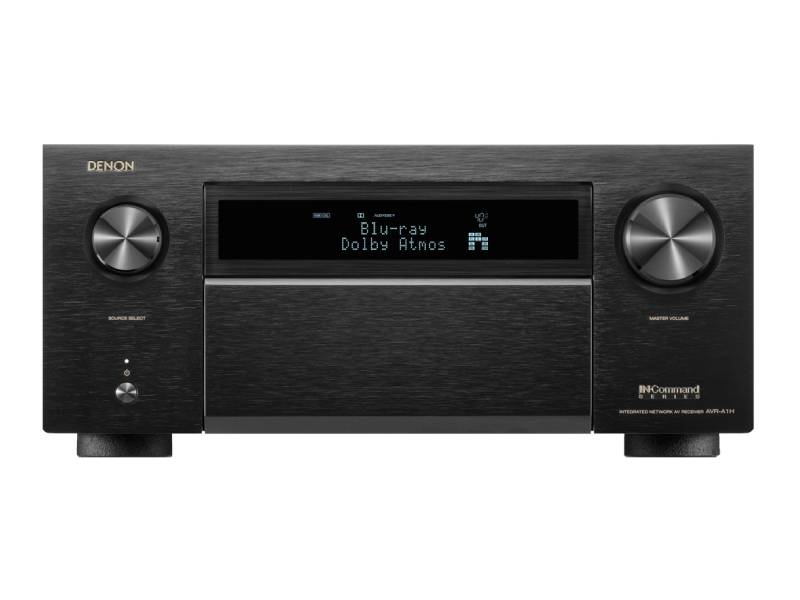

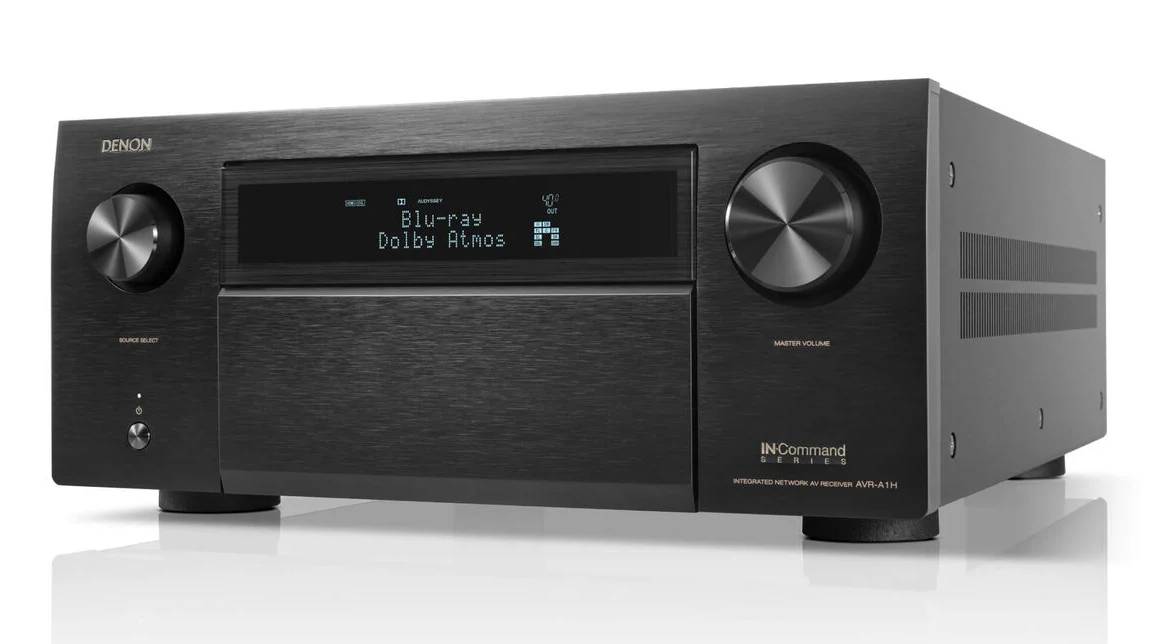

With 15 channels of amplification, our most powerful transformer, carefully selected parts, and hefty, high-rigidity construction, the AVR-A1H supports up to 9.4.6 configuration and delivers a professional theater experience in your home cinema.
Ultimate 3D audio experience
Experience a new level of 3D audio entertainment with capacity for up to a 9.4.6 speaker configuration.
Rediscover your collections
Engineering expertise allows you to hear your music and movie collections like never before.
Over 70 pounds of power
Weighing in at more than 70 pounds, the A1H powers 150W per channel.
Denon Heritage
Our flagship receiver evolves Denon’s signature sound design and was carefully tuned by the Denon Sound Master.
General | |
---|---|
Weight in LBS (Packaging) | 80 (TBD) |
Weight in LBS | 70.5 |
Maximum Dimensions Antenna: Horizontal: (W x D x H) in Inches Antenna: Vertical: (W x D x H) in Inches W/O Antenna: (W x D x H) in Inches | 17.1 x 19.6 x 7.7 ( 17.1 x 19.6 x 10.2 ) 【 17.1 x 19.4 x 7.7 】 |
Network Standby Consumption in W | Less than 2.0 |
CEC Standby Consumption in W | 0.5 |
Standby Consumption in W | 0.1 |
Power Consumption No-Sound (ECO On / Off) in W | 70W/125W |
Power Consumption in W | 900 |
Metal Front Panel | Yes |
System Remote Control | RC-1250 |
Pre-Programmed, Learnable, LCD Display | Yes, Yes, Yes |
Specifications | |
Power Output (6 ohm, 1 kHz, 10% 1ch Drive) | 260W |
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) | 190W |
Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive) | 150W |
Number of Power Amps | 15 |
Inputs Outputs | |
AM/FM Tuner | Yes |
USB Audio, Made for iPod, Made for iPhone | Yes, No, No |
Front Inputs: Audio, Composite, Digital (Opt), HDMI, USB | No, No, No, No, Yes |
Multi-Room Speaker Terminal | Assignable |
Number of Speaker Terminals | 17 |
Speaker A / B | Assignable |
Bi-amp Drive | Assignable |
Subwoofer Out | 4 (independent) |
Speaker Terminal: Gold-Plated Screw, Regular Screw | Yes, No |
Multichannel Preout | Yes (17.4) |
Multi-Room Out: Analog, Digital | 2, No |
Digital In: Optical, Coaxial | 2, 2 |
Phono (MM) In | Yes |
Analog In, Out | 5 (1x XLR), No |
Multi-Room Video Out: Video, HDMI | No, Yes |
HDMI In, Out | 7, 3 |
Others | |
Sleep Timer | Yes |
Auto Power Off | Yes |
ECO Mode | Yes |
Bass Sync | Yes |
Optimized Bass Redirection | Yes |
Variable Crossover | Yes |
Quick Select Plus, Quick Select | Yes, No |
Setup Assistent | Yes |
GUI Languages | 3 |
Front Display | 2-Line FLD |
Auto Speaker Setup by Microphone | Audyssey MultEQ XT32, Dirac Live (upgrade) |
Multi-room CI | |
HDMI Diagnostics | Yes |
DC Trigger Output | 2 |
Remote In / Out | Yes, Yes |
IP Control, RS232 Control, Web Control, App Control | Yes, Yes /Yes, Yes |
Zone HDMI Output from HDMI Source | Yes |
Zone Audio Output: Speaker, Pre-Out | Yes, Yes |
Zone Audio Source: HDMI; Optical, Coax, Network, USB; Analog | Yes (2ch), Yes (2ch), Yes, Yes |
Multi-Room Zones | 3 |
HDMI | |
Auto LipSync | Yes |
Audio Return Channel (ARC), Enhanced ARC | Yes, Yes |
DSD Audio Capability | Yes |
8K Signal Pass-Through, Scaling, GUI Overlay | Yes, Yes, Yes |
3D Signal Pass-through | Yes |
Variable Refresh Rate, Quick Flame Transport, Quick Media Switching | Yes, Yes, No |
ALLM (Auto Low Latency Mode) Pass-through for gaming | Yes |
HDR, HLG, Dolby Vision, HDR10+, Dynamic HDR | Yes , Yes, Yes, Yes, Yes |
HDMI 2.1: 8K/60Hz AB, 4K/120Hz AB | Yes, Yes |
HDMI Outputs: Main, Zone | 2, 1 |
HDCP2.3 support | Yes |
HDMI Inputs: Back, Front | 7, No |
Network | |
Wi-Fi | Yes |
Bluetooth | Yes |
Ethernet Ports | Yes |
HEOS App Control | Yes |
Compatible with Remote APP for Smart Phones | Denon 2016 AVR Remote |
Roon Tested | Yes |
SiriusXM* | Yes |
Pandora | Yes |
TuneIn | Yes |
Spotify Connect | Yes |
AirPlay 2 | Yes |
DSD Audio Streaming | Yes (2.8/5.6MHz) |
Lossless Formats: FLAC HD, WAV, ALAC (all 192kHz/24 bit) | Yes, Yes, Yes |
Lossless Formats: FLAC, ALAC, WAV | Yes, Yes, Yes |
Lossy Formats: MP3, WMA, AAC | Yes, Yes, Yes |
Alexa / Google Voice Assistant / Apple HomePod | Yes, Yes, Yes |
HEOS Wireless Multi-Room Technology | Yes |
Media Server | Yes |
Sound Enhancements | |
Compressed Audio Restorer | Yes |
Dirac Live Upgradability | Yes |
Audyssey LFC | Yes |
Audyssey Dynamic EQ, Dynamic Volume | Yes, Yes |
Audyssey | MultEQ XT32 |
Alpha Processing | AL32 Processing Multichannel |
Gold Plated RCA Terminals | Yes |
Clock Jitter Reducer | Yes |
Pure Direct | Yes |
D.D.S.C. HD Digital | Yes (32 bit) |
Discrete Power Amplifier | Yes |
Mono Block Power Amp Construction | Yes (L/R separated) |
Multichannel Surround | |
Max. Number of Processing (Pre-Amp) Channels | 15.4 |
Multichannel Stereo | Yes |
360 Reality Audio / MPEG H | Yes, Yes |
Auro 3D | Yes |
Dolby ProLogic Ilz, Dolby Surround | No, Yes |
DTS Neo:X, DTS Neural:X | No, Yes (15ch) |
DTS Virtual:X | Yes |
IMAX Enhanced | Yes |
Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music | Yes, Yes, Yes, Yes |
DTS HD Master, DTS:X, DTS:X Pro | Yes, Yes, Yes |
