Enjoy accurate audio reproduction that’s faithful to the original recording. Thanks to technologies like Advanced AL32 Processing Plus and an ultra-precision D/A Converter, you’ll hear your favorite songs like never before. The Denon original drive mechanism with S.V.H lets you play back CDs, SACDs, and your own compilations on DVD R/RW with signal purity.
Extended format capability
Supports CD, Super Audio CD, and your own high-res compilations on CD or VDR/ RW
Pristine audio
Unique Denon technologies come together to deliver outstanding sound clarity.
Faithful, detailed playback
Advanced AL32 data interpolation algorithms and digital filtering reveal more detail from the original recording.
Build integrity
Built to last with thoughtfully selected components and rigorous testing.
Advanced AL32 Processing Plus
Experience audio beautifully faithful to the original sound. Advanced AL32 Processing Plus algorithms restore information that was lost during the digital recording.
Extended disc format support
Enjoy extended disc support for your high-resolution audio collection, including CD's, Super Audio CDs,s well as DSD and high-res files up to 192 kHz/24 bits recorded on DVD-R/RW and DVD+R/RW discs.
Proprietary disc drive
The Denon original disc drive is built with a high-class S.V.H (Suppress Vibration Hybrid) mechanism. All elements of the design are focused on delivering optimal accuracy.
Sound Master tuned
Carefully tuned with selected audio components and evaluated by the Denon Sound Master to meet Denon’s high standards and distinctive sound for an amazing experience.

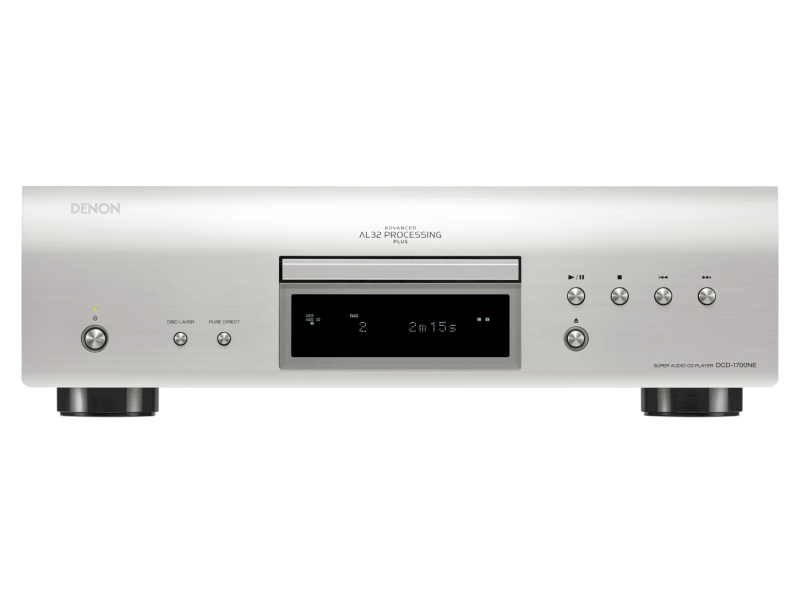

DETAIL VIEW
- Pure Direct. Pure Direct mode turns off the display and unneeded circuits to further improve audio quality.
- Large Display. The large display makes disc information easily visible.
- Denon Original Disc Drive. Denon original drive mechanism with S.V.H. loader provides accurate pickup and decoding from all discs.
- Disc Controls. All controls are easily visible and accessible.
BACK PANEL
- High-Quality RCA Terminals. Ensures best audio transmission of the sensitive audio signal to the connected amplifier.
- Optical and Coaxial Digital Outputs. These digital outputs allow connection to the digital input of an amplifier or AV receiver.
- Power Inlet. With no fixed power cable, the user can choose to upgrade from the in-box cable in the future.
| General | |
|---|---|
| Unit (W x H x D mm) | 434 x 135 x 384 |
| Cabinet Size | 434 x 135 x 374 |
| Specifications | |
| Line Output Level | 2.0Vrms (10kohm) |
| OTHER | |
| Auto Standby Mode | Yes |
| Timer Play (Need external audio timer) | Yes |
| Battery | Yes (AAA x2) |
| Power Cord | Yes |
| Remote Control | Yes (controllable PMA-1700NE) |
| Other | Stereo RCA Cable x1 |
| General | |
| Power Consumption | 24W |
| at Standby | 0.1W |
| Front (Center) Panel | Aluminum |
| Function button | Aluminum |
| Open / Close button | Aluminum |
| Power button | Aluminum |
| Specifications | |
| Frequency Response | SACD:2Hz - 50kHz (-3dB) , CD:2Hz - 20kHz (-0.5dB) |
| Harmonic distortion | SACD: 0.0010%, CD: 0.0016% |
| S/N | SACD: 119dB, CD: 117dB |
| OTHER | |
| Last Function Memory | Yes |
| Remote Control Bus Terminal | Yes |
| CONTROLS | |
| Dimmer for Front Display | Bright / Dim / Dark / Off |
| Control with App via Network Player (Use Remote Control Bus) | Yes |
| OTHER | |
| Pure Direct Mode | Yes |
| CONTROLS | |
| LED | POWER: 1 Green |
| Front Panel Display | Single Line |
| On-Product Buttons | Power, Disc Layer,Pure Direct, Play/Pause, Stop, Fwd/Rev, Open/Close |
| Inputs/Outputs | |
| Optical input / output (Maximum Support) | 0 / 1 |
| Coaxial input / output (Maximum Support) | 0 / 1 |
| CONTROLS | |
| Remote Controller | System Remote (Amp and CD Player Control) |
| Disc | |
| Firmware Update | Yes(FE/BE, MCU) |
| Inputs/Outputs | |
| Fixed Analog Output (RCA) | Cinch x 1 (Gold Plated) |
| Disc | |
| Playability of files recorded on DVD R/RW : MP3 / WMA / AAC / WAV / FLAC / ALAC / AIFF / DSD (DIFF / DSF) | Yes / Yes / Yes / Yes (~192kHz/24bit) / Yes (~192kHz/24bit) / Yes (~96kHz/24bit) / Yes (~196kHz/24bit) / Yes(~5.6MHz) |
| Playability of files recorded on CD-R/RW : MP3 / WMA / AAC / WAV / FLAC / ALAC / AIFF | Yes / Yes / Yes / Yes (~48kHz/24bit) / Yes (~48kHz/24bit) / Yes (~48kHz/24bit) / Yes (~48kHz/24bit) |
| SUPER AUDIO CD TEXT | Yes |
| SACD | Yes (Stereo Layer/Multi-D/M) |
| Disc Type | SACD/CD/CD-R/CD-RW DVD-R/+R/-RW/+RW |
| Digital Audio | |
| DAC Master Clock Design (Not Support Network Playback) | Yes |
| Disc | |
| Mechanism | TD-505 FOR DM |
| Digital Audio | |
| Digital Processing | Advanced AL32 Processing Plus |
| DAC Circuit | TI Advanced Current Segment PCM1795(192k/32bit) ×1 |
| Specifications | |
| Dynamic Range | SACD: 112dB, CD: 101dB |
| Digital Audio | |
| Digital Filter | Fixed |
| General | |
| Packaging gross weight | 11.7kg |
| Packaging Dimensions (W x H x D mm) | 543 x 250 x 515 |
| Net weight | 9.0kg |
