Pioneer 7 Inch Double-DIN Digital Media Receiver - DMH-470EX
DMH-470EX
Features:
- Standard double-DIN size fits most dashboards
- 7” WSVGA Capacitive Touchscreen with clear visuals and easy control
- WebLink® connects your favorite apps like navigation and music
- Bluetooth® for hands-free calling and music streaming

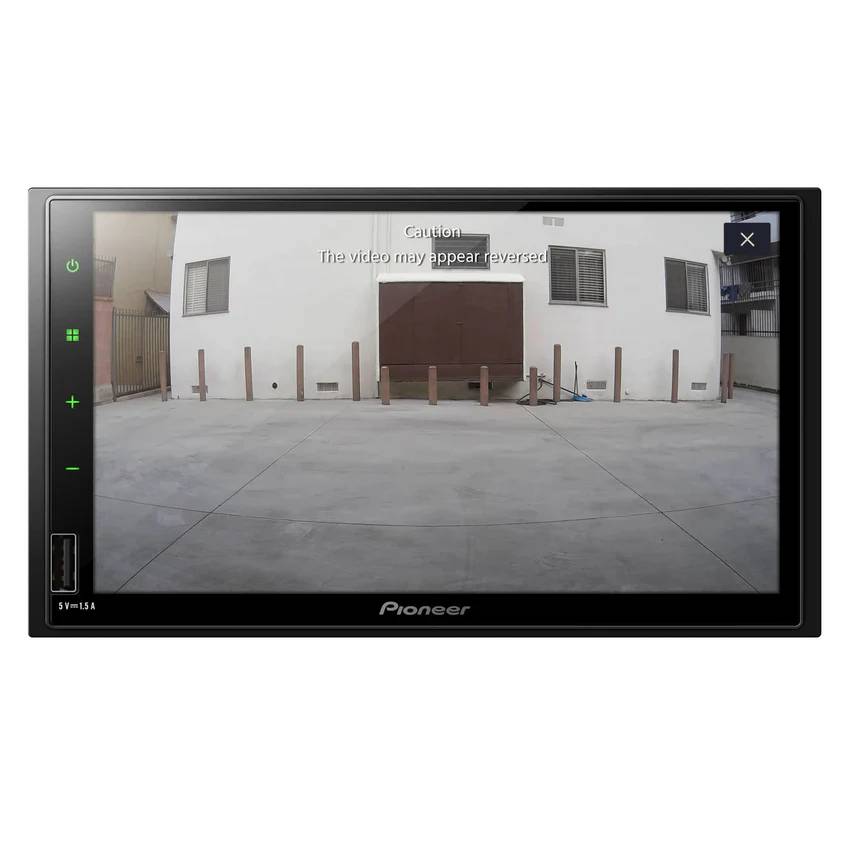

- Supports backup and second camera for added safety
Make every drive more enjoyable with the DMH-470EX. Its 7" touchscreen puts music, navigation, and your favorite apps at your fingertips. Stay connected with Bluetooth® for hands-free calls and streaming, and drive with confidence using backup camera support.
| Specifications | |
|---|---|
| Product Type | Car Stereos |
| Category | Multimedia Digital Media Receiver |
| Screen Size | 7"/16:9 |
| Screen Type | - |
| RCA Volt Output | 2V |
| Apple CarPlay | - |
| Android Auto | - |
| iDataLink Maestro | - |
| METRA AXXESS | - |
| SiriusXM | - |
| Camera Input | Ready |
| Product Highlight Features | Standard double-DIN size fits most dashboards 7” WSVGA Capacitive Touchscreen with clear visuals and easy control WebLink® connects your favorite apps like navigation and music Bluetooth® for hands-free calling and music streaming Supports backup and second camera for added safety |
| Audio | sort~7 Built-in Amplifier~MOSFET 50 W x 4 Crossover Standard Mode~HPF/LPF Customizable Graphic Equalizer~13 Band DA Converter~24 Bit Digital Signal Processor~Built In Easy EQ (EEQ) Preset Equalizer~Yes Loudness~High/Mid/Low/Off Speaker Output~4-ch Subwoofer Control~Yes |
| Bluetooth | sort~3 Built-in Bluetooth®~Yes Microphone Included~Included |
| Digital Media Playback | sort~6 Audio Playback via USB~WMA Audio Playback, MP3 Audio Playback, WAV Audio Playback (Hi-Res), AAC Audio Playback, FLAC Audio Playback (Hi-Res) Audio Video Playback via USB~H.264, H.263, .avi, .mpg/mpeg, .mp4, .mkv, .mov, .flv, .m4v, .ts/.m2ts/.mts Image Display Via USB~BMP, JPEG, PNG |
| Expandability | sort~8 Audio Video Inputs~Input 1 - Backup Camera Dedicated, Input 2 - Audio/Video AUX (Minijack), Input 3 - 2nd Camera Firmware upgradability~Yes RCA-Video-Output~Yes USB~Front Type-A (5V, 1.5 A) |
| General | sort~10 Detachable Face Security~Fixed Multi-Language Display~English, French, Spanish, Portuguese, Chinese (Simplified) Steering Wheel Control Ready (Adapter Sold Separately)~Yes |
| Hd Radio | - |
| Head Unit Type | 2-DIN, Short Chassis |
| Integration | sort~5 Weblink~2.0 |
| Navigation | - |
| Product Performance | sort~0 Continuous Power Output~22 W x 4-Channel Load Impedence Allowance~4 Ohm (4 Ohm to 8 Ohm Allowable) Max Power Output~50 W x 4-ch 4 ohm Rca Preamp Outputs~3-ch Rca Preout Voltage~2V Rms Power Output (Cta-2006)~14 W RMS x 4-ch 4 ohm |
| Tuner | sort~4 Best Station Memory~Yes Presets~18 FM 12 AM |
