Spectacular audio and video performance
5.2-channel AV receiver that delivers spectacular audio performance with 8K video for the ultimate home cinema experience.
Intuitive setup with a minimalist modern design
Seamless integration with smart TVs, gaming consoles, streaming, cable boxes and more with 4 HDMI inputs and 1 output, plus eARC.
High-performance immersive surround sound
Native 5-channel decoding of Dolby and DTS formats.
Bring both music and movies to life with true high fidelity
Stream music wirelessly via Bluetooth and network streaming (Apple Airplay 2, Google Chromecast, Roon Ready)
Bluetooth and network streaming
Stream music wirelessly via Bluetooth and network streaming (Apple Airplay 2, Google Chromecast).
On-screen setup and operation
On-screen display for easy system setup and operation (via HDMI).
Powerful amplification
Five channels of low noise Class D amplification for real world power to all channels.
EZ Set EQ
EZ Set EQ provides easy-to-use room equalization for optimized sound quality.
Product Description
Bring both music and movies to life with true high fidelity.

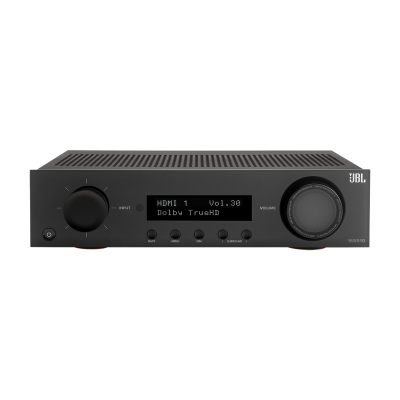

The JBL MA510 is an AV Receiver that delivers spectacular realism with 8K HDMI specifications for a supreme home cinema experience. Seamlessly integrate your smart TV or projector with 4 HDMI inputs and 1 output, plus eARC. With native 5-channel decoding of Dolby and DTS formats, the MA510 can deliver incredible cinema experiences. It is designed with a passion for music and movies, bringing both to life with true high fidelity. Additional music content can be accessed via Bluetooth and network streaming. The MA510 features five channels of low noise Class D amplification for real world power to all channels.
| General Specifications | |
|---|---|
| HDMI eARC | Yes |
| HDMI Audio Return Channel | Yes |
| 8K HDMI input connectors (HDMI 2.1, HDCP 2.3 up to 8K/60Hz, 4K/120Hz) | 4 |
| HDMI 2.1 enhanced gaming features | Gaming-VRR, ALLM, QFT, HFR (4K@120Hz) |
| HDR 10+, Dolby Vision | Yes , Yes |
| File format | MP3 / MPEG-4 AAC |
| Pure Direct | Yes |
| EZ Set EQ | Yes |
| Digital signal processing | up to 24-bit/192kHz |
| Mains voltage | 110 – 240V, 50–60Hz |
| Max. power consumption | 300W |
| Standby power consumption | <0.5W |
| Audio Specifications | |
| Channels | 5.2 |
| FTC Rated Output Power (20Hz– 20kHz, 2 channels driven, 1% THD max, 8Ω) | 75W |
| Rated Power @ 8Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max) | 75 W RMS |
| Rated Power @ 4Ω (20Hz – 20kHz, 2 channels driven, 0.5% THD max) | 100 W RMS |
| Dimensions | |
| Dimensions incl. feet and speaker terminals (H x W x D) | 4.3" x 17.0" x 13.7" (109.2mm x 432.0mm x 347.6mm) |
| Weight | 12lb (5.4kg) |
| Control and Connection Specifications | |
| HDMI Input/Output | 4 / 1 |
| Wi-Fi | Yes (2.4/5GHz) |
| Bluetooth receiver | Yes (v4.1, Low Energy) |
| Digital Audio Input | 1 Coax, 1 Optical, 1 USB |
| Stereo analog input | 2 single-ended RCA |
| Pre-Out (single ended RCA) | Subwoofer 1, Subwoofer 2 |
| Ethernet | RJ45 Gigabit, WiFi Onboard |
| What's in the box? | |
| What's in the box? | 1x IR Remote 2x AAA batteries 1x Bluetooth antenna 1x Wi-Fi antenna 1x Power Cord 1x Quick-Start Guide 1x Safety Sheet |
