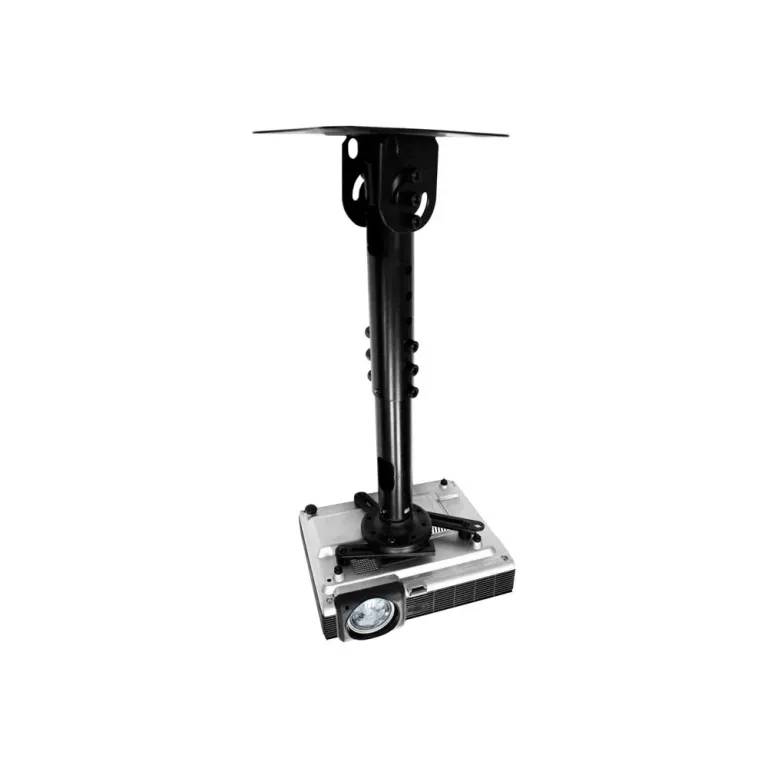

Diagonal ceiling. Straight logic. The Kanto P301 allows you to mount your overhead projector to the ceiling, to the side of a beam or a slanted surface. It sounds complex, so thankfully Kanto has designed this mount for total ease of use. It smartly features adjustable arms which allow you to accurately center the mount to the projector’s center of gravity – essential for vertical hanging. Versatility lies at the heart of the design – with extension, pivot, tilt and swivel adjustments to set up your projector in almost any situation. Almost any projector mounting configuration is now possible, thanks to the Kanto P301.
Diagonal ceiling. Straight logic. The P301 allows you to mount your projector to the ceiling, to the side of a beam or a slanted surface.
Features at a glance
15″ to 18″ of Extension
Once installed to your desired surface – either your ceiling or a slanted wall – the Kanto P301 allows your overhead projector to extend 15” to 18” downward.
Fits Most Projectors
The P301 is shipped with four mounting arms attached to the tilt head, and four longer mounting arms are included in the box. You should be able to reach the mounting holes on virtually all projectors and easily locate the center of gravity.
Simple Installation
This overhead projector mount is designed with as much pre-assembly as possible to ensure that there are only a few steps to get it from the box to full installation. With simplified manuals, an online installation video and phone support, we make it easy to get your swivel projector mounted securely.
Sturdy and Secure
Thick gauge steel construction makes the P301 as solid as a mount gets. Designed for strength and long-term security.
90 Degrees of Tilt
With a 90° pivot point, the pole sits vertically whether the overhead projector is mounted on sloped ceilings or even a vertical one. Once mounted, the swivel projector mount’s adapter will allow 20° of tilt so you can aim your projector at your screen. The tension of the ball adapter can be adjusted if necessary. This swivel projector mount also rotates 360°.
Ultra-easy install
Includes
- Adjustable horizontal leveling
- Installation manual
- Hardware for attaching the ceiling mount plate is not included due to the many mounting and ceiling variables
Locking Mechanism: Spring lock allows easy attachment and removal of projector

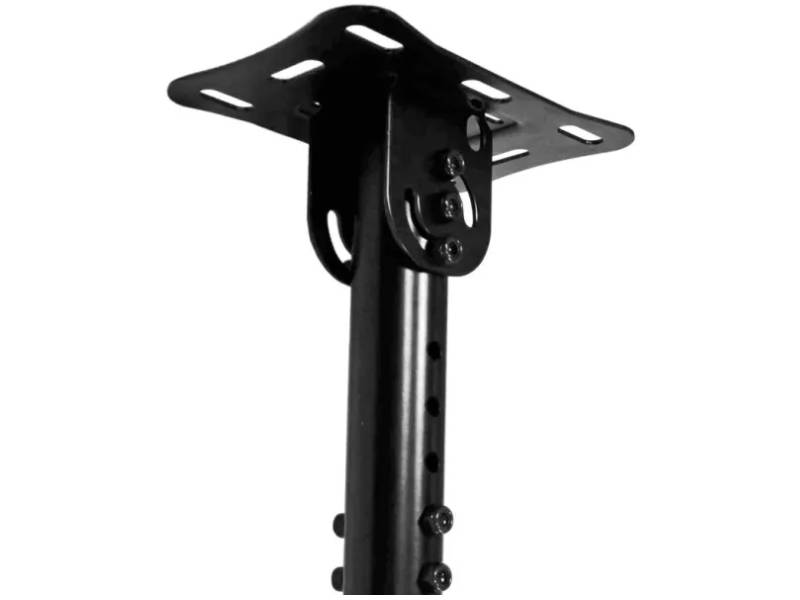

Tilt: Pivot adjustment of ±90° at the mounting plate ensures extension tubes hang vertically when mounted to sloped ceilings and beams
Material: Steel and aluminum with durable powder coated finish
Integrated cable management
| Specifications | |
|---|---|
| Weight Allowance: | 22 lb (10 kg) |
| MEASUREMENTS | |
| Shipping box weight: | 6.4 lb (2.9 kg) |
| Shipping box dimensions: | 13” x 6.2” x 3.5” (33 x 15.8 x 9 cm) |
| Product weight: | 5.9 lb (2.7 kg) |
| Specifications | |
| UPC: | 800152712567 |
| Specifications | ±90° Tilt 360° Swivel 15” to 18” from the ceiling |
