Kanto Full Motion TV Mount - FMX3C
FMX3C

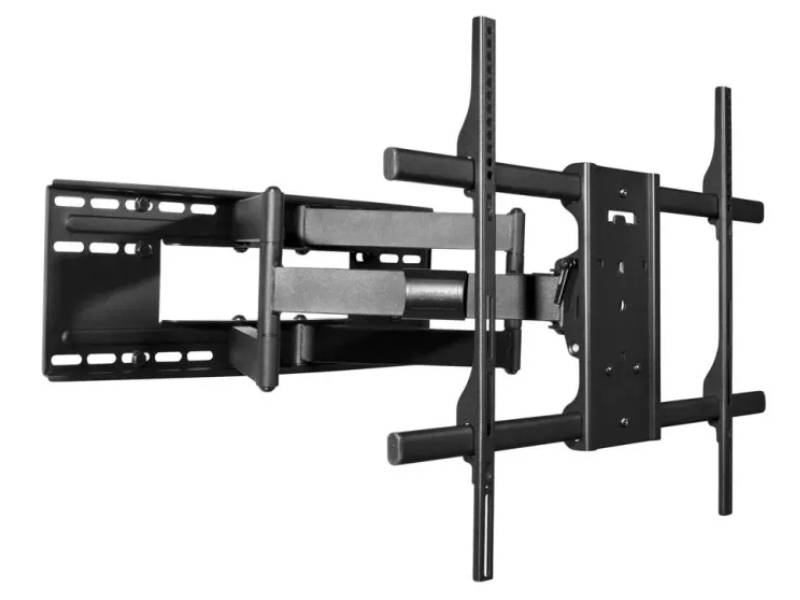

Improve your TV viewing experience with the FMX3C full motion wall mount. Offering 28 inches of extension, the FMX3C’s heavy-duty articulating arms allow you to pan, swivel and tilt your TV to achieve the best view from wherever you’re seated. Conveniently mount it to wood studs up to 24″ apart, or use the provided anchors for concrete or brick installations. Quick to install, the FMX3C comes with a paper drill template to accurately mark your pilot holes, as well as cable management clips to ensure a clean and organized setup.
Features at a glance

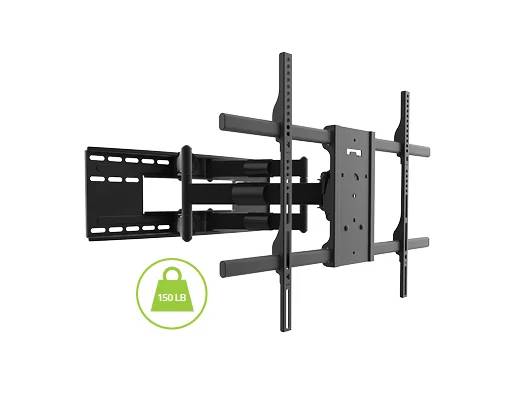

Supports 150 Pounds
With its solid steel construction, the FMX3C TV wall mount is designed and tested to hold up to 150 pounds. Even with your TV at the maximum weight at full extension, your TV will remain in place with no sag.

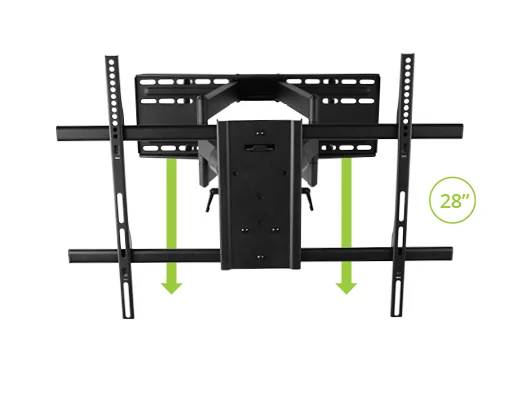

28 Inches of Extension

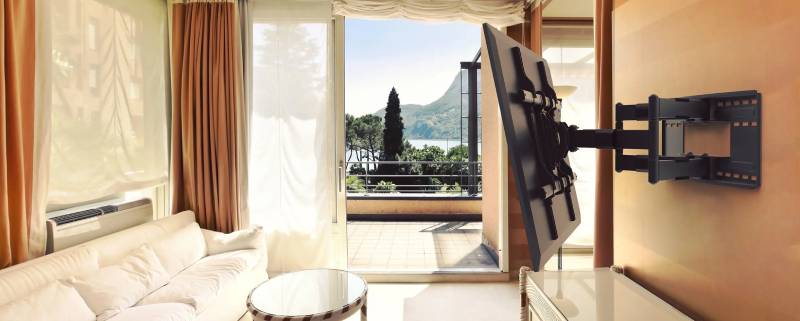

Even at its maximum weight capacity, the FMX3C allows you to safely extend your TV over fireplaces and out of recessed locations.

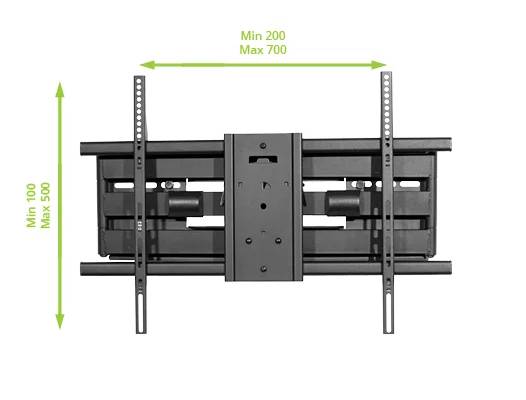

Fits VESA Sizes to 700×500
The FMX3C accommodates a range of VESA patterns from 200×100 to 700×500.

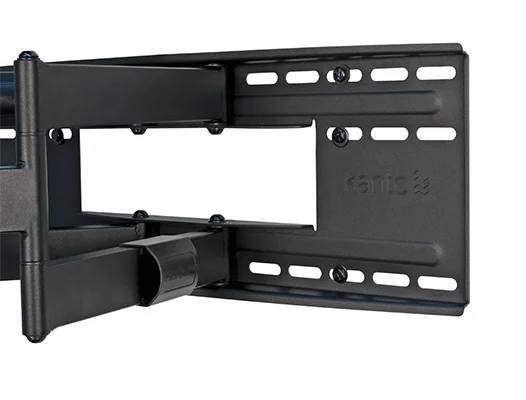

Over 26 Inch Wide Wall Plate
The FMX3C has a wide 26.8” wall plate so you can mount it on 16” or 24” stud centers, or offset it 10” left or right on your 16” studs.

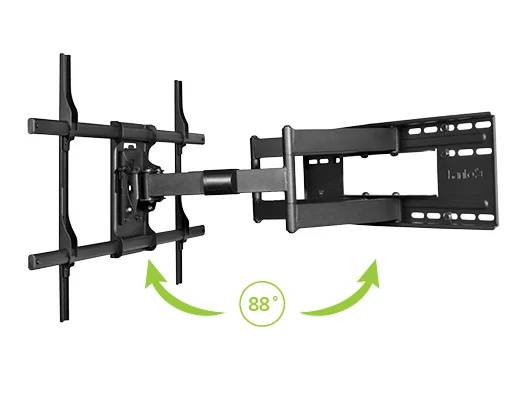

Swivels 88 Degrees in Either Direction
The articulating arms allow you to swivel your TV 88° in either direction, depending on your TV size, allowing you to achieve the perfect viewing angle.

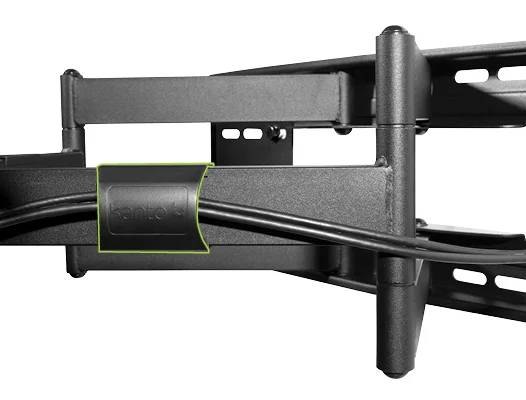

Sleek Cable Management
Removable cable management clips hook easily onto the extension arms, and can be positioned on any of the six arms to route your cables neatly back to the wall. Keep your cables tidy and out of sight for a clean, organized look.
What’s Included
- Adjustable horizontal leveling
- Paper wall template for marking pilot holes
- Installation manual and all mounting hardware for wood stud and concrete installation
| Features | |
|---|---|
| TV Sizes: | 50″ to 100″ |
| Weight Allowance: | 150 lb (68 kg) |
| VESA Sizes: | 200×100 to 700×500 |
| Wall Plate: | 26.8″ (68 cm) dual stud accommodates up to 24″ stud spacing |
| Shipping box weight: | 34 lb (15.4 kg) |
| Shipping box dimensions: | 31.9” x 12.8” x 4.3” (81 cm x 32.5 x 11 cm) |
| Product weight: | 32.6 lb (14.8 kg) |
| UPC: | 800152015590 |
| Features | +15° to -5° Tilt 88° Swivel 4″ to 28" Extension |
| Extension: | 28″ (71 cm) from the wall Integrated cable management |
| Vesa | 200×100 to 700×500 |
