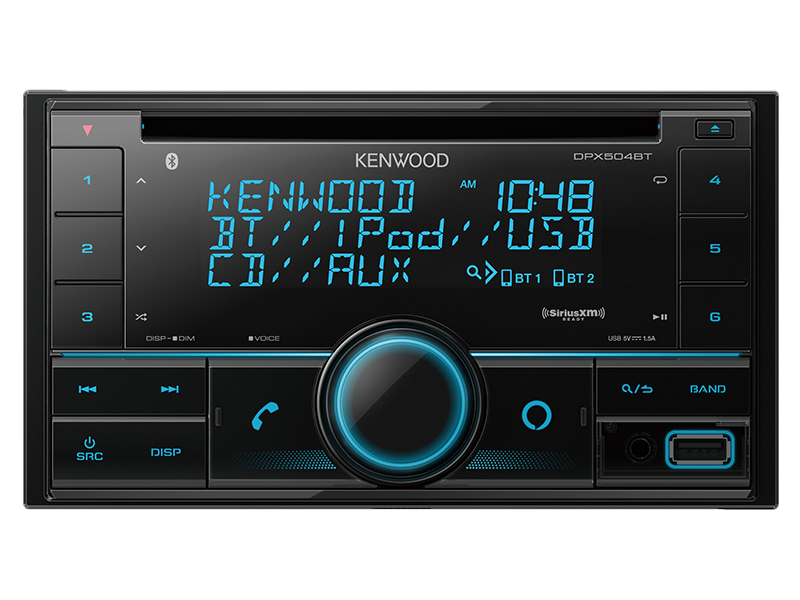

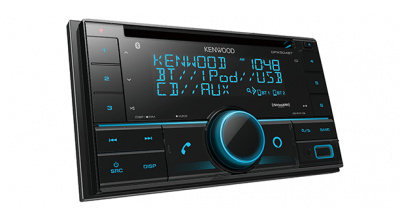

- 420 Segment 3 Line Text Display
- Amazon Alexa Ready
- Spotify Ready
- Bluetooth Direct Access Button
- Variable Color Illumination

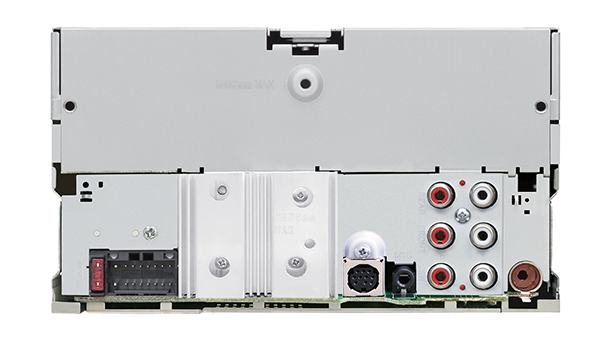

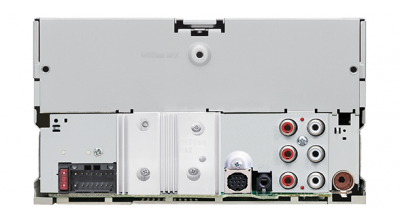

- Front USB & AUX IN
- 3 Preouts 2.5V
Smartphone Connectivity
Enjoy convenient control of popular apps like Spotify and Pandora,built-in Bluetooth for hands-free calls and streaming music,as well as the ability to use your smartphone like a wireless remote control.
The Best Audio Experience
Sound quality enthusiasts will love the playback support of various types of music formats,including compatibility with FLAC files.Simple touch screen sound customization is also available with its built-in 13-Band EQ and Digital Time Alignment.
Additional Features

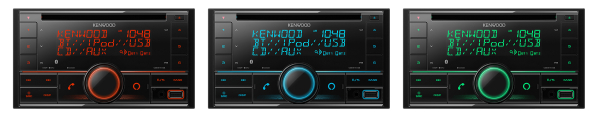

Match Your Mood with Variable Color Illumination
Bright variable color LEDs can be adjusted to match any color dash lighting.

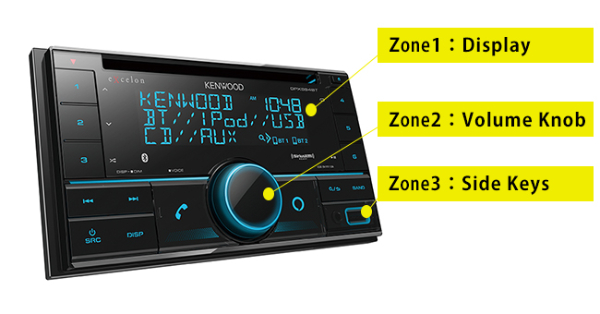

Adjustable 3-Zone Variable Color Illumination
You can adjust the front panel illumination into 3 separate color zones.
SiriusXM Radio Ready
Access additional music, sports and entertainment content on the go with SiriusXM Radio.
Spanish and French Text Display
On-screen display menu now available in Spanish and French.
Remote Control (Optional)
Remote control (KNA-RCDV331) is optionally available.
KNA-RCDV331
Wireless Remote for Navigation, Multimedia and Audio Receivers
| GENE | |
|---|---|
| Net Weight (Trim plate and Mounting sleeve: Included) | 1.3(kg) 2.9(lbs) |
| Installation Size(D) | 156(mm) 6-1/8(in) |
| Installation Size(H) | 100(mm) 3-15/16(in) |
| Installation Size (W) | 178(mm) 7(in) |
| Operating voltage | 12V DC car battery |
| Bluetooth | |
| Maximum Communication range | Line of sight approx.10m(32.8ft) |
| Profile | HFP 1.7.1 (Hands Free Profile), SPP(Serial Port Profile), PBAP(Phonebook Access Profile), A2DP(Advanced Audio Distribution Profile), AVRCP 1.6.1 (Audio/Video Remote Control Profile) |
| TONE | |
| Band12 | 10kHz ±9dB |
| Band13 | 16kHz ±9dB |
| Bluetooth | |
| Version | Bluetooth 4.2 |
| Frequency Range | 2.402 to 2.480GHz |
| RF Output Power (E.I.R.P.) | +4dBm (MAX), Power Class 2 |
| TONE | |
| Band11 | 6.3kHz ±9dB |
| Band10 | 4kHz ±9dB |
| Band9 | 2.5kHz ±9dB |
| Band8 | 1.6kHz ±9dB |
| Band7 | 1kHz ±9dB |
| Band6 | 630Hz ±9dB |
| Band5 | 400Hz ±9dB |
| Band4 | 250Hz ±9dB |
| Band3 | 160Hz ±9dB |
| Band1 | 62.5Hz ±9dB |
| Band2 | 100Hz ±9dB |
| AMP | |
| Full Bandwidth Power (at less than 1%THD) | 22Wx4 |
| Input | |
| Input Maximum Voltage | 1000mV |
| Input Impedance | 30kΩ |
| AMP | |
| Maximum Power | 50Wx4 |
| AUX | |
| Frequency Response | 20Hz to 20kHz ±3dB |
| USB I/F | |
| FLAC Decode | FLAC file (Up to 24bit/96kHz) |
| WAV Decode | Linear-PCM |
| AAC Decode | AAC-LC ".aac",".m4a" files |
| WMA Decode | Compliant with Windows Media Audio |
| MP3 Decode | Compliant with MPEG-1/2 Audio Layer-3 |
| File System | FAT12 / 16 / 32 |
| Maximum Supply current | DC5V(DC logo) 1.5A |
| USB | USB 1.1 / 2.0 High Speed |
| Specifications | |
| Speaker Impedance(Ω) | 4 to 8Ω |
| Preout Impedance(Ω) | =<600Ω |
| Preout Level(mV)/Load -Unbalanced | 2500mV/10kΩ |
| CD | |
| WAV Decode | - |
| AAC Decode | AAC-LC ".aac" files |
| WMA Decode | Compliant with WINDOWS MEDIA AUDIO |
| MP3 Decode | Compliant with MPEG-1/2 Audio Layer-3 |
| Channel Separation | 90dB |
| Dynamic Range | 92dB |
| Total Harmonic Distortion | 0.01%(1kHz) |
| S/N Ratio (dB) | 97dB(1kHz) |
| Spindle Speed | 500 to 200rpm (CLV) |
| Wow & Flutter | Below Measurable Limit |
| Frequency Response | 20Hz to 20kHz(±1dB) |
| Digital Filter(D/A) | 8 Times OverSampling |
| AM | |
| Usable Sensitivity | S/N:20dB 29dBμ (28.2μV) |
| CD | |
| Laser Diode | GaAlAs |
| AM | |
| Channel Space Selection | - |
| (Frequency step) | (10kHz) |
| FM | |
| Frequency Response(±3.0dB) | 30Hz to 15kHz |
| S/N | 64.0dB(MONO) |
| Stereo Separation | 40dB(1kHz) |
| AM | |
| Frequency Range | 530kHz to 1700kHz |
| FM | |
| DIN S/N:46dB | (2.0μV/75Ω） |
| Quieting Sensitivity | 17.2dBf |
| S/N 30dB | (0.71μV/75Ω） |
| Usable Sensitivity | 8.2dBf |
| Channel Space Selection | - |
| Frequency Range | 87.9MHz to 107.9MHz |
| (Frequency step) | (200kHz) |
