General Features
- Peak Power : 300W
- RMS Power : 130W
- Sensitivity : 89dB/ W at 1 m
- Frequency Response : 51Hz 20,000Hz
Woofer
- Woofer Size: 6 x 9 in (153 x 229mm)
- Woofer Diaphragm: Injection PP cone
Tweeter
- Tweeter Size: 1-3/16 in (30mm)
- Tweeter Diaphragm: Soft Dome
Dimensions (without grill)
- Width: 9-5/16 in (236.4mm)
- Height: 6-7/16 in (164mm)
- Depth: 4-1/8 in (104.5mm)
- Mounting Depth: 3-3/8 in (85mm)
| Specification | |
|---|---|

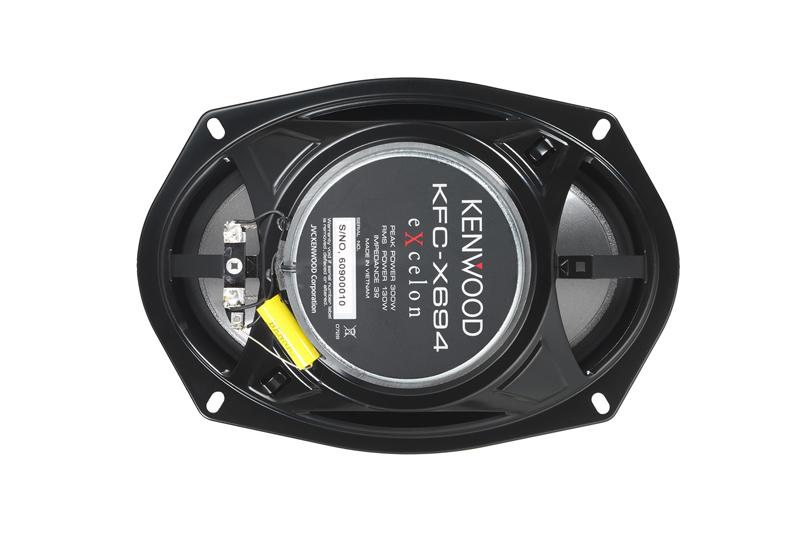

| Model Name | KFC-X694 |
| System | 2way-2speaker |
| Power Handling | |
| Peak Input Power | 300W |
| Maximum Input Power | 110W |
| Rated Power | 55W |
| RMS Power | 130Watts RMS |
| Impedance | 3Ω |
| Sensitivity | 89dB/ W at 1 m |
| Frequency Response | 51 Hz~20,000 Hz |
| Woofer | |
| Diaphragm | P.P. Cone , Gray |
| Size | 153x229 mm , 6x9 inch |
| Surround | Rubber |
| Basket | Steel |
| Magnet | Ferrite , φ100 x t17 |
| Size | |
| Size | 30 mm , 1-3/16 inch |
| Magnet | |
| Magnet | Nd , Up to Engineer |
| Dimension | |
| Width | 266.4mm , 10-1/2 inch |
| Height | 193.4mm , 7-5/8 inch |
| Depth | 113.5 mm , 4-7/16 inch |
| Width | 236.4 mm , 9-5/16 inch |
| Height | 164 mm , 6-7/16 inch |
| Depth | 104.5 mm , 4-1/8 inch |
| Cut-out Diameter | 218.0 x 149.0 mm , 8-9/16 x 5-7/8 inch |
| Tweeter Height | 19.5 mm , 3/4 inch |
| Mounting Depth | 85.0 mm , 3-3/8 inch |
| Accessory | |
| Grille Holder | ○ |
| Punching Net | ○ |
| Tweeter | with Woofer Frame , -6dB/oct |
| Binding Head Tapping Screw | φ4 x 40 mm , 8 pcs |
| Hexagon Head Bolt | M4 x 70 mm , 8 pcs |
| Hexagon Nut | M4 , 8 pcs |
| Flat Washer | M4 , 8 pcs |
| Flat Washer | φ4 , 8 pcs |
| Spring Washer | φ4 , 8 pcs |
