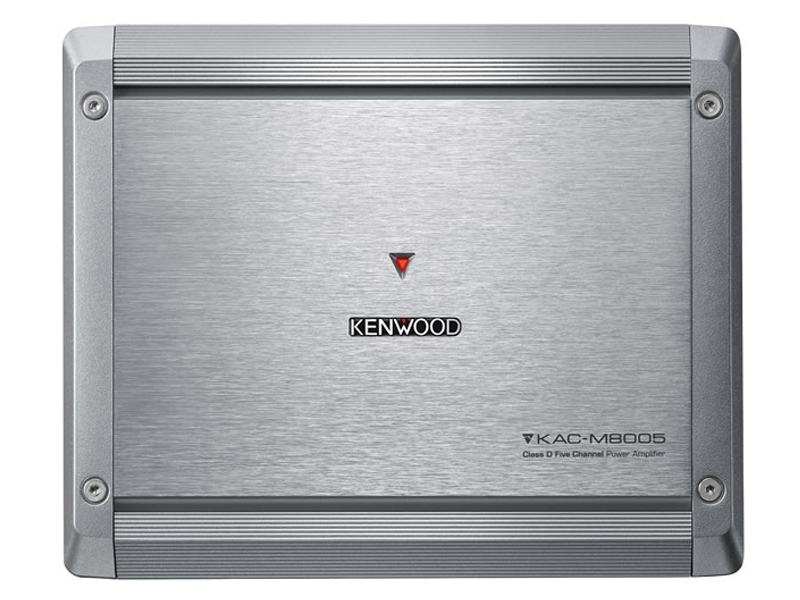

General Features
MAX Power 1600W
RMS Power50W x 4 + 300W (4Ω) 75W x 4 + 500W (2Ω) 150W x 2 (Bridged) + 300W (4Ω) Conformal Coating*
Speaker Level Input
Signal Sensing Turn-on
Variable Low & High-pass Filter
Bass Boost
(W)9” x (H)2-3/16” x (D)7-3/8”
| Specification | |
|---|---|
| Key Features | CEA-2006 Compliant 2 Ohms Load Capability Speaker Level Input with Signal Sensing Turn-on Power MOS-FET Switching Power Supply Extruded Aluminum Heat Sink Design A B Sub Independent Gain Adjustment |
| General | |
| Current Consumption | 58[A] |
| Operating Voltage | 14.4V（11-16V allowable） |
| Dimensions(WxHxD) | 9 x 2-3/16 x 7-3/8 [inch] |
| Terminals | |
| Speaker Output | M4 Screw Type Terminal Block |
| Battery & Ground | M6 Screw Type Terminal Block |
| AUDIO SECTION | |
| Speaker Level Input Sensitivity | 4.0[V] - 12.0 [V] |
| RCA Input Sensitivity | 0.2[V] - 5.0 [V] |
| Bass Boost | 40Hz, 0dB - +18dB (SUB) |
| High-Pass Filter | 50Hz-200Hz, -12dB/oct (A/B) |
| Low-Pass Filter | 50Hz-200Hz, -24dB/oct (SUB) |
| Specifications | |
| Bridged Connection | 4Ω to 8Ω allowable |
| Speaker Impedance | 4Ω (2Ω to 8Ω allowable) |
| Input Impedance | 10k ohm |
| Frequency Response | 20Hz-50kHz (+0dB, -3dB) A/B 20Hz-200Hz (+0dB, -3dB) SUB |
| Signal to Noise Ratio | 100dB (Reference: Rated Power into 4Ohms at 14.4V) |
| Rated Power Output at 14.4V | |
| A/B (Bridged 4Ohms) | 150Watts RMS x 2 (Bridged 4 Ohms, 1kHz, ≤1.0% THD) |
| SUB (2 Ohms) | 500Watts RMS x 1 (2 Ohms, 100Hz, ≤0.5% THD) |
| SUB (4 Ohms) | 300Watts RMS x 1 (4 Ohms, 20-200Hz, ≤0.5% THD) |
| A/B (2 Ohms) | 75Watts RMS x 4 (2 Ohms, 1kHz, ≤1.0% THD) |
| A/B (4 Ohms) | 50Watts RMS x 4 (4 Ohms, 20-20kHz, ≤1.0% THD) |
| Maximum Power Output | |
| MAX POWER | 1600W |
| CEA-2006 Primary Ratings | |
| Signal-to-Noise Ratio | 80dBA (Reference: 1Watt into 4Ohms) |
| Power Output | 50 Watts RMS x 4 + 300 Watts RMS x 1 at 4 Ohms and ≤1%THD+N |
