Kenwood Class D 5-Channel Power Amplifier - XM802-5

$59800
Save $5100
Or
as low as
$99.67
Per month over
6 months.


Online Only

Literature
  • RMS 50W x4 + 300W (4Ω)
  • RMS 75W x4 + 500W (2Ω)
  • Variable High & Low Pass Filter
  • Bass Boost
  • Conformal Coating
  • Protective Terminal Cover
  • Size (inch) (W) 9-3/4" x (H) 2-1/16" x (D) 6-5/8"
  • Optional Wired Remote Ready

Product Overview

Smooth waveforms

Loss of smoothness

Fine waveforms

Rich and Immersive High-Resolution Audio

High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality sonic experience.



Output Coil with Magnetic Shield

Prevents magnetic flux from radiating from the subwoofer's coil, resulting in reduced noise and enhanced sound quality.



Conformal Coating

Improved moisture resistance of the circuit boards to prevent corrosion.



Protective Caps and Cover

All control holes,RCA, wired remote and Speaker Level input terminals are coverd with caps and plastic covers to avoid from moisture and dust.

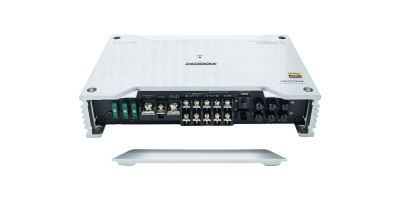

Sliding Terminal Cover

Detachable sliding terminal cover offers a sleek design and easier installation.



One-side Connection

All terminals and connections are on one side for easier installation and a cleaner look.


  • ①Fuse (30A x3)
  • ②Battery terminal (POWER IN BATT.)
  • ③Power control terminal
  • ④Ground terminal (GND)
  • ⑤Speaker output terminals (A.ch/B.ch)
  • ⑥Speaker output terminals (Sub)
  • ⑦Speaker level input terminal
  • ⑧Remote terminal (Optional Remote Controler for Sub)
  • ⑨Line in terminal (A.ch/B.ch/Sub)


Variable Gain Circuit

Improved Signal to Noise Ratio


  • ⑩Input sensitivity control(A.ch/B.ch/Sub)
  • ⑪Input selector switch
  • ⑫Bass Boost Level control (Sub)
  • ⑬LPF frequency control (SUB)
  • ⑭Filter switch (A.ch/B.ch)
  • ⑮HPF frequency control (A.ch/B.ch)


Speaker Level Input Harness

Speaker Level Input Harness is included to connect to speaker wires from factory installed receivers.



Optional Wired Level Control Ready

The optional KCA-RC01A wired remote level control allows you to easily adjust the subwoofer volume.

*Control unit does not support conformal coarting or water-proof.



Key Features

  • High-Res Audio Compliant
  • CTA-2006 Compliant
  • 2 Ohms Load Capability
  • One Sided Connection
  • Speaker Level Input with Signal Sensing Turn-on
  • Signal Sensing Turn-On
  • Remote Level Control Ready ( Optional KCA-RC01A)
  • Terminal Cover
  • Power MOS-FET Switching Power Supply
  • Extruded Aluminum Heat Sink Design
  • A B Sub Independent Gain Adjustment
  • A B AB(MIX) Independent Gain Adjustment

General
Weight4.6 lbs ( 2.1 kg)
Rated Power Output at 14.4V
SUB (2 Ohms)500Watts RMS x 1 (2 Ohms, 100Hz, ≤0.5% THD)
A/B (Bridged 4Ohms)150Watts RMS x 2 (Bridged 4 Ohms, 1kHz, ≤1.0% THD)
Specifications
Signal to Noise Ratio100dB (Reference: Rated Power into 4Ohms at 14.4V)
Frequency Response20Hz-50kHz (+0dB, -3dB) A/B
AUDIO SECTION
Low-Pass Filter50Hz-200Hz, -24dB/oct (SUB)
Specifications
Bridged Connection4Ω to 8Ω allowable
Speaker Impedance4Ω (2Ω to 8Ω allowable)
Input Impedance10k ohm
Frequency Response20Hz-200Hz (+0dB, -3dB) SUB
AUDIO SECTION
High-Pass Filter50Hz-200Hz, -12dB/oct (A/B)
Infrasonic Filter-
Bass Boost40Hz, 0dB - +18dB (SUB)
RCA Input Sensitivity0.2[V] - 5.0 [V]
Speaker Level Input Sensitivity4.0[V] - 12.0 [V]
Terminals
Battery & GroundM6 Screw Type Terminal Block
Speaker OutputM4 Screw Type Terminal Block
General
Current Consumption42[A]
Operating Voltage14.4V(11-16V allowable)
Dimensions(WxHxD)(W) 248mm x (H) 53mm x (D) 169mm
Dimensions(WxHxD)(W)9-3/4" x (H) 2-1/16” x (D)6-5/8”
CTA-2006 Primary Ratings
Power Output50 Watts RMS x 4 + 300 Watts RMS x 1 at 4 Ohms and ≤1%THD+N
Signal-to-Noise Ratio80dBA (Reference: 1Watt into 4Ohms)
Maximum Power Output
MAX POWER1600W
Rated Power Output at 14.4V
A/B (4 Ohms)50Watts RMS x 4 (4 Ohms, 20-20kHz, ≤1.0% THD)
A/B (2 Ohms)75Watts RMS x 4 (2 Ohms, 1kHz, ≤1.0% THD)
SUB (4 Ohms)300Watts RMS x 1 (4 Ohms, 20-200Hz, ≤0.5% THD)
