Key Features
- High-Res Audio Compliant
- CTA-2006 Compliant
- 2 Ohms Load Capability
- One Sided Connection
- Speaker Level Input with Signal Sensing Turn-on
- Max Power 600W
- Size (inch) (W) 8-3/8" x (H) 2-1/16" x (D) 5-7/8"
- Variable High & Low Pass Filter
- Bass Boost
Rich and Immersive High-Resolution Audio
High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality sonic experience.
Sliding Terminal Cover
Detachable sliding terminal cover offers a sleek design and easier installation
Variable Gain Circuit
Improved Signal to Noise Ratio

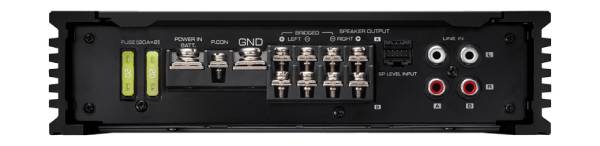

One-side Connection
All terminals and connections are on one side for easier installation and a cleaner look.
Speaker Level Input Harness
Speaker Level Input Harness is included to connect to speaker wires from factory installed receivers.
| AUDIO SECTION | |
|---|---|
| Speaker Level Input Sensitivity | 4.0[V] - 12.0 [V] |
| RCA Input Sensitivity | 0.2[V] - 5.0 [V] |
| Infrasonic Filter | - |
| Bass Boost | 40Hz, 0dB - +18dB (Bch) |
| High-Pass Filter | 50Hz-200Hz, -12dB/oct (A/B) |
| Low-Pass Filter | 50Hz-200Hz, -12dB/oct (A/B) |
| Features | |
| Bridged Connection | 4Ω to 8Ω allowable |
| Speaker Impedance | 4Ω (2Ω to 8Ω allowable) |
| Input Impedance | 10k ohm |
| Frequency Response | - |
| Frequency Response | 20Hz-50kHz (+0dB, -3dB) |
| Signal to Noise Ratio | 100dB (Reference: Rated Power into 4Ohms at 14.4V) |
| Rated Power Output at 14.4V | |
| A/B (Bridged 4Ohms) | 150Watts RMS x 2 (Bridged 4 Ohms, 1kHz, ≤1.0% THD) |
| SUB (2 Ohms) | - |
| SUB (4 Ohms) | - |
| A/B (2 Ohms) | 75Watts RMS x 4 (2 Ohms, 1kHz, ≤1.0% THD) |
| Maximum Power Output | |
| MAX POWER | 600W |
| Rated Power Output at 14.4V | |
| A/B (4 Ohms) | 50Watts RMS x 4 (4 Ohms, 20-20kHz, ≤1.0% THD) |
| CTA-2006 Primary Ratings | |
| Signal-to-Noise Ratio | 85dBA (Reference: 1Watt into 4Ohms) |
| Power Output | 50 Watts RMS x 4 at 4 Ohms and ≤1%THD+N |
| Terminals | |
| Battery & Ground | M6 Screw Type Terminal Block |
| Speaker Output | M4 Screw Type Terminal Block |
| General | |
| Dimensions(WxHxD) | (W)8-3/8” x (H)2-1/16” x (D)5-7/8” |
| Dimensions(WxHxD) | (W) 213cm x (H) 53cm x (D) 149cm |
| Weight | 3.1 lbs ( 1.4 kg) |
| Operating Voltage | 14.4V（11-16V allowable） |
| Current Consumption | 20[A] |
