- IP67/IP66 Certified Waterproof & Dustproof
- Speaker Level Input
- Signal Sensing Turn-on
- Variable High & Low Pass Filter
- (W)7-13/16” x (H)1-15/16” x (D)4-1/8”
EXTREME Durability

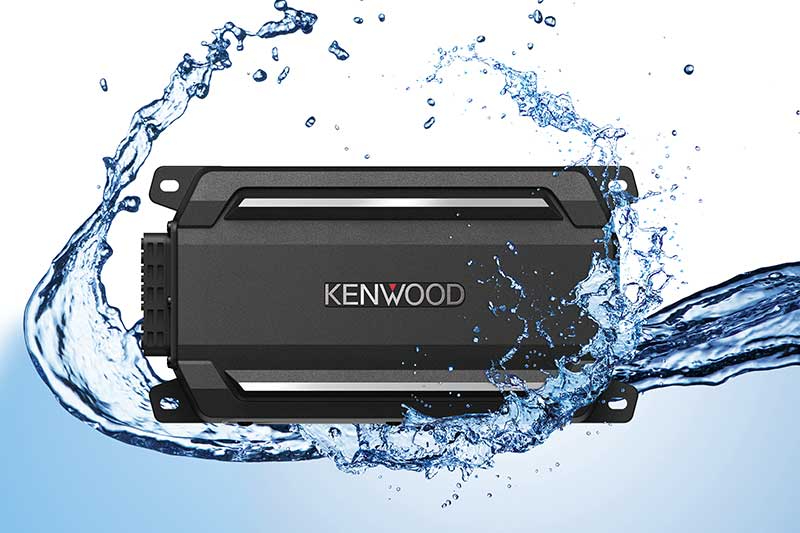

WaterPROOF & DustPROOF
IPX7/IPX6/IP6X certified. The product can submerged up to 3.3 feet in water for 30 minutes, and can resist high-pressure, heavy sprays of water.
Salt Spray PROOF
ASTM B117 salt spray (or salt fog) corrosion testing ensures the amplifier will not corrode or fail in saltwater and other harsh environments.
Vibration PROOF
Thick 1/4" die-cast frame suppresses vibration.
ULTIMATE Performance
Increased Power Flow
Metal studs enable high current flow for connections between the amplifier and battery, resulting in powerful bass reproduction and enhanced overall sound quality.
High Quality Capacitors
PMLCAP's (Polymer Multi-Layer Capacitors) are utilized in the LC filter circuits to decrease distortion, ensuring clear detail for a truer to life sound.
Magnetic Shielding
Magnetic shields for the output coils reduce radiated noise, further contributing to smooth and accurate sound.
Selectable Connection
Speaker Level Input
If your receiver does not have RCA outputs, you can connect your speaker cables directly to the KAC-M5014’s RCA cables to use as an audio signal input.
Take CONTROL
| Specification | |
|---|---|
| Key Features | CTA-2006 Compliant, Class D, Power MOS-FET Switching Power Supply, 2 Ohms Load Capability, One-Sided Connection, Line Input Terminals, Speaker Level Input, Signal Sensing Turn-on, Remote Turn-on, Terminal Cover, AB/A Channel Input Selector with Independent Gain Adjustment, Speaker Output Selector (2ch / 3ch4ch), Audio Controls on the Side, Corrosion-Resistant Sealed Cast Aluminum Chassis, Drain Tunnel, Water-proof & Dust-proof (Main Unit/DC cable), ASTM B117 (Main Unit) |
| General | |
| Fuse | 40A |
| Current Consumption | 26A |
| Operating Voltage | 14.4V (11-16V allowable) |
| Weight (kg) | 1.3 [kg] 2.9 [lbs] |
| Dimensions(WxHxD) | 198[mm] x 48.5 [mm] x 104 [mm], 7-13/16" x 1-15/16" x 4-1/8" |
| TERMINAL | |
| Speaker Input (Pigtail RCA In) | Yes (A/B) |
| Pre Out (Pigtail RCA) | No |
| Line In (Pigtail RCA) | Yes (A/B) |
| Speaker Output | 12" 16-gauge Pigtail Cable with Molded Strain Relief Bushing |
| Battery & Ground | 12" 10-gauge Pigtail Cable with Molded Strain Relief Bushing |
| AUDIO SECTION | |
| Output Selecter | 2ch, 3/4ch |
| Input Selecter | 2ch, 4ch |
| Speaker Level Input Sensitivity | 4.0 (V) - 12.0 (V) |
| RCA Input Sensitivity | 0.2 (V) - 5.0 (V) |
| Filter Selecter | LPF/OFF/HPF (A/B CH) |
| High-pass Filter | 50-200Hz, -12dB/oct (A/B CH) |
| Low-pass Filter | 50-200Hz, -12dB/oct (A/B CH) |
| Specification | |
| Bridged Connection | 4Ω to 8Ω allowable |
| Speaker Impedance | 4Ω ( 2Ω to 8Ω allowable) |
| Input Impedance | 10k ohm |
| Frequency Response | 10Hz-35kHz (+0dB, -3dB) |
| Maximum Power Output | |
| MAX POWER | 600W |
| RMS Power at 14.4V | |
| A/B (4 Ohms) | 50Watts RMS x 4 at 4 Ohms, 20Hz-20kHz , ≤1% THD+N |
| A/B (2 Ohms) | 75Watts RMS x 4 at 4 Ohms, 1kHz, ≤1%THD+N |
| A/B (Bridged 4 Ohms) | 150Watts RMS x 2 at 4 Ohms, 1kHz, ≤1%THD+N |
| Specification | |
| Signal to Noise Ratio | 89dB (Reference: Rated Power into 4Ohms at 14.4V) |
| CEA-2006 Primary Ratings | |
| Signal-to-Noise Ratio | 77dBA (Reference: 1Watt into 4Ohms) |
| Specification | |
| Amplifier Type | Class D |
| CEA-2006 Primary Ratings | |
| Power Output | 50Watts RMS x 4 at 4 Ohms, ≤1%THD+N |
| Specification | |
| Other Features | Fuse Rubber Cover |
| Accessories | Stainless Steel Self-tapping Screw (Φ4 x 16mm) 4pcs, Wire band (100mm [3-15/16"]) 2pcs, Instruction Manual, Warranty Card |
