- Magnetic Circuit with Aluminum Ring
- Glass Fiber Diaphragm
- 1” Soft Dome Tweeter
- High-Resolution Audio Ready

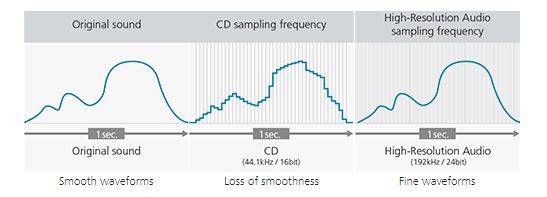

Rich and Immersive High-Resolution Audio
High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality sonic experience.
HIGH-RIGIDITY GLASS FIBER DIAPHRAGM
Features high-strength, tough, yet lightweight materials to finely reproduce all sounds from booming bass notes to delicate tones.
OPTIMIZED EQUALIZER SHAPE
The space around the radius and outer wall of the equalizer, eliminates phase response disturbances, producing well rounded audio across the frequency spectrum.
ALUMINUM SHORT RING
Clearer sound is achieved using an aluminum short ring to eliminate magnetic modulation distortion caused by the coil’s electromagnetic induction.

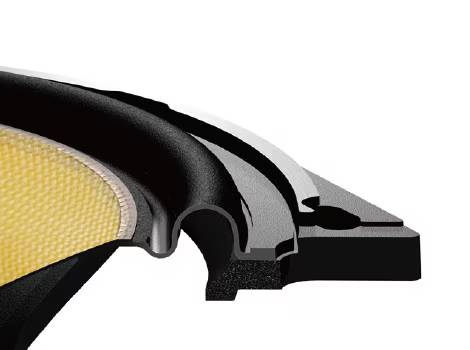

SMOOTH MOTION EDGE
The combination of two differing curves around the edge of the diaphragm boosts amplitude linearity, and ensures that the diaphragm moves in time with sound reverberation.
1” SOFT DOME TWEETER
Featuring a completely reworked design from magnetic circuitry to diaphragm materials and punching net. You will feel as if the artist were next to you, as the finest details of performances are reproduced, emanating out in all directions.
High rigidity ensures minimal vibration ALUMINUM DIECAST WOOFER FRAME
A high-rigidity aluminum frame with high internal loss helps to suppress unwanted vibration, enabling the reproduction of natural, distortion-free sound.

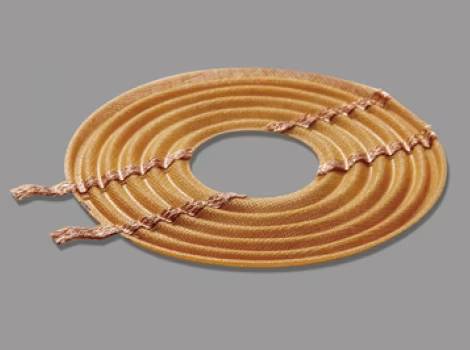

Supremely stable sound AFC+TORNADO DAMPER (PATENT NO. 5413004)
By revolutionizing the shape of the conventional AFC damper to disperse stress, the result is sound with high linearity.
Improved acoustic conversion efficiency SQUARE VOICE COIL
Square-shaped wires wound in a double layer give this voice coil ultra-high magnetic flux density, for high driving force and powerful sound.
| Feature | |
|---|---|
| FEATURE | Glass Fiber Diaphragm AFC and Tornado Damper Twivel Tweeter Aluminum Ring Neodymium Magnet Squar Voice Coil Aluminum Woofer Bascket Equalizer Diffuser and Phase Correction |
| Tweeter | |
| Tweeter Depth | 40.4mm 1-9/16" |
| Tweeter Width | 43.3mm 1-11/16" |
| Tweeter Height | 50.0mm 1-15/16" |
| Tweeter Driver | |
| Weight (pc) | 50g |
| Tweeter Depth | 18.9mm 3/4" |
| Tweeter Width | 37.5mm 1-1/2" |
| Tweeter Height | 37.5mm 1-1/2" |
| Woofer | |
| Weight (pc) | 640g |
| Mounting Depth | 57.7 mm 2-1/4" |
| Depth | 66.5mm 2-5/8" |
| Height | 156.0mm 6-1/8" |
| POWER SPECIFICATIONS | |
| Frequency Response(Hz) | 25Hz-48kHz(-10dB) |
| Sensitivity (dB at 1m) | 83 |
| RMS Power（W) | 45 |
| Peak Input Power（W) | 180 |
| Impedance(Ω） | 4 |
| UNIT SIZE | |
| Tweeter Size | 1" Soft Dome |
| Woofer Size | 6.75" |
| Woofer | |
| Width | 156.0mm 6-1/8" |
