- 6.8" High Definition Monitor with Capacitive Touch Panel
- Android Auto™ & Android Auto™ Wireless
- Wired and Wireless Apple CarPlay
- High-Resolution Audio Wireless
- Wireless Mirroring for Android
- USB Type-C
- 13 Band EQ & Digital Time Alignment
- 4 Camera Inputs / HD Rear Camera Ready
- 3 Preouts 5.0V
Features
Capacitive Touch Panel
Clear glass display with swipe functionality that provides superior picture and touch panel control.
Wireless Mirroring for Android
Solution for seamlessly displaying and controlling your smartphone apps on a screen without cables on select Android devices.
4 Camera Inputs
Optional camera connection method for up to 4 cameras in various configurations.
HD Rear Camera Input
HD Rear Camera (CMOS-740HD) can be connected for High Definition viewing.
Parking Guidelines
Parking guidelines (requires installation of compatible backup camera) that enhance the effectiveness of a backup camera.
Music Mix
Up to 5 Bluetooth® devices can be paired to the receiver at the same time. You can enjoy audio streaming just by switching the devices with your friends or family.
Dual Phone Connection
While you are connected through Bluetooth, with a touch of a button you can switch between two phones.
High Quality Sound Parts
High quality sound parts (custom-made or carefully selected capacitor, etc) are adopted to provide superior sound quality.
Graphic EQ / Digital Time Alignment
13-Band equalizer and DTA gives optimal tuning enhancements for listeners.
USB Type-C
USB Type-C cable and USB Type-A adapter are included to the set.
Rapidly charge your compatible Android smartphone with the USB port, up to a maximum of 3.0A
Short Chassis
With receivers shorter in depth than any of our previous models, installation is made easier in a wider range of cars than ever before.
Smartphone Connectivity
Safe, Smart and Comprehensive Control with Apple CarPlay
Apple CarPlay is a safer way to use your iPhone in the car. Simply talk to Siri or touch the receiver’s display to get directions from Apple Maps, make phone calls, listen to voicemail, send and receive texts, and listen to music from Apple Music or your favorite 3rd party streaming services like Pandora and Spotify, all in a way that allows you to stay focused on the road. With the latest iOS version (iOS 12.0 and higher), 3rd party navigation apps like Google Maps™ and Waze™ are also supported. KENWOOD Wi-Fi receivers now support Apple CarPlay wirelessly (compatible phone required).
Android Auto for Easy Connectivity
Android Auto was designed with safety in mind, helping you to minimize distractions and stay focused on the road. KENWOOD’s multimedia receivers combine an intuitive voice controlled interface with a large touch screen and superior sound quality, making it the perfect complement for your in-car life. You can even listen to and control music from your favorite streaming services like Pandora and Spotify. Navigate to where you need to with Google Maps or Waze. KENWOOD Wi-Fi receivers also support Android Auto wirelessly (compatible phone required).
- To use Android Auto on your car display, you’ll need an Android Auto compatible vehicle or aftermarket stereo, an Android phone running Android 6.0 or higher, and the Android Auto app.
Wireless Mirroring for Android
Solution for seamlessly displaying and controlling your smartphone apps on a screen without cables on select Android devices.
HDMI Input
Display your smartphone screen or other device via an HDMI cable (and third party adapter as applicable) on the monitor. KCA-HD200 optional HDMI cable sold separately.
Streaming Music
Listen to popular music applications and music stored on your device with basic audio controls.
Equipped with the Intuitive KENWOOD Music Mix
Up to 5 Bluetooth® devices can be connected to the receiver at the same time, allowing you to take turns streaming music with your friends and family.
Dual Phone Connection
While you are connected through Bluetooth, with a touch of a button you can switch between two phones.
Control the Receiver from Your Smartphone with the KENWOOD Remote App S
A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).
KENWOOD Portal App
Display image files stored in your iPhone or Android on the receiver's photo frame widget and/or wallpaper.
The Best Audio Experience
High-Resolution Audio Wireless
High-Resolution Audio is high-quality sound that exceeds CD standard. High-Resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality listening experience. Select KENWOOD receivers now support Hi-Resolution Audio Wirelessly via LDAC. LDAC is an audio coding technology that enables the transmission of High-Resolution Audio over a Bluetooth connection.
Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment
Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.

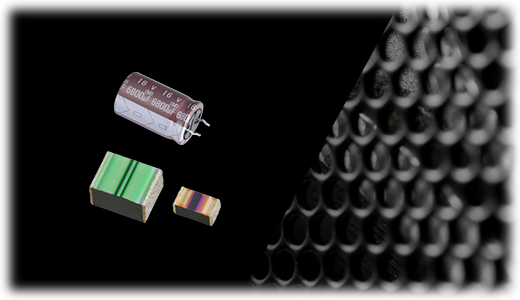

High Quality Audio Parts Supporting High-Resolution Audio Reproduction
To ensure the best possible sound quality, this receiver uses custom-made and carefully selected parts, such as audio quality power supply capacitors and high quality coupling capacitors. These parts are further optimized through meticulous tuning of the component values and circuit paths.
Playable Video & Audio Files
You can play back from USB devices audio and video files compressed in various formats.
Safe Driving
ENHANCED VEHICLE INTEGRATION
Compatible with both the Automotive Data Solutions iDatalink Maestro RR and RR2 (sold separately)* for enhanced system vehicle integration. In addition to providing the seamless factory integration experience you have become accustomed to with the RR, this model feature expanded support when connected to the RR2, including an Advanced Driver Assistance Systems (ADAS) Widget, Customizable Accessory Controls, and compatibility with specific ESCORT radar detector systems (sold separately). *Available features vary by vehicle
HD Rear Camera Input
The optional CMOS-740HD camera can be connected to the receiver’s rear camera input, displaying the image in true 1280 x 720 (720P) High Definition on compatible receivers. The camera’s built in High Dynamic Range technology further helps to overcome the negative effects of dark or bright conditions, making it the safest rear camera option available.
Rear View Camera Input with Parking Guidelines
An optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.
4 Camera Inputs
To enable a smarter driving experience, receivers featuring 4 camera inputs allow for the utmost in convenience, flexibility, and safety. With 4 camera inputs, you can connect a front camera, a KENWOOD dashboard camera (DRV-N520 sold separately), and rear and side (blind spot) cameras. Alternatively, 4 camera inputs can support several other configurations, including the connection of 2 side cameras, a front camera, and a reverse camera. Camera switching is available using on screen controls, or automatically for side cameras when an optional iDatalink Maestro RR is connected (supported vehicles only).
Dash Cam Link Ready
Full HD video recording is available with a DRV-N520 compact windshield mount camera that can record every event in front of you while you drive. High Dynamic Range (HDR) allows flawless recording regardless of extreme bright light or very dark conditions. With a built-in gyro sensor, if an accident occurs it will be saved in a separate portion of memory within the 8GB SD card for viewing. Additional safety and warning features can be activated to avoid frontal collisions or remind you if traffic has moved in front of you.
Additional Features
High Definition Display
HD display delivers vivid colors with high-contrast and sharpness. Featuring an all-new electrostatic capacitive touch panel and HD LCD panel, with a high luminance white LED backlight.
Convenient and Easy-to-Use Capacitive Touch Panel
Provides a high contrast ratio, crystal clear display and vivid text. Easy to use widgets provide access to information screens with a swipe.
Customizable Multi Widget Screen
You can customize your home screen by selecting four widgets. Depending on the model, widget options can include album art of current song, clock, compass, photo frame, visualizer, and more.
USB Type-C
USB Type-C cable and USB Type-A adapter are included to the set.Rapidly charge your compatible Android smartphone with the USB port, up to a maximum of 3.0A
SiriusXM Radio Ready
Access additional music, sports and entertainment content on the go with SiriusXM Radio.
(Optional SiriusXM tuner required, sold separately)
Built-in HD Radio Tuner
HD Radio has the best selection of local radio with amazing features and no monthly fees. HD Radio provides CD sound quality from digital FM stations and FM sound quality from digital AM stations. You can even access additional HD multicasting stations that are not available on traditional analog radio.
Short Chassis Design
Less than 3.5” of depth for more flexible installation
Remote Control (Optional)
This receiver can be operated using the optional remote control KCA-RCDV340.
Video | |
---|---|
Video Input level (RCA jacks) | 1 Vp-p / 75 Ohms |
Video Output level (RCA jacks) | 1 Vp-p / 75 Ohms |
Audio | |
Maximum Power Output (Front&Rear) | 50Wx4 |
Typical Power Output (Front&Rear) | Full Bandwidth Power, (at less than 1%THD), 22Wx4 |
Output frequency band | 20 - 88,000Hz |
Preout level (V) | 5V / 10kOhms |
Preout impedance (Ω) | =< 300 Ohms |
Speaker Impedance (Ω) | 4-8 Ohms |
Operating voltage | 12V DC Car Battery |
General | |
Installation Dimensions (Main Unit Installation size) WxHxD | 178mm x 100mm x 85mm / 7 x 3-15/16 x 3-3/8 inch |
Installation Dimensions (with Sleeve) | 182mm x 112mm x 85mm / 7-3/16 x 4-7/16 x 3-3/8 inch |
Weight Main unit (Sleeve included) | 1.5 kg / 3.2 lb |
FM | |
Usable sensitivity | 9.3dBf |
S/N 30dB | 0.8μV/75Ω |
Quieting sensitivity | 10.2dBf |
DIN S/N 46dB | 1.13μV / 75Ohms |
Frequency response | 30Hz - 15kHz |
(±3.0dB) | 30Hz - 15kHz |
S/N(dB) | 65dB (MONO) |
Selectivity | Over 80dB (±400kHz) |
Stereo separation | 45dB (1kHz) |
AM | |
Frequency Range | 530kHz - 1700kHz |
(Frequency step) | (10kHz) |
Usable sensitivity | 28dBμ |
Video | |
Color system of external video input | NTSC/PAL |
External audio max input level (Mini jacks) | 2 V / 25 kOhms |
FM | |
(Frequency step) | (200kHz) |
Frequency Range | 87.9MHz - 107.9MHz |
Digital AM | |
S/N | 80dB(STEREO) |
(±3.0 dB) | 40Hz - 15kHz |
Frequency Response | 40Hz - 15kHz |
(Frequency step) | (10kHz) |
Frequency Range | 530kHz - 1700kHz |
Digital FM | |
S/N | 80dB (STEREO) |
(±3.0 dB) | 20Hz - 20kHz |
Frequency Response | 20Hz - 20kHz |
(Frequency step) | (200kHz) |
Frequency Range | 87.9MHz - 107.9MHz |
DSP Section | |
Position - Subwoofer Level | -50 to +10dB |
Position - Gain | -8 to 0dB |
Position - Front / Rear /Subwoofer Delay | 0 - 20.01ft (0.03or0.04ft Step) |
3Way X'Over - SLOPE | -12/-18/-24[dB/Oct.] |
3Way X'Over - LOW PASS FILTER frequency | 30/40/50/60/70/80/90/100/120/150/Through[Hz] |
3Way X'Over - SLOPE | -12/-18/-24[dB/Oct.] |
3Way X'Over - SLOPE | -12/-18/-24[dB/Oct.] |
3Way X'Over - Band PASS FILTER frequency | Through/50/60/70/80/90/100/120/150/180/220/250/300[Hz], 250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/Through |
3Way X'Over - HIGH PASS FILTER frequency | 250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k |
2Way X'Over - SLOPE | -6/-12/-18/-24[dB/Oct.] |
2Way X'Over - SLOPE | -6/-12/-18/-24[dB/Oct.] |
2Way X'Over - LOW PASS FILTER frequency | 30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz] |
2Way X'Over - HIGH PASS FILTER frequency | Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz] |
Graphics equalizer - Gain | -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB] |
Graphics equalizer - BAND | 13Band |
Graphics equalizer - frequency (Hz) (BAND1-13) | 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k |
HDMI | |
Input Audio Type | 32K/44.1K/48K/88.2K/96K/176.2K/192K 16/20/24-bit Linear PCM |
Input Resolution | VGA (640x480p @59.94Hz/60Hz), 480p (720x480p @59.94Hz/60Hz), 720p(1280x720p @59.94Hz/60Hz) |
Connector Type | Type-D |
Bluetooth Section | |
Profile | HFP (V1.7) (Hands Free Profile), SPP (Serial Port Profile), A2DP (Advanced Audio Distribution Profile), AVRCP (V1.6) (Audio/Video Remote Control Profile), PBAP (Phonebook Access Profile) |
Multi Profile Support | Multi Profile |
Maximum Communication range | Line of sight approx.10m(32.8ft) |
Audio Codec | SBC / AAC / LDAC |
Frequency | 2.402 - 2.480 GHz |
Technology | Bluetooth Ver5.0 |
Wi-Fi | |
Transfer rates (MAX) | 11a: 54 Mbps / 11b: 11 Mbps / 11g: 54 Mbps / 11n: 300 Mbps / 11ac: 867 Mbps |
Channels | Auto(1-11ch), Auto(149,153,157,161ch) |
Frequency Range | Dual Band ( 2.4GHz / 5GHz ) |
IEEE Standard | 802.11 a/b/g/n/ac |
Wireless Mirroring Section | |
Touch Control | UIBC |
Copyright protection | HDCP2.2 |
Mode | Sink |
USB I/F Section | |
Dynamic range | 89dB |
Signal to Noise ratio | 98.5dB |
Total harmonic distortion 1kHz | 0.010% |
44.1k Sampling | 20 - 20,000 Hz |
48k Sampling | 20 - 22,000 Hz |
96k Sampling | 20 - 44,000 Hz |
Frequency response 192k Sampling | 20 - 88,000 Hz |
Video Decoder | MPEG1/2,MPEG4 / WMV / H.264 / MKV |
Audio Decoder | MP3 / WMA / AAC / WAV / FLAC / Vorbis |
D/A Converter | 24/32Bit |
Maximum Power Supply Current | DC5V=3.0A |
File System | FAT 16/32, exFAT, NTFS |
USB Standard | USB2.0 High Speed |
Connector Type | Type-C |
Monitor Section | |
Back lighting | LED |
Pixel arrangement | RGB striped arrangement |
Effective pixels | 99.99% |
Number of pixels | 2,764,800, 1280H x 720V x RGB |
Drive system | TFT active matrix system |
Display system | AAS LCD panel |
W x H | 152.1 mm x 79.5 mm, 6 x 3-1/8 inch |
Picture size | 6.75 inches(diagonal) wide |
