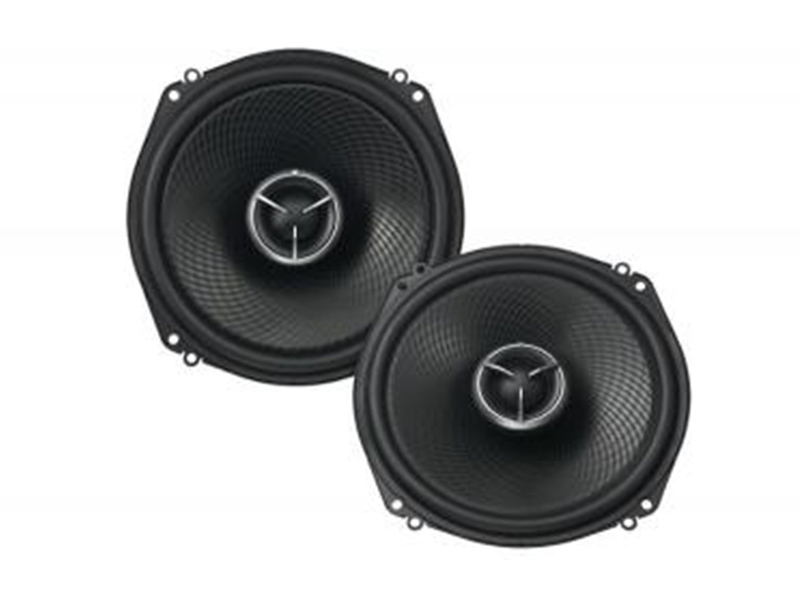

The new KFC-X183C is a true upgrade to a factory speaker system. It can handle up to 280W of of output and can be easily installed in Dodge, GM, Toyota and Chevrolet vehicles. Each pair of KFC-X183C speakers comes with a special multi-fit bracket. This bracket can be easily modified for use in a variety of makes associated with the above mentioned vehicle manufacturers. In addition the speaker features an oversized diaphragm that is 28% bigger than the KFC-X173 so it delivers exceptional audio reproduction.
Product Summary
Peak Power: 280W
Rated Input Power: 80W
4Ohm Impedance
Frequency Response 63Hz - 17kHz
Mounting Depth 2-7/16"
1" Soft Dome Tweeter
Multi Bracket and 6x9 bracket
General Features
Diamond Array Pattern Diaphragm: Yes Woofer
- Woofer Size: 7 in (180mm)
- Woofer Diaphragm: P.P. Cone
- Surround: Rubber
- Basket: Steel (Black)
- Magnet: Ferrite Tweeter
- Tweeter Size: 1 in (25mm)
- Tweeter Diaphragm: Soft Dome Dimensions (without grill)
- Width: 6-9/16 in (166mm)
- Height: 6-9/16 in (166mm)
- Depth: 3-3/16 in (81mm)
- Mounting Depth: 2-7/16 in (62mm)
Warranty: 2-Year
Features | |
---|---|
Nominal Impedance | 4 Ω |
Maximum Peak Power | 280 W |
Rated Input Power (RMS) | 80 W |
Sensitivity | 87 dB/W at 1m |
Frequency Response | 63Hz - 17kHz |
Crossover Frequency | - |
