- 255 Segment 1.5 Line Text Display
- Amazon Alexa Ready
- Spotify Ready
- Bluetooth Direct Access Button
- Variable Color Illumination
- Conformal Coating

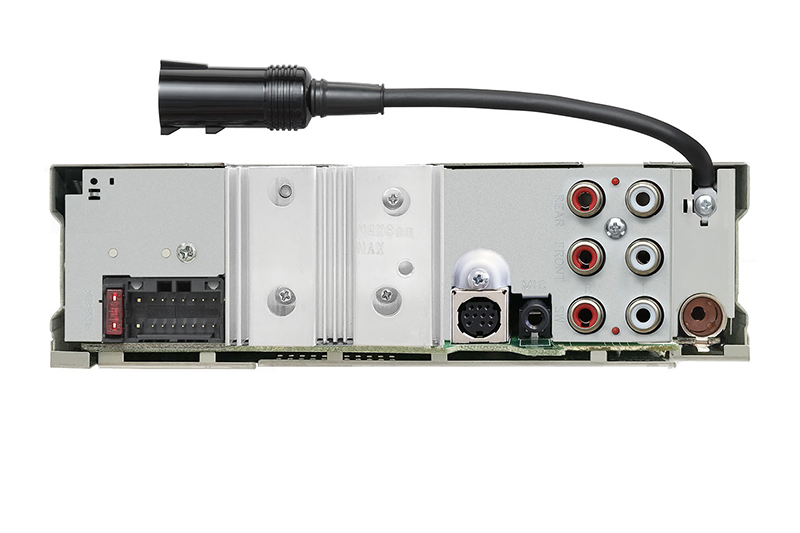

- 3 Preouts 4.0V
Smartphone Connectivity
Enjoy convenient control of popular apps like Spotify and Pandora,built-in Bluetooth for hands-free calls and streaming music,as well as the ability to use your smartphone like a wireless remote control.
The Best Audio Experience
Sound quality enthusiasts will love the playback support of various types of music formats ,including compatibility with FLAC files.Simple touch screen sound customization is also available with its built-in 13-Band EQ and Digital Time Alignment.

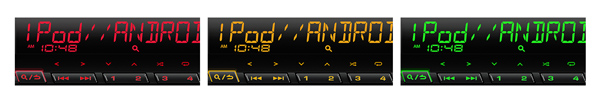

Match Your Mood with Variable Color Illumination
Bright variable color LED's can be adjusted to match any color dash lighting.

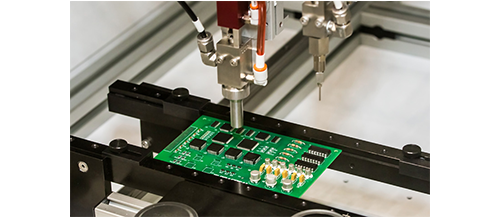

Conformal Coating
Improved moisture resistance of the circuit boards to prevent corrosion.
SiriusXM Radio Ready
Access additional music, sports and entertainment content on the go with SiriusXM Radio. (Optional SiriusXM tuner required, sold separately)
Spanish and French Text Display
On-screen display menu now available in Spanish and French.

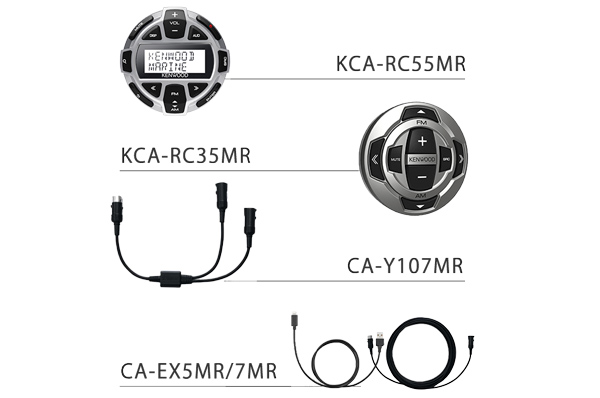

Wired RemoteControl (Optional)
Remote control and extensional remote cables are optionally available.
Remote Control (Optional)
Remote control (KNA-RCDV331) is optionally available.
| GENE | |
|---|---|
| Net Weight (Trim plate and Mounting sleeve: Included) | 1.2(kg) 2.7(lbs) |
| Installation Size (D) | 155.5(mm) 6-1/8(in) |
| Installation Size (H) | 53(mm) 2-1/16(in) |
| Installation Size (W) | 182(mm) 7-3/16(in) |
| Bluetooth | |
| Profile | AVRCP 1.6.1 (Audio/Video Remote Control Profile) |
| GENE | |
| Operating voltage | 12V DC car battery |
| Bluetooth | |
| Profile | A2DP(Advanced Audio Distribution Profile) |
| Profile | PBAP(Phonebook Access Profile) |
| FM | |
| Usable Sensitivity | 8.2dBf |
| Channel Space Selection | - |
| (Frequency step) | (200kHz) |
| Frequency Range | 87.9MHz to 107.9MHz |
| Bluetooth | |
| Frequency Range | 2.402 to 2.480GHz |
| RF Output Power (E.I.R.P.) | +4dBm (MAX), Power Class 2 |
| Maximum Communication range | Line of sight approx.10m(32.8ft) |
| Profile | HFP 1.7.1 (Hands Free Profile) |
| Profile | SPP(Serial Port Profile) |
| FM | |
| S/N 30dB | (0.71μV/75Ω） |
| Quieting Sensitivity | 17.2dBf |
| DIN S/N:46dB | (2.0μV/75Ω） |
| Frequency Response(±3.0dB) | 30Hz to 15kHz |
| S/N | 64.0dB(MONO) |
| Stereo Separation | 40dB(1kHz) |
| AM | |
| Frequency Range | 530kHz to 1700kHz |
| (Frequency step) | (10kHz) |
| Channel Space Selection | - |
| Usable Sensitivity | 29dBμ (28.2μV) |
| CD | |
| Laser Diode | GaAlAs |
| AM | |
| S/N:20dB | - |
| CD | |
| Digital Filter(D/A) | 8 Times OverSampling |
| Spindle Speed | 500 to 200rpm (CLV) |
| Wow & Flutter | Below Measurable Limit |
| Frequency Response | 20Hz to 20kHz(±1dB) |
| Total Harmonic Distortion | 0.02%(1kHz) |
| S/N Ratio (dB) | 99dB(1kHz) |
| MP3 Decode | Compliant with MPEG-1/2 Audio Layer-3 |
| Channel Separation | 90dB |
| Dynamic Range | 92dB |
| WMA Decode | Compliant with WINDOWS MEDIA AUDIO |
| AAC Decode | AAC-LC ".aac" files |
| WAV Decode | - |
| Specifications | |
| Preout Impedance(Ω) | =<600Ω |
| Preout Level(mV)/Load -Unbalanced | 4000mV/10kΩ |
| Speaker Impedance(Ω) | 4 to 8Ω |
| USB I/F | |
| File System | FAT12 / 16 / 32 |
| Maximum Supply current | DC5V(DC logo) 1.5A |
| USB | USB 1.1 / 2.0 High Speed |
| MP3 Decode | Compliant with MPEG-1/2 Audio Layer-3 |
| AAC Decode | AAC-LC ".aac",".m4a" files |
| WMA Decode | Compliant with Windows Media Audio |
| WAV Decode | Linear-PCM |
| FLAC Decode | FLAC file (Up to 24bit/96kHz) |
| AUX | |
| Frequency Response | 20Hz to 20kHz ±3dB |
| Input | |
| Input Impedance | 30kΩ |
| Input Maximum Voltage | 1000mV |
| AMP | |
| Full Bandwidth Power (at less than 1%THD) | 22Wx4 |
| Maximum Power | 50Wx4 |
| TONE | |
| Band1 | 62.5Hz ±9dB |
| Band2 | 100Hz ±9dB |
| Band3 | 160Hz ±9dB |
| Band5 | 400Hz ±9dB |
| Band4 | 250Hz ±9dB |
| Band7 | 1kHz ±9dB |
| Band6 | 630Hz ±9dB |
| Band9 | 2.5kHz ±9dB |
| Band8 | 1.6kHz ±9dB |
| Band12 | 10kHz ±9dB |
| Band11 | 6.3kHz ±9dB |
| Band10 | 4kHz ±9dB |
| Band13 | 16kHz ±9dB |
| Bluetooth | |
| Version | Bluetooth 4.2 |
