- 6.8" High Definition Monitor with Capacitive Touch Panel
- Android Auto™ & Android Auto™ Wireless
- Wired and Wireless Apple CarPlay™
- High-Resolution Audio Wireless
- Wireless Mirroring for Android
- USB Mirroring for iPhone and Android
- 4 Camera Inputs / HD Rear Camera Ready
- Built-in Bluetooth, HD Radio & WiFi
- 3 Preouts 5V

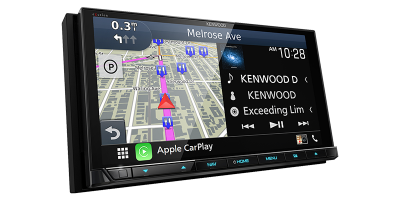

- Garmin Navigation with 3D Terrain View
Advanced Navigation
Equipped with the industry leading Garmin navigation software, offering a variety of display options to make your driving easier.
Smartphone Connectivity
Enjoy convenient control of popular apps like Spotify and Pandora, built-in Bluetooth for hands-free calls and streaming music, as well as the ability to use your smartphone like a wireless remote control.
The Best Audio Experience
Sound quality enthusiasts will love the playback support of various types of music formats, including compatibility with FLAC files. Simple touch screen sound customization is also available with its built-in 13-Band EQ and Digital Time Alignment.
Safe Driving
Keeping you safe on the road ahead is our top priority.
Additional Features

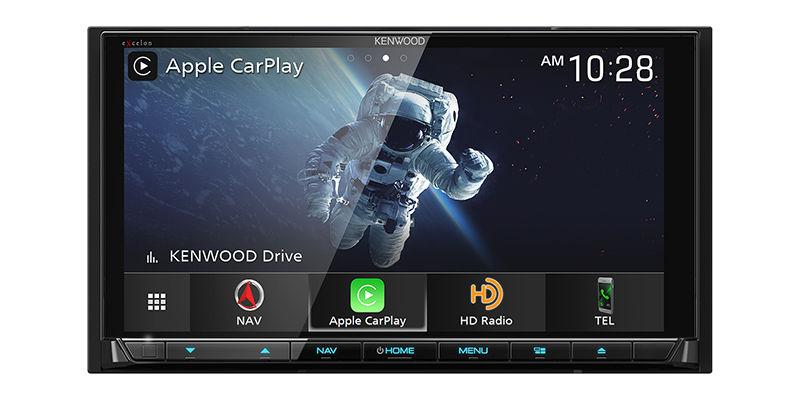

High Definition Display
HD display delivers vivid colors with high-contrast and sharpness. Featuring an all-new electrostatic capacitive touch panel and HD LCD panel, with a high luminance white LED backlight.
Convenient and Easy-to-Use Capacitive Touch Panel
Provides a high contrast ratio, crystal clear display, and vivid text. Easy to use widgets provide access to information screens with a swipe.

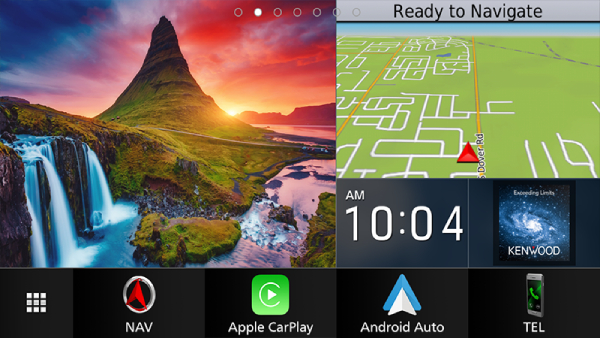

Customizable Multi Widget Screen
You can customize your home screen by selecting four widgets. Depending on the model, widget options can include album art of current song, clock, compass, photo frame, visualizer, weather, turn-by-turn, Garmin navigation and more.
Equipped with Dual USB Ports
Play your music from one USB port and use the other to charge your device, or charge both at the same time.
SiriusXM Radio Ready
Access additional music, sports and entertainment content on the go with SiriusXM Radio.
(Optional SiriusXM tuner required, sold separately)
Built-in HD Radio Tuner
HD Radio has the best selection of local radio with amazing features and no monthly fees. HD Radio provides CD sound quality from digital FM stations and FM sound quality from digital AM stations. You can even access additional HD multicasting stations that are not available on traditional analog radio.

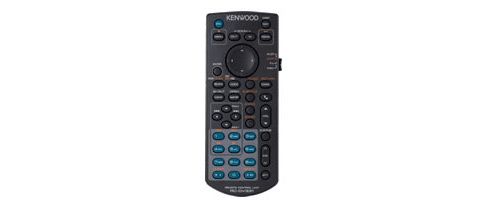

Remote Control (Optional)
This receiver unit can be operated using the optional remote control KNA-RCDV331.
Monitor Section | |
---|---|
Picture size | 6.75 inches(diagonal) wide |
W x H | 152.1 mm x 79.5 mm, 5-63/64 x 3-1/8 inch |
Display system | AAS LCD panel |
Drive system | TFT active matrix system |
Number of pixels | 2,764,800 |
Number of pixels | 1280H x 720V x RGB |
Effective pixels | 99.99% |
Pixel arrangement | RGB striped arrangement |
Back lighting | LED |
DVD Section | |
D/A Converter | 24 / 32Bit |
Audio Decoder | Linear PCM |
Audio Decoder | Dolby Audio |
Audio Decoder | MP3 / WMA / AAC / WAV / FLAC / Vorbis |
Video Decoder | MPEG1/2,MPEG4 / WMV / H.264 / MKV |
Wow & Flutter | Below Measurable Limit |
Frequency response 96k Sampling | 20 - 44,000 Hz |
48k Sampling | 20 - 22,000 Hz |
44.1k Sampling | 20 - 20,000 Hz |
Total harmonic distortion 1kHz | 0.010% |
Signal to Noise ratio | 90.5dB (DVD-Video 96k) |
Dynamic range | 89dB (DVD-Video 96k) |
DISC Format | DVD-Video / VIDEO-CD / CD-DA |
Quantifying bit number | 16 / 20 / 24bit |
USB I/F Section | |
USB Standard | USB2.0 High Speed |
File System | FAT 16/32, exFAT, NTFS |
Maximum Power Supply Current | DC5V=1.5A |
D/A Converter | 24/32Bit |
Audio Decoder | MP3 / WMA / AAC / WAV / FLAC / Vorbis |
Video Decoder | MPEG1/2,MPEG4 / WMV / H.264 / MKV |
SD Section | |
SD Standard | SD / SDHC / SDXC |
Compatible File System | FAT 16/32, exFAT, NTFS |
Capacity | Maximum 2T Byte |
Data Transfer Rate | Maximum 25MB/sec |
Audio Decoder | MP3 / WMA / AAC / WAV / FLAC / Vorbis |
Video Decoder | MPEG1/2,MPEG4 / WMV / H.264 / MKV |
Wireless Mirroring Section | |
Mode | Sink |
Copyright protection | HDCP2.2 |
Touch Control | UIBC |
Wi-Fi | |
IEEE Standard | 802.11 a/b/g/n/ac |
Frequency Range | Dual Band ( 2.4GHz / 5GHz ) |
Channels | Auto(1-11ch), Auto(149,153,157,161ch) |
Transfer rates (MAX) | 11a: 54 Mbps / 11b: 11 Mbps /, 11g: 54 Mbps / 11n: 300 Mbps /, 11ac: 867 Mbps |
Output Power 2.4GHz/SISO | 11b:14dBm±2dB / 11g:13dBm±2dB /, 11n(20MHz):12dBm±2dB |
Output Power 5GHz/SISO | 11a:9dBm±2dB /, 11n(20MHz):9dBm±2dB / 11n(40MHz):8dBm±2dB /, 11ac(20MHz):9dBm±2dB / 11ac(40MHz):8dBm±2dB / 11ac(80MHz):8dBm±2dB |
Output Power 5GHz/MIMO | 11n(20MHz):11dBm±2dB / 11n(40MHz):11dBm±2dB /, 11ac(20MHz):11dBm±2dB / 11ac(40MHz):11dBm±2dB / 11ac(80MHz):11dBm±2dB |
Bluetooth Section | |
Technology | Bluetooth Ver5.0 |
Frequency | 2.402 – 2.480 GHz |
RF Output Power (E.I.R.P.) | +4dBm (MAX), Power Class 2 |
Maximum Communication range | Line of sight approx.10m(32.8ft) |
Audio Codec | SBC / AAC / LDAC |
Multi Profile Support | Multi Profile |
Profile | HFP (V1.7) (Hands Free Profile) |
Profile | SPP (Serial Port Profile) |
Profile | A2DP (Advanced Audio Distribution Profile) |
Profile | AVRCP (V1.6) (Audio/Video Remote Control Profile) |
Profile | - |
Profile | PBAP (Phonebook Access Profile) |
DSP Section | |
Graphics equalizer - BAND | 13Band |
Graphics equalizer - frequency (Hz) (BAND1-13) | 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k |
Graphics equalizer - Gain | -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB] |
2Way X'Over - HIGH PASS FILTER frequency | Through/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz] |
2Way X'Over - SLOPE | -6/-12/-18/-24[dB/Oct.] |
2Way X'Over - LOW PASS FILTER frequency | 30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz] |
2Way X'Over - SLOPE | -6/-12/-18/-24[dB/Oct.] |
3Way X'Over - HIGH PASS FILTER frequency | 250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k |
3Way X'Over - SLOPE | -12/-18/-24[dB/Oct.] |
3Way X'Over - Band PASS FILTER frequency | Through/50/60/70/80/90/100/120/150/180/220/250/300[Hz], 250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/Through |
3Way X'Over - SLOPE | -12/-18/-24[dB/Oct.] |
3Way X'Over - LOW PASS FILTER | frequency 30/40/50/60/70/80/90/100/120/150/Through[Hz] |
3Way X'Over - SLOPE | -12/-18/-24[dB/Oct.] |
Position Front / Rear /Subwoofer Delay | 0 - 20.01ft (0.03or0.04ft Step) |
Gain | -8 to 0dB |
Subwoofer Level | -50 to +10dB |
Digital FM | |
Frequency Range | 87.9MHz - 107.9MHz |
(Frequency step) | (200kHz) |
Frequency Response | 20Hz - 20kHz |
(±3.0 dB) | 20Hz - 20kHz |
S/N | 80dB (STEREO) |
Digital AM | |
Frequency Range | 530kHz - 1700kHz |
(Frequency step) | (10kHz) |
Frequency Response | 40Hz - 15kHz |
(±3.0 dB) | 40Hz - 15kHz |
S/N | 80dB (STEREO) |
FM | |
Frequency Range | 87.9MHz - 107.9MHz |
(Frequency step) | (200kHz) |
Usable sensitivity | 9.3dBf |
S/N30dB | 0.8μV/75Ω |
Quieting sensitivity | 10.2dBf |
DIN S/N 46dB | 1.13μV / 75Ohms |
Frequency response | 30Hz - 15kHz |
(±3.0 dB) | 30Hz - 15kHz |
S/N (dB) | 65dB (MONO) |
Selectivity | Over 80dB (±400kHz) |
Stereo separation | 45dB (1kHz) |
AM | |
Frequency Range | 530kHz - 1700kHz |
(Frequency step) | (10kHz) |
Usable sensitivity | 28dBμ |
Video | |
Color system of external video input | NTSC/PAL |
External video input level (RCA jacks) | - |
External video input level (Mini jacks) | 1 Vp-p / 75 Ohms |
External audio max input level (RCA jacks) | - |
External audio max input level (Mini jacks) | 2 V / 25 kOhms |
Video Input level (RCA jacks) | 1 Vp-p / 75 Ohms |
Video Output level (RCA jacks) | 1 Vp-p / 75 Ohms |
Audio Output level (RCA jacks) | - |
Audio Output level (Mini jacks) | 0.9 V / 10 kOhms |
Analog RGB input | - |
Audio | |
Maximum Power Output (Front&Rear) | 50Wx4 |
Typical Power Output (Front&Rear) | Full Bandwidth Power |
Typical Power Output (Front&Rear) | (at less than 1%THD) |
Typical Power Output (Front&Rear) | 22Wx4 |
Output frequency band | 20 - 88,000Hz |
Preout level (V) | 5V / 10kOhms |
Preout impedance (Ω) | =< 300 Ohms |
Speaker Impedance (Ω) | 4-8 Ohms |
Navigation Section | |
Receiver | High-sensitivity GNSS receiver |
Receiving frequency | GPS:1575.42MHz GLONASS:1598.0625~1605.375MHz (C/A code ) |
Acquisition Times | Cold: 26 seconds(typ), All satellites at -130dBm Without aiding |
Update Rate | 1/second, continuous |
Accuracy | Position: < 2.0meters,CEP, at -130dBm |
Accuracy | Velocity: 0.05meter/sec |
Positioning Method | GPS/GLONASS |
Antenna | External GNSS Antenna |
Installation Dimensions WxHxD | 178mm x 100mm x 160mm, 7 x 3-15/16 x 6-5/16 inch |
(with Sleeve) | 182mm x 112mm x 163mm, 7-3/16 x 4-7/16 x 6-7/16 inch |
Weight Main unit | 2.5 kg, 5.5 lb, (Excluding trim plate and sleeve) |
