- 10" 4-ohm shallow-mount subwoofer
- Carbon-glass fiber composite cone with butyl rubber surround
- Cast aluminum basket
- Power range: 50-250 watts RMS
- Peak power: 1,000 watts
- Frequency response: 35-800 Hz
- Sensitivity: 90 dB
- Mounting depth: 3-3/8"
- Sealed box volume: 0.6 cu. ft.
- Ported box volume: 0.6 cu. ft.
Features
Flat Subwoofer: The Kenwood eXcelon flat subwoofer design is approximately 40% slimmer in height than a standard subwoofer. This makes them ideal for installation in the tightest of spaces such as behind or under the seat of a pickup truck.
Carbon-Glass Fiber Cone: The eXcelon flat woofer uses a carbon-glass fiber honeycomb cone which allows the woofer to be efficient and durable at the same time.
Rubber Surround: The Kenwood woofer features a smooth linear rubber surround for added durability and increased excursion resulting in exceptional deep bass response.
Super Linear Spider: The flat woofer utilizes a super linear spider for maximum control over the woofer's linear motion to improve overall sound quality.
Heat Transfer System: The Kenwood woofer features an advanced Heat Transfer System designed specifically for its slim-design to provide proper ventilation to keep the woofer cool.
Aluminum-Cast Basket: The woofer is housed in a cast-aluminum basket for increased rigidity and long-lasting reliability.

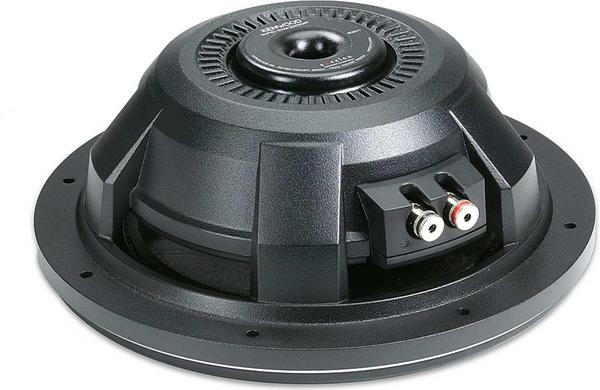

Spring Terminals: The flat woofer utilizes a pair of silver-plated spring terminals on one side of the woofer for connection to your amplifier's speaker wiring. The spring terminals will accept up to 10 AWG speaker wire.
Concealing Ring: The eXcelon woofer comes supplied with a removable, rubber concealing ring used to hide the woofer's mounting screws for a neat and professional looking installation. The concealing ring increases the top mounting height to 1".
Enclosure Compatibility
Sealed BoxVolume: The sealed box size recommended by Kenwood is 0.6 cu/ft.
Vented Box Volume: The vented box size recommended by Kenwood range is 0.6 cu/ft. One 3" diameter x 11" long port should be used with a 0.6 cu/ft enclosure.
Specifications | |
---|---|
Xmax (millimeters) | 7.5 |
Qts | 0.72 |
Fs (Hz) | 38.6 |
Vas (liters) | 21.05 |
Cutout Diameter or Length (inches) | 9 1/8 |
Bottom Mount Depth (inches) | 3 15/16 |
Top Mount Depth (inches) | 3 3/8 |
Peak Power Handling (Watts) | 1000 |
RMS Power Range (Watts) | 50-250 |
Frequency Response | 35 - 800 Hz |
Sensitivity | 90 dB at 1 watt |
Dual Voice Coil | No |
Free-Air | No |
Port length (inches) | 11 |
Port diameter (inches) | 3 |
Ideal Ported Box Volume (cubic feet) | 0.6 |
Ideal Sealed Box Volume (cubic feet) | 0.6 |
Surround Material | Butyl rubber |
Cone Material | Carbon-glass fiber |
Impedance | 4 ohms |
Size | 10-inch |
