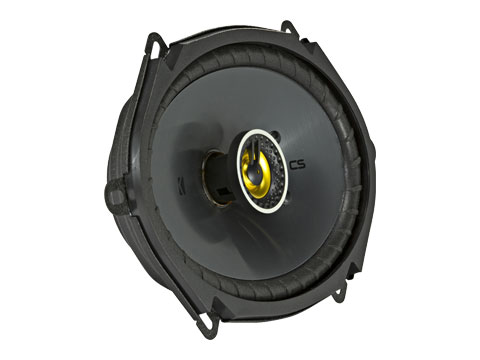

Kicker CS Series 6x8 Inch Coaxial Speakers - 46CSC684
46CSC684
Literature
CS Series CSC68
CS-Series 6x8-inch Coaxial Speakers are the perfect way to upgrade your factory system.
CS-Series Coaxials deliver remarkable performance and ultra-clean bass with a heavy-duty motor/magnet structure not found in stock speakers. A stamped-steel frame supports a rigid polypropylene cone with EVC™ (Extended Voice Coil) technology for the best sonic quality. Using zero-protrusion PEI tweeters with neodymium magnets, you get the clarity you need without interfering with factory grilles.
These CS speakers work best with 75 watts of recommended power. See below for more details.
- Fits nearly every car made
- Zero-protrusion tweeters to fit nearly any factory depth
- Woofer EVC™ (Extended Voice Coil) tech assists with precise linear excursion
- UV-treated poly-foam surround resists heat or direct sunlight
- Large woofer magnet in a heavy-duty motor for ultra-clean bass
- PEI-tweeter construction provides superb clarity
- Neodymium tweeter magnets allow for increased volume in high frequencies
| Specifications | |
|---|---|
| Woofer Surround Material | Polyester foam |
| Woofer Cone Material | Polypropylene |
| Tweeter Design | Balanced dome |
| Tweeter Dome Material | PEI [polyether imide] |
| Tweeter Magnet Material | Neodymium |
| Grilles | No |
| Tweeter Protrusion [ in, mm ] | 0 |
| Bottom Mount Depth [ in, mm ] | 2 9/16, 65 |
| Top Mount Depth [ in, mm ] | 2 3/16, 56 |
| Mounting Hole Diameter [ in, mm ] | 5 x 7 3/16, 126x182 |
| Effective Frequency Range [ Hz ] | 45-20k |
| Sensitivity - SPLo [ dB @ 1W, 1m ] | 90 |
| Recommended Amplifier Power [ watts RMS ] | 75 |
| Peak Power [ watts, per ANSI/CTA-2031-A ] | 225 |
| DC Resistance [ ohm ] | 3.5 |
| Tweeter Size [ in, mm ] | 1/2, 13 |
| Woofer Size [ in, mm ] | 6x8, 160x200 |
| Speaker Design | 2 - way |
