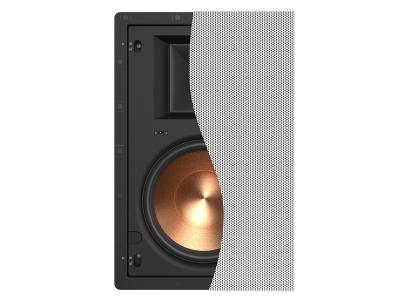

PRO-18RW
Featuring a 8” Injection Molded Graphite (IMG) Woofer and 1” Pivot Aluminum Dome ABS Tractrix® Horn-Loaded Tweeter, the PRO-18RW brings incredible acoustics with the signature Klipsch sound. Featuring the SecureFit™ Installation System, the Klipsch Professional Series Reference speakers are the ideal choice for custom home installation audio.
Features:
- 8” Injection Molded Graphite (IMG) Woofer
- 1” Pivot Aluminum Dome ABS Tractrix® Horn-Loaded Tweeter
- Exclusive, modular SecureFit™ Installation System
- Bezel-Free square and round paintable magnetic grilles
- Controlled Dispersion™ Technology
- Magnetic paint shield
SECUREFIT™ INSTALLATION SYSTEM
The exclusive modular installation system allows for the dog legs to be engaged by hand to a preset clamping force, eliminating the possibility of overtorquing. The speaker module is fixed to the bezel using machine screws instead of traditional drywall screws for a more robust, acoustically stable installation.
CONTROLLED DISPERSION™ TECHNOLOGY
Controlled Dispersion™ Technology allows for the tweeter to be aimed up to 15° in any direction. This provides the perfect on-axis frequency response to off-center listening positions and the ideal solution for challenging installation positions.
ALL NEW, BEZEL-FREE MAGNETIC GRILLE
A completely redesigned powder coated magnetic steel grille eliminates the bezel for seamless, pristine integration into the living space.
PVC PAINT SHIELD INCLUDED
Also included is a magnetic PVC paint shield that can be used to cover the speaker module to protect it from paint or construction dust during renovations or remodels.
| Specifications | |
|---|---|
| Mounting Depth | 3.9” (9.9cm) |
| Cutout Diameter | 14.8” H X 9.25” W (37.5cm H X 23.5cm W) |
| Product Dimensions | 10.16” W x 15.75” H x 4.0” D (25.8cm H x 40.0cm W x 10.1cm D) |
| Finish | Black Baffle/Frame, White Paintable Grille |
| Enclosure Type | ABS/Infinite Baffle |
| Impedance | 8 Ohm Compatible |
| Coverage Angle | 90° x 90° |
| Power Handling | 50W RMS / 200W Peak |
| Sensitivity | 95 dB @ 2.83V / 1m |
| Low Frequency Driver | 8" (20.32cm) IMG Woofer |
| High Frequency Driver | 1" (2.54cm) Aluminum Dome Tweeter mated to a 90°x90° Tractrix® Horn |
| Frequency Range | 56Hz - 23kHz +/- 3dB |
| Product Weight | 7.9lbs (3.6kg) |
| Included | Grille, Paint Shield |
| Installation Kit | IK-800-W II or IK-800-W (Sold Separately) |
| Built From | 2017 |
