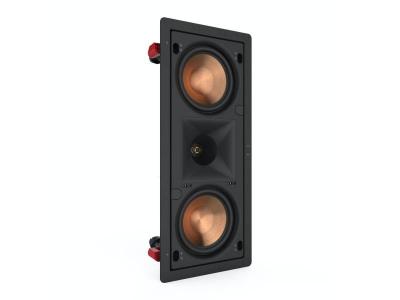

Featuring dual 5.25” Injection Molded Graphite (IMG) Woofer and 1” Pivot Aluminum Dome ABS Tractrix® Horn-Loaded Tweeter, the PRO-25RW LCR brings incredible acoustics with the signature Klipsch sound. Featuring the SecureFit™ Installation System, the Klipsch Professional Series Reference speakers are the ideal choice for custom home installation audio.
- Dual 5.25” Injection Molded Graphite (IMG) Woofer
- 1” Pivot Aluminum Dome ABS Tractrix® Horn-Loaded Tweeter
- Exclusive, modular SecureFit™ Installation System
- Bezel-Free square and round paintable magnetic grilles
- Magnetic paint shield
SECUREFIT™ INSTALLATION SYSTEM
The exclusive modular installation system allows for the dog legs to be engaged by hand to a preset clamping force, eliminating the possibility of overtorquing. The speaker module is fixed to the bezel using machine screws instead of traditional drywall screws for a more robust, acoustically stable installation.
CONTROLLED DISPERSION™ TECHNOLOGY
Controlled Dispersion™ Technology allows for the tweeter and woofer to be aimed up to 15° in any direction. This provides the perfect on-axis frequency response to off-center listening positions and the ideal solution for challenging installation positions.
ALL NEW, BEZEL-FREE MAGNETIC GRILLE
A completely redesigned powder coated magnetic steel grille eliminates the bezel for seamless, pristine integration into the living space.
PVC PAINT SHIELD INCLUDED
Also included is a magnetic PVC paint shield that can be used to cover the speaker module to protect it from paint or construction dust during renovations or remodels.
|Mounting Depth||3.78” (9.35cm)|
|Cutout Dimensions||16.5” H X 6.5” W (41.9cm H X 16.5cm W)|
|Product Dimensions||7.5” W x 17.4” H x 3.8” D (19.1cm H x 44.2cm W x 9.6cm D)|
|Finish||Black Baffle/Frame, White Paintable Grille|
|Enclosure Type||ABS/Infinite Baffle|
|Impedance||8 Ohm Compatible|
|Coverage Angle||90° x 90°|
|Power Handling||75W RMS / 300W Peak|
|Sensitivity||93 dB @ 2.83V / 1m|
|Low Frequency Driver||Dual 5.25" (13.34cm) IMG Woofers|
|High Frequency Driver||1" (2.54cm) Aluminum Dome Tweeter mated to a 90°x90° Tractrix® Horn|
|Frequency Range||56Hz - 23kHz +/- 3dB|
|Product Weight||6.5lbs (2.95kg)|
|Included||Grille, Paint Shield|
|Installation Kit||IK-502-W II or IK-502-W (Sold Separately)|
