Paradigm 5.5 Inch CI Home Series In-Wall Speaker - CI Home H55-IW v2

$19999 / Each
Or
as low as
$33.33
Per month over
6 months.


Available to order

Literature

The Affordable Audiophile Collection. Your "Go-To" Custom Install Speaker. The CI HOME series address the important considerations when selecting custom installation speakers: truly superior sound, trickle-down technologies, easy installation, and a bezel-free micro-perf grille with an incredibly discreet aesthetic.

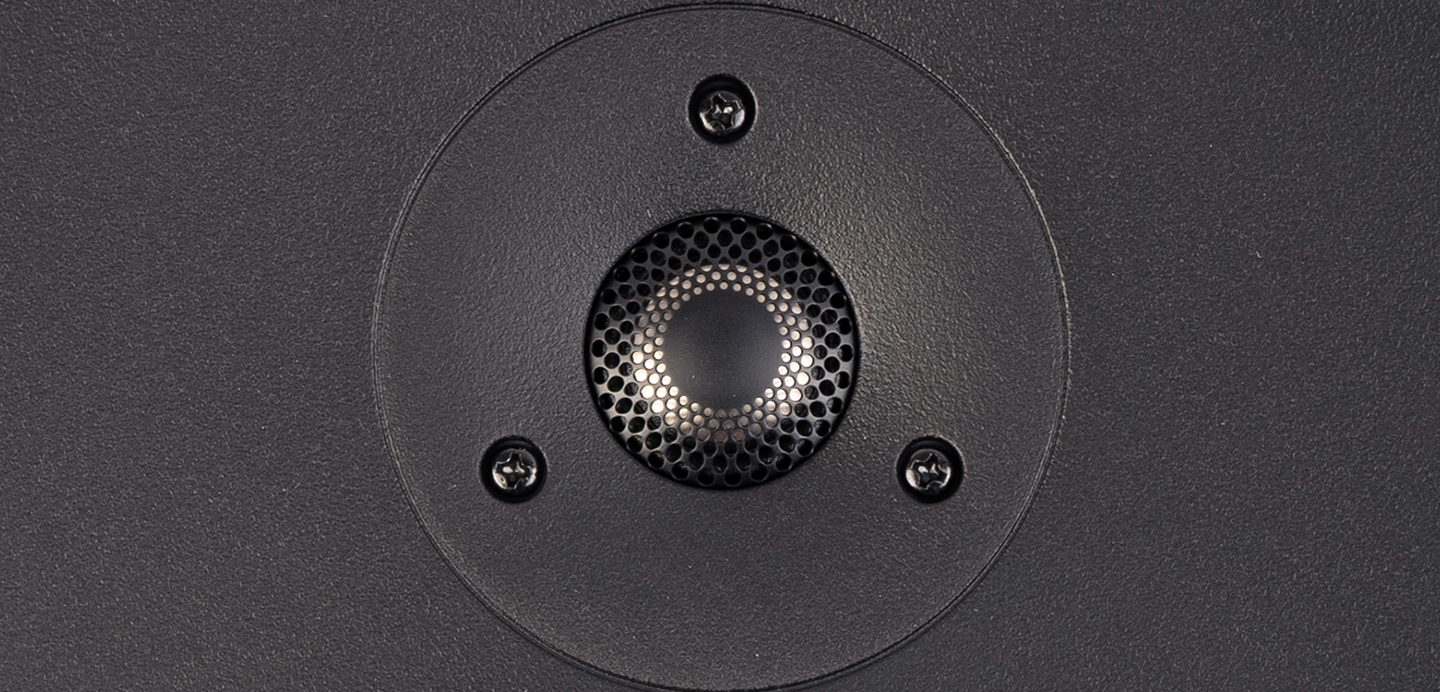

Paradigm's Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens

protects the delicate tweeter dome. PPA™ technology acts as the Phase Plug, blocking out-of-phase frequencies for smoother, extended high frequencies with incredible detail and higher output. Ferro-fluid damped and cooled to ensure smooth high-frequency performance with amazing clarity across a wide listening area.



Dual Directional Soundfield™

30°-Angled Guided Soundfield™



Dual-Directional Soundfield™ & 30°-Angled Guided Soundfield™ Models

Our Stereo/Mono (SM) systems offer rich pure-fidelity dual-channel L/R sound from a single speaker. The Dual Directional Soundfield™ provides wider-than-normal dispersion making the systems ideal in small rooms that are less suited to a stereo pair, or where a single speaker is preferred.

Drivers in our 30°-Angled Guided Soundfield™ sit at a 30° angle from the ceiling, enabling you to adjust the direction of the sound, without compromising the curial sound dispersion pattern between drivers and baffle, thereby preserving sonic integrity. 30°-Angled Guided Soundfield™ systems are ideal as front speakers and as surround and/or rear speakers in a home theatre system.



Superior Mineral-filled Polypropylene Bass/ Midrange Cones: Oversized computer optimized ferrite magnets and high-power motor structures deliver detailed midrange performance with clean, extended bass.



Easy-access binding posts: High-quality binding posts feature a larger wire access hole and connect via banana plug, pin or bare wire.



Magnetically attached grilles: neodymium magnets hold grilles firmly in place.



Bezel-Free, Micro-Perf Grilles allow you to mix and match CI Home, CI Pro and CI Elite Series for a seamless aesthetic from room-to-room!


Specifications
DESIGN2-driver, 2-way in-wall,ABS chassis & mounting clamps
CROSSOVER2nd-order electro- acoustic at 2.5 kHz
FREQUENCY RESPONSE ON-AXIS±2 dB from 75 Hz - 20 kHz
HIGH FREQUENCY DRIVER3/4" (1.9cm) Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens
MID/BASS FREQUENCY DRIVER5.5" (13.9cm) Mineral-filled Polypropylene Cone
LOW FREQUENCY EXTENSION60 Hz
SENSITIVITY ROOM / ANECHOIC88 dB / 84 dB
FREQUENCY RESPONSE 30° OFF-AXIS±2 dB from 75 Hz - 18 kHz
SUITABLE AMPLIFIER POWER RANGE15-80 W
MAXIMUM INPUT POWER50 W
IMPEDANCECompatible with 8 ohms
WEIGHT2.5 lbs (1.2 kg)
FINISHESWhite, paintable grille, black speaker
ACCESSORIES (INCLUDED)PB-6X9N
CUT-OUT DIMENSIONS9-3/16" x 6-1/8" (23.3cm x 15.6cm)
MINIMUM MOUNTING DEPTH (DEPTH REQUIRED IS THE DISTANCE BETWEEN 1/2" DRYWALL, OR SIMILAR MATERIAL.)2-3/4" (7cm)
DIMENSIONS HXWXD (INCLUDES GRILLE).10-1/4" x 7-1/8" x 3-3/8" (25.9cm x 18.2cm x 8.7cm)
