PowerBass 10 Inch 4 Ohm Subwoofer - XL-1040
Authorized Dealer Price Match Guarantee
Price Match Guarantee
Andre's Electronic Experts offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
$219.99 CAD Save $40.00

Or as low as $36.67/month over 6 months. Apply Now


Available to order

Literature
  • New PBX Dust Cap
  • 10" 4-Ohm Subwoofer
  • 350 watt RMS/700 Watts Max
  • Proprietary Non-pressed Paper DDC Coated Cone
  • High Roll Santoprene® Surround
  • 2.0" Vented BASV Voice Coil Former
  • Perimeter Aero-Vent Voice Coil Cooling Vents
  • Proprietary Non Resonance Polycarbonate/Glass Fiber Basket
  • Chrome Push Terminals
  • Optimally Designed for Both Small Sealed or Ported Enclosures

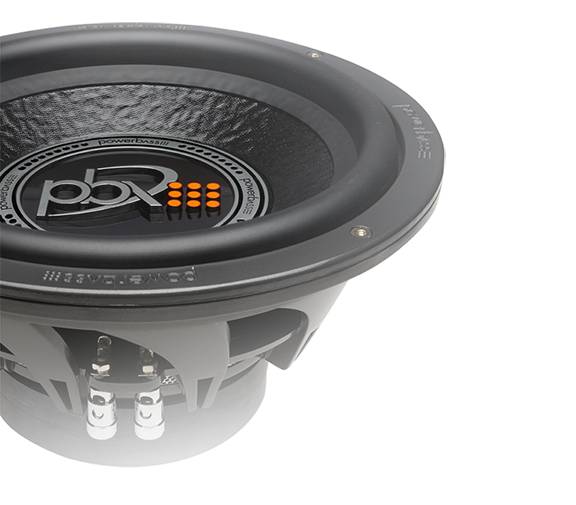

XL-1040 10" SUBWOOFER WITH XTRA LARGE BASS

Updated with our new PBX imprinted dustcap and sand blasted back plate finish, our XL subwoofers are designed to be bulletproof-reliable with all of the features of the rest of the Xtreme range, but in a more affordable package.

Boasting a custom turbine style frame constructed of polycarbonate/glass fiber, this unique basket supports dual stack magnets and a extended dome backplate.

We utilize a combination of perimeter and pole venting to keep air circulating over the voice coil so everything stays cool.

A non-pressed paper cone was selected for its natural smooth bass reproduction and its ability to provide high output with low distortion even under the stress of high SPL. Finally, to make sure the power gets to the subwoofer, we used chrome push terminals for maximum current transfer.

The XL subwoofers are Xtremely versatile and offer amazingly low bass whether installed in a small sealed enclosure or ported enclosure and are available in 8”, 10” & 12”

Specifications
Nominal Impedance: Dual 4-ohm
BL: 14.904
Inputs: Single Coil
Subwoofer Frequency Range: 35 Hz - 500 Hz
Voice Coil Size: 2 in
Material: Non Pressed Paper
Magnet Size: 164 oz
Sensitivity (1W / 1M): 85 dB
Motor Structure: 164 oz
Cutout Diameter: 9 5/16" (237mm)
Mounting Depth: 5.23 in
Xmax: 8.5 mm
Spl: 84.2 dB
No: 0.163%
Qts: 0.572
Qes: 0.655
Qms: 3.7
Mms: 142.9 g
Cms: 106.014 uM/N
Vas: 19.842 Ltr
SD:363.05 sqCM
Fs: 38.2 Hz
Test Impedance: 3.7-ohm
VC Impedance: 4-ohm
Size: 10 in
Sensitivity: 85 dB
Frequency Response: 35 Hz - 500 Hz
Voice Coil Size: 2 in
Power Handling (RMS/Peak): 350 / 700 watts
