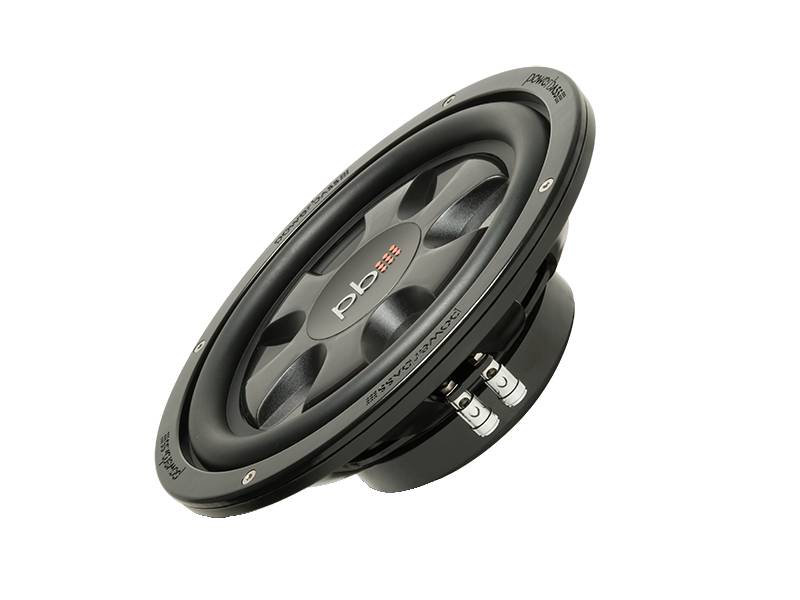

PowerBass Thin Mount 10 Inch Single 4-Ohm Subwoofer - S10T
Authorized Dealer Price Match Guarantee
Price Match Guarantee
Andre's Electronic Experts offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.
$174.99 CAD Save $45.00

Or as low as $29.17/month over 6 months. Apply Now


Available to order

Literature
  • Thin Mount 10" Single 4-Ohm Subwoofer
  • 275 watt RMS/550 Watts Max
  • Single Piece Custom Injected Molded Cone
  • Large Roll Rubber Surround
  • 2" Vented KSV Voice Coil Former
  • Perimeter Aero Voice Coil Venting
  • Poly-carbonate/Glass Fiber Composite Turbine Basket
  • Super Shallow 3.25" Mounting Depth
  • Chrome Push Terminals
  • Optimally Designed for Small Sealed Enclosures

S-10T 10" SHALLOW MOUNT SUBWOOFER

Our new Thin Woofers are only 3.25" deep but don't let its lean size fool you, these woofers are big on bass. We gave our engineers the difficult task of building a thin woofer that was up to the PowerBass reputation of great performance at an exceptional value.

Starting with our proprietary poly-carbonate/glass fiber composite frame, we built a basket that is stronger then steel and lighter then cast aluminum. Our unique one piece cone is another break through in woofer technology, more durable and stiffer then paper, this injected molded cone is able to withstand the abuse that comes from delivering deep bass in a small enclosure.

By adding a tough wide roll rubber surround and 2-inch vented voice coil, we were able to develop a woofer that has the ability to play loud in small places. The PowerBass Thin Woofer makes true bass a reality.

Specifications
SD: 363 sqCM
Vas: 18.43 Ltr
Cms: 98.49 uM/N
Mms: 156.3 g
Qms:3.4
Qes: 0.803
Qts: 0.653
No: 0.15%
Spl: 90 dB
Xmax: 6.8 mm
Mounting Depth: 3.25 in
Cutout Diameter: 9 3/16" (233.0mm)
Motor Structure: 116 oz
Sensitivity (1W / 1M): 90 db
Magnet Size: 116 oz
Material: Injection molded Polypropylene
Voice Coil Size: 2 in
Subwoofer Frequency Range: 34 Hz - 400 Hz
Inputs: Single Coil
BL: 12.6
Nominal Impedance: Single 4-ohm
Fs: 40.6 Hz
Test Impedance: 3.2-ohm
VC Impedance: 4-ohm
Size: 10 in
Sensitivity: 90 dB
Frequency Response: 34 Hz - 400 Hz
Voice Coil Size: 2 in
Power Handling (RMS/Peak): 275 / 550 watts
