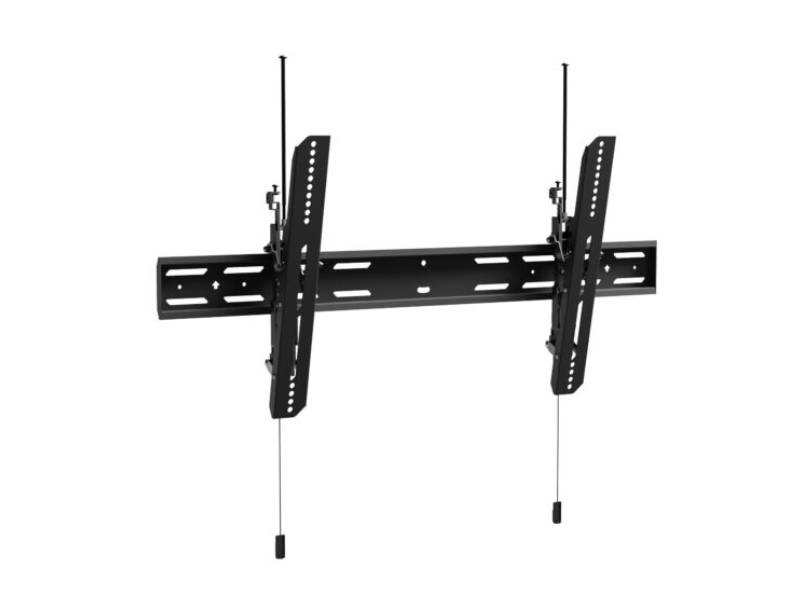

Kanto Low-Profile Tilt Mount for Large TVs - PT500
PT500
The PT500 is a heavy-duty tilting wall mount engineered for the next generation of large displays. Built to support screens up to 120” and weighing up to 250 lb, this robust mount features an expanded VESA pattern and an oversized wall plate for secure installation across multiple studs. With 12° of forward tilt to reduce glare and extended leveling screws for precision alignment, the PT500 provides the industrial strength and functional flexibility required to safely optimize the viewing experience for your extra-large premium TV.

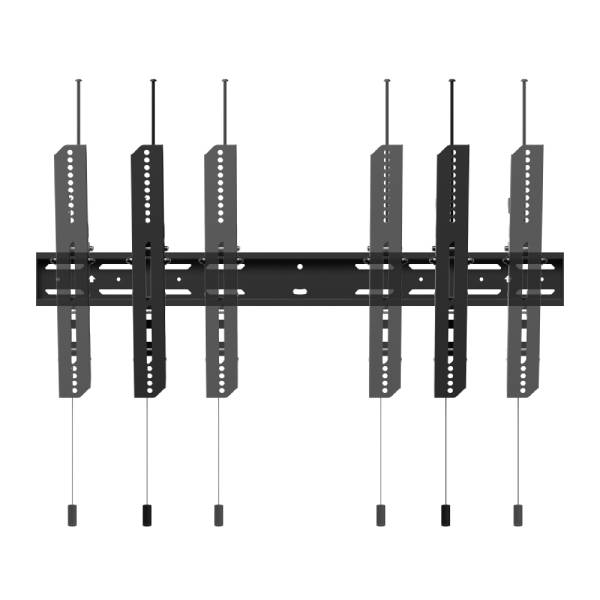

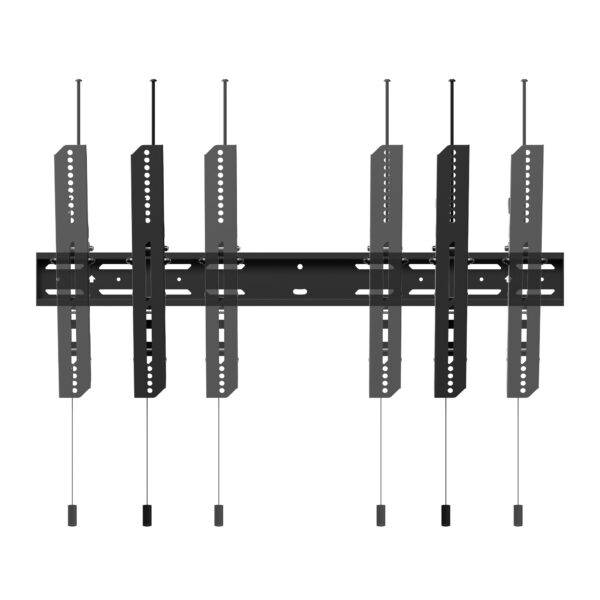

12° of Forward Tilt
Tilt your TV up to 12° forward to eliminate distracting glare and achieve the perfect line of sight, even when mounting your screen higher on the wall.
Slim Profile Design
Engineered with a slim 1.4” profile, the PT500 keeps your massive display sitting remarkably close to the wall for a clean, flush, and modern look.
Extra-Wide Steel Wall Plate
Built from solid steel and measuring 34.8” wide, the oversized wall plate can span up to three studs with 16” spacing or two studs at 24” spacing providing you ultimate placement flexibility and rock-solid support for heavier TVs.

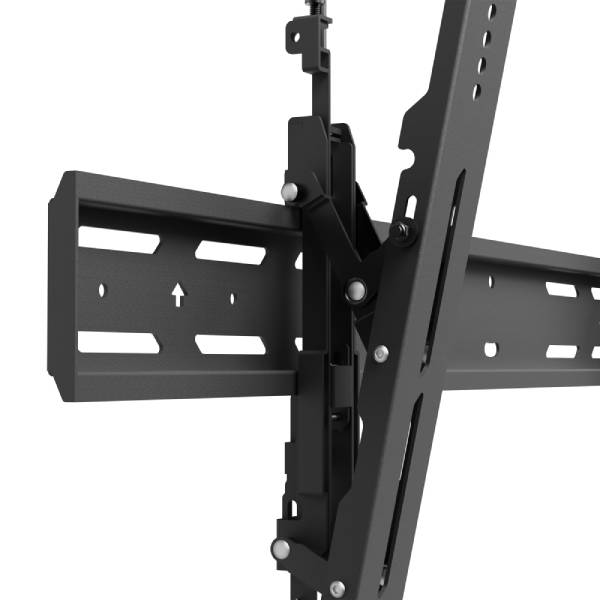

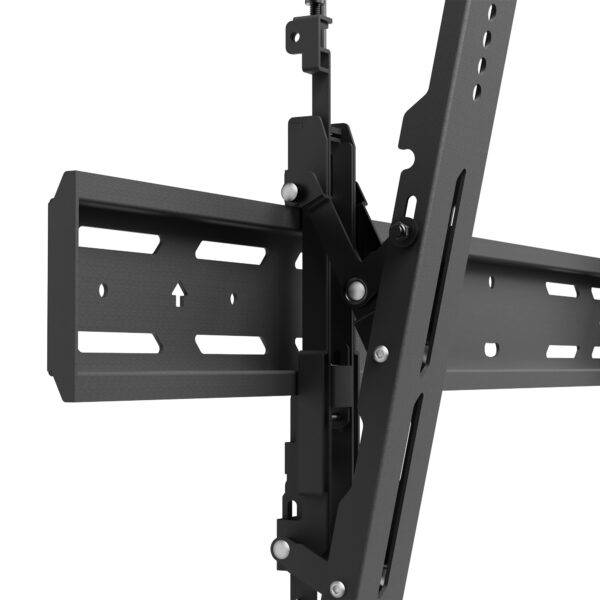

Post-Installation Leveling
Skip the stress of a slightly crooked mount. Easily fine-tune your TV’s alignment after it’s on the wall using the accessible leveling screws on top of each bracket.

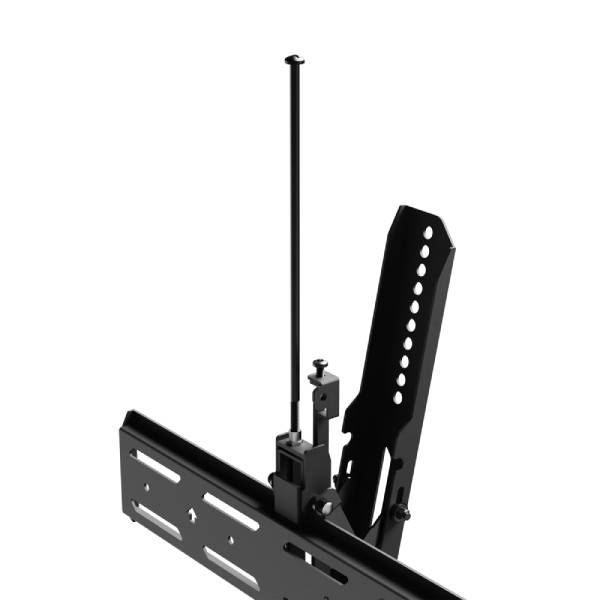

Quick Release Cords
Take down or access the back of your TV in seconds simply by pulling the dual quick-release cords. When you’re done, the integrated magnetic ends tuck neatly out of sight behind the screen.
Ultra-easy install
This easy-to-follow installation video will guide you through the steps required to safely mount your Kanto PT300, PT400 or PT500 Tilting TV mount.
What’s Included
- Installation Manual
- All mounting hardware for wood stud and concrete installation
- 5 Year Warranty
Profile: Sits 1.4″ (3.5 cm) from the wall
Material: Solid steel with durable powder coated finish
- Adjustable horizontal leveling
- Magnetic quick-release cords
- Lockable arms (lock not included)
| Specifications | |
|---|---|
| TV Sizes: | 65” to 120” |
| Weight Allowance: | 250 lb (113.4 kg) |
| VESA Sizes: | 100×100 to 800×400 |
| Wall Plate: | 34.8” (88.4 cm) wall plate allows mounting to three 16” studs, or offsetting on 24” stud centers |
| MEASUREMENTS | |
| Shipping box weight: | 11.2 lb (5.1 kg) |
| Shipping box dimensions: | 36.2″ x 6.8″ x 3.3″ (91.9 x 17.3 x 8.4 cm) |
| Product weight: | 8.4 lb (3.8 kg) |
| UPC: | 800152726779 |
