Free Air REVO subs are recommended primarily for Infinite Baffle (Free Air) applications where a dedicated subwoofer enclosure is not available or practical.
Both 10” & 12” REVO FA subs are available in White or Black frames (Black frames use metallic grey cones). All REVO FA Subs are available in either single 2 Ohm or single 4 Ohm impedances.

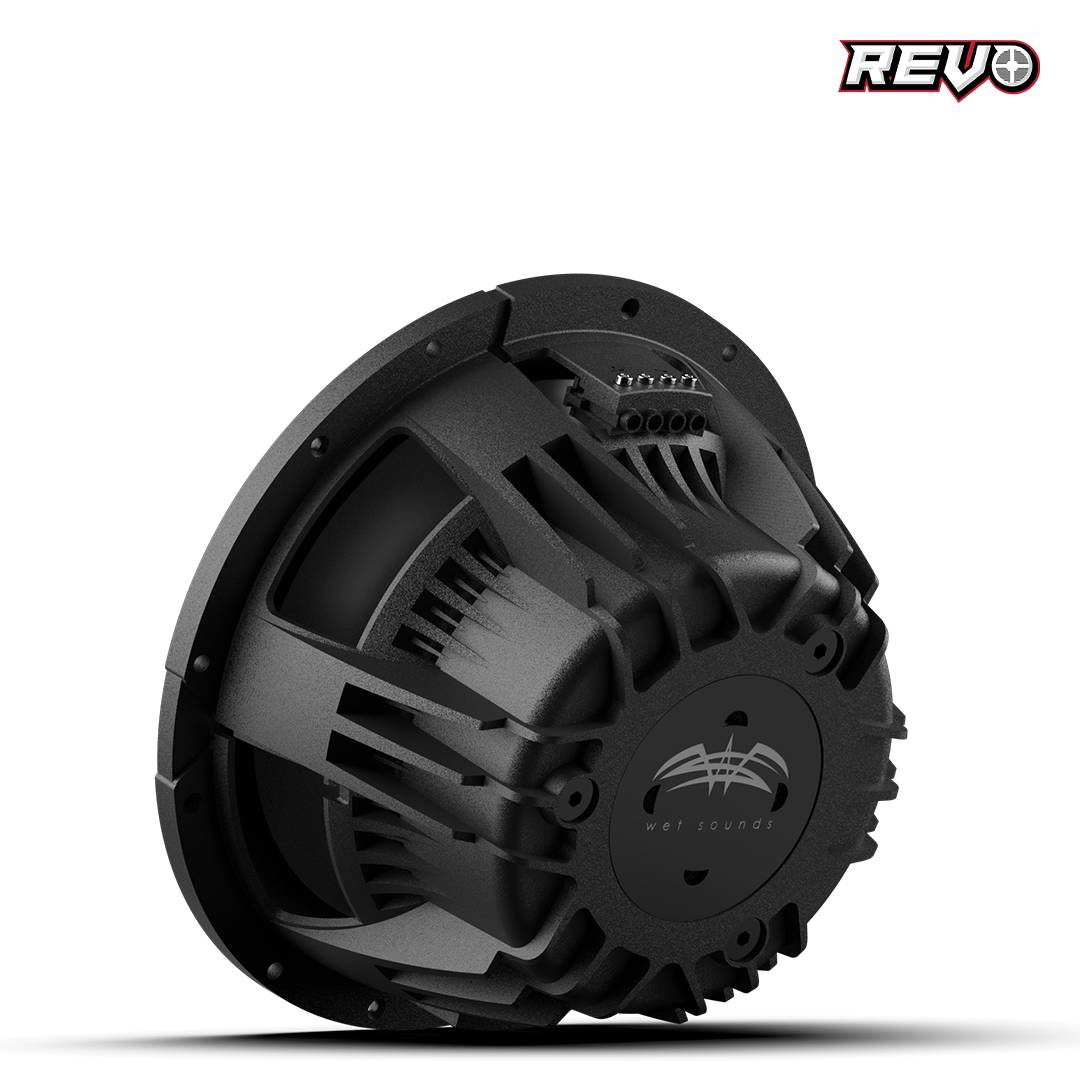

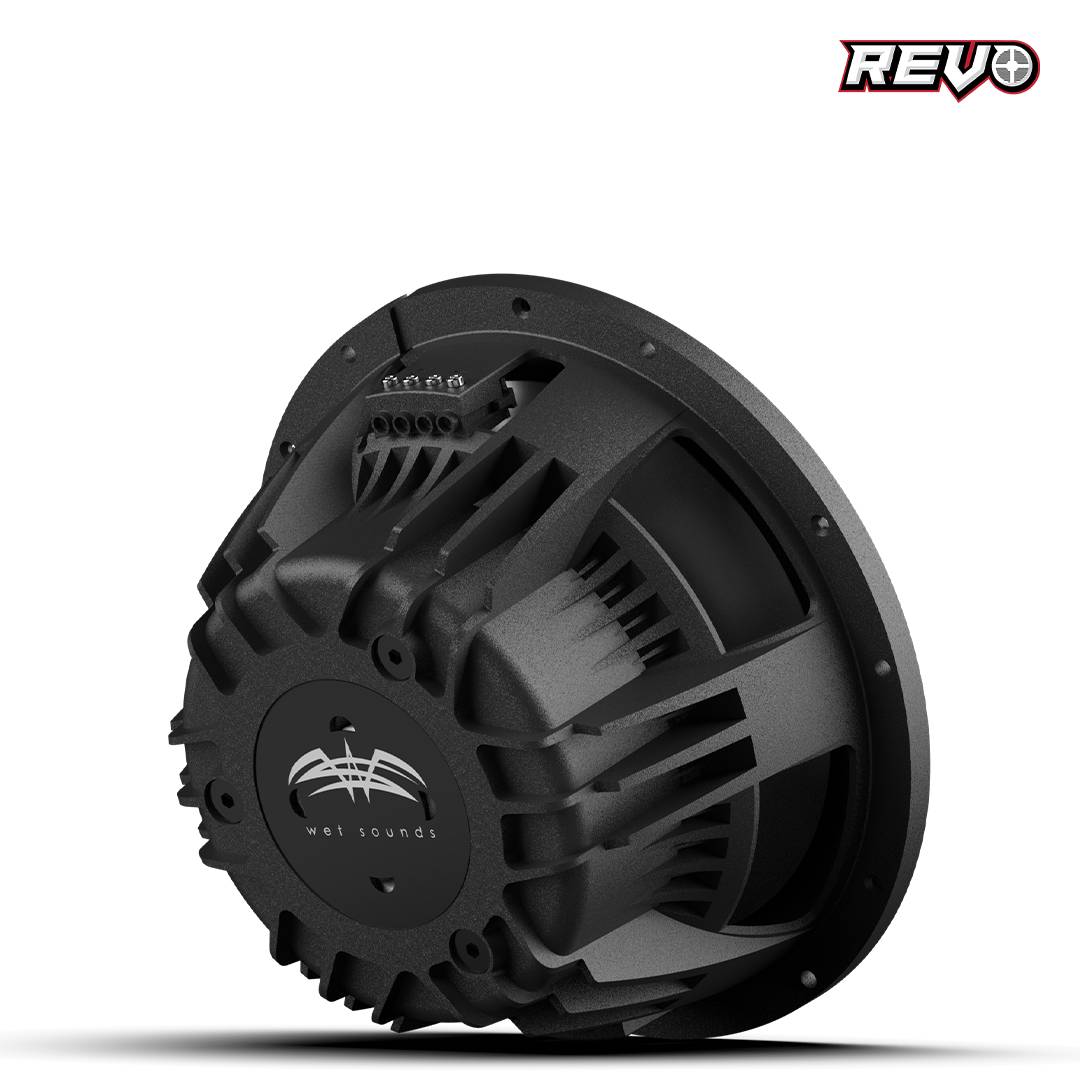

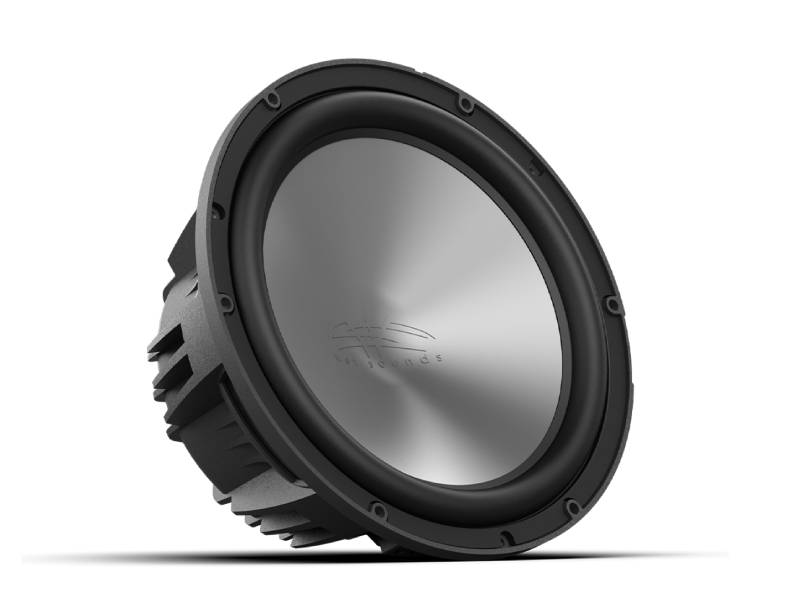

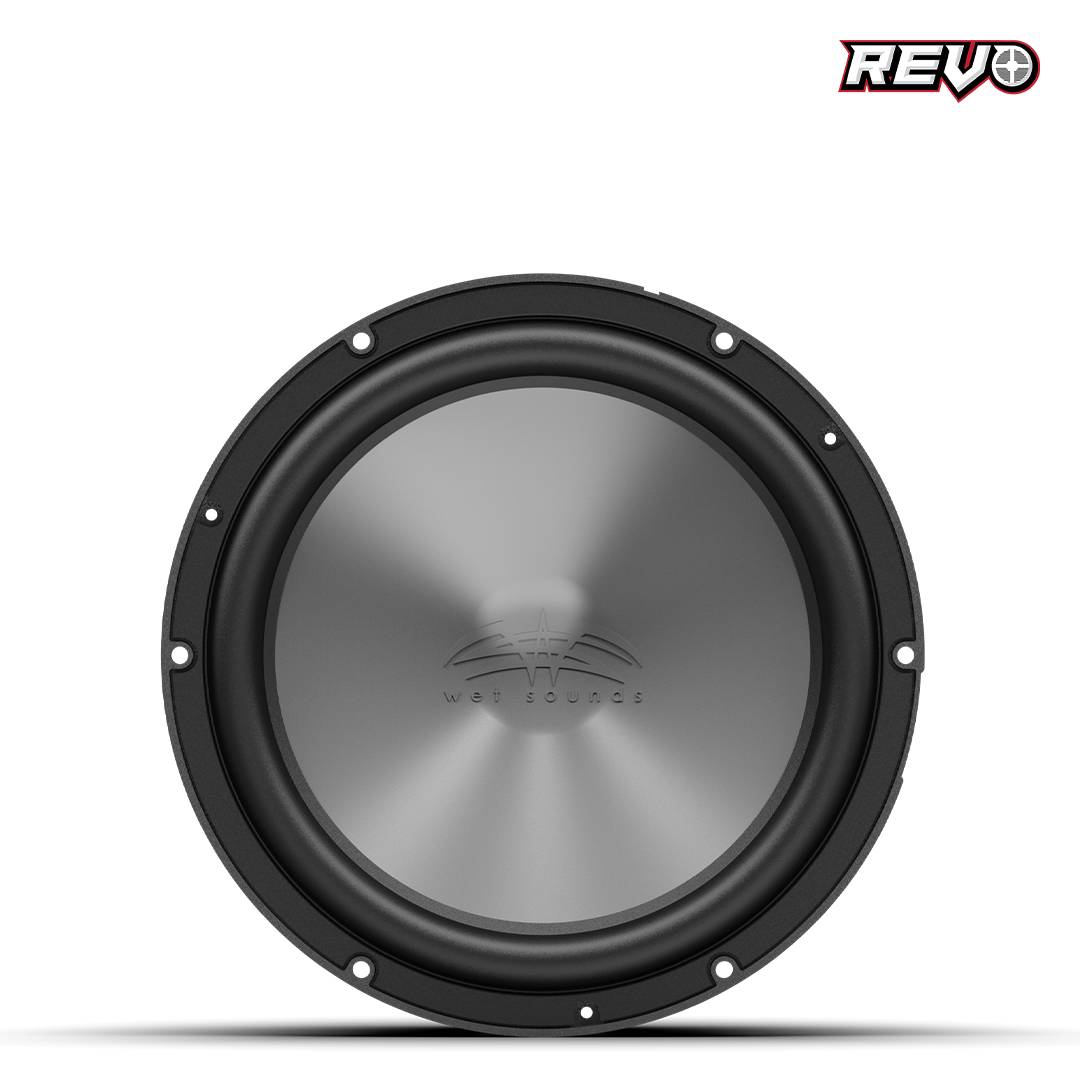

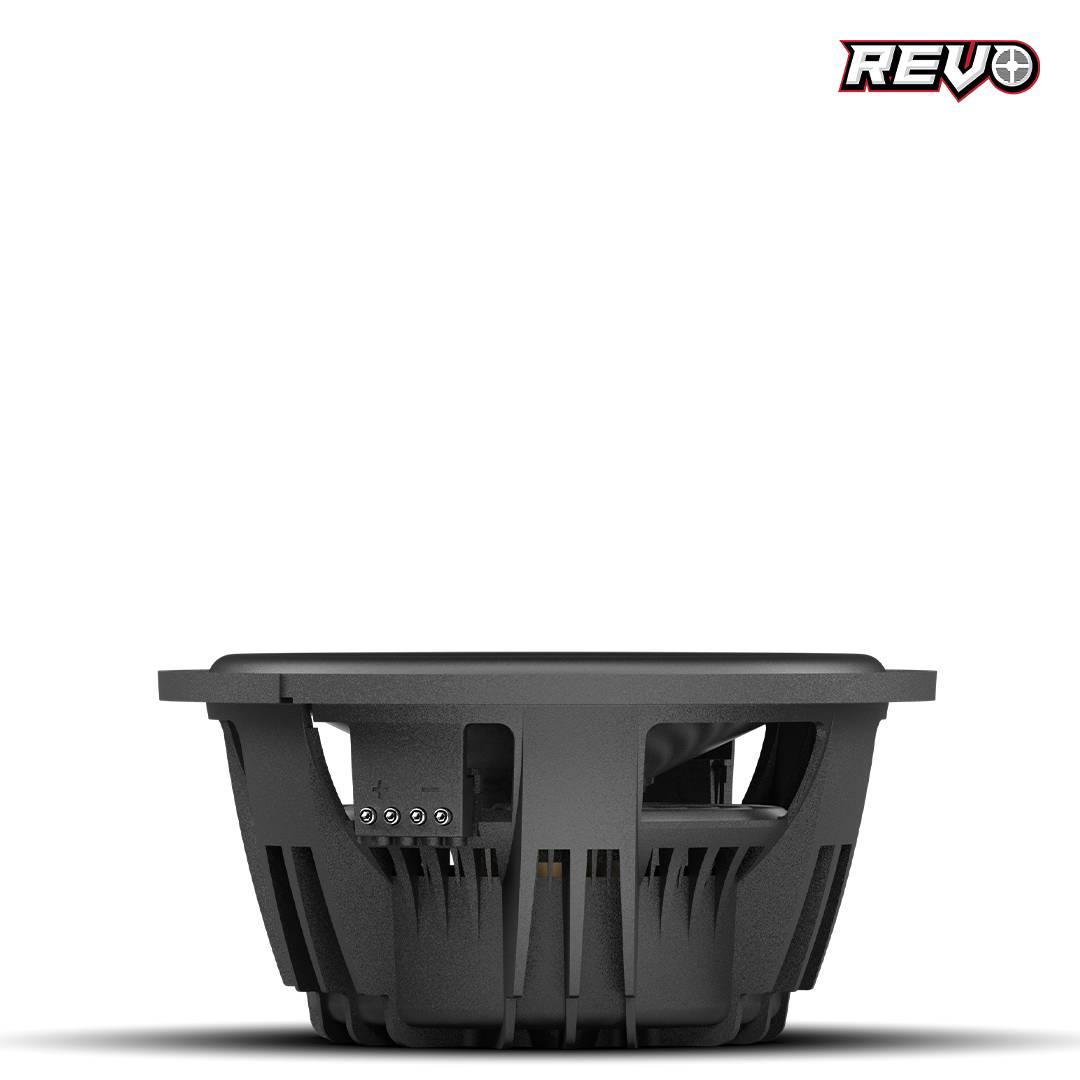

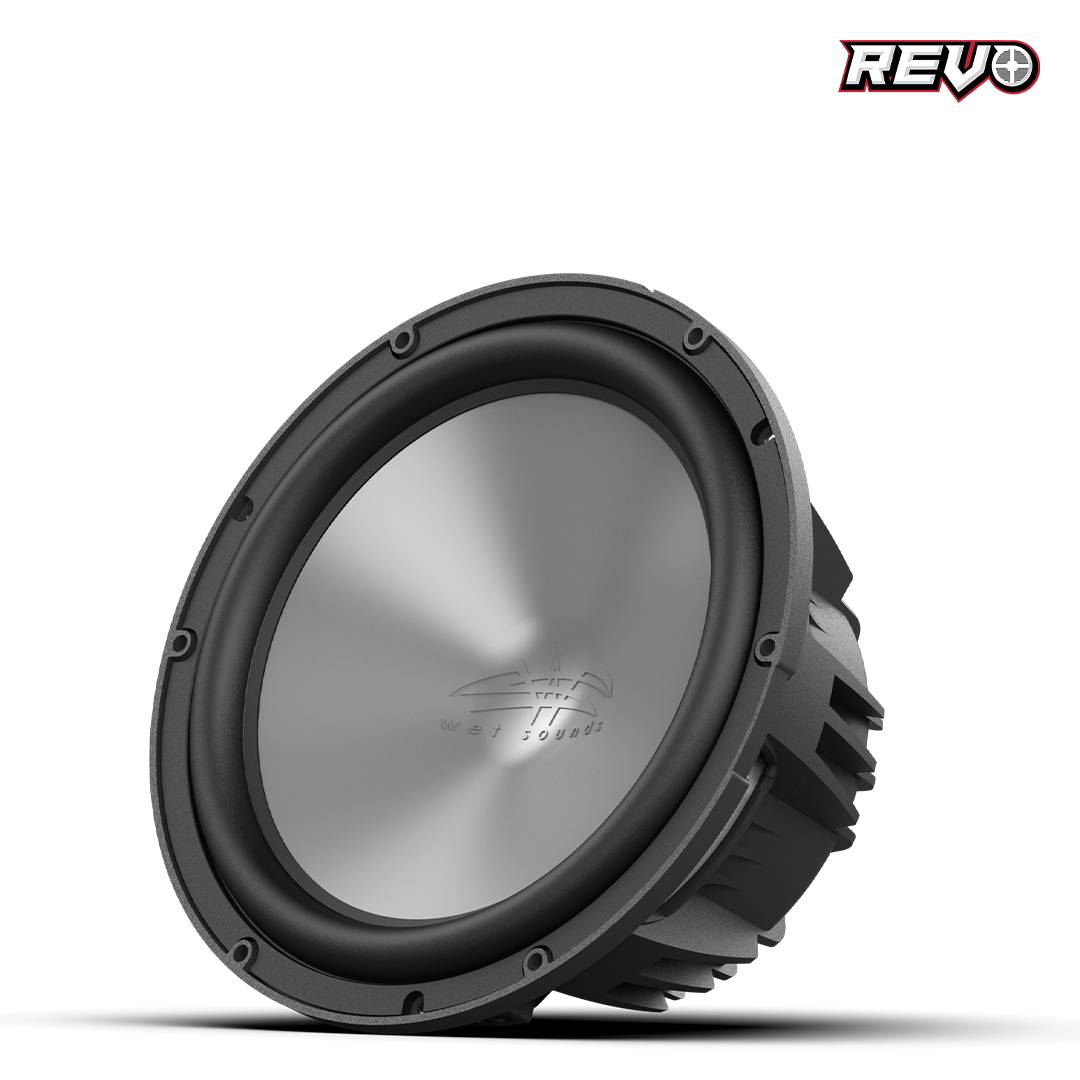

All REVO 10” & 12” Subwoofers share the same design features:
- Nylas Composite Frame - to withstand extreme environmental use. Designed to accept optional RGB wiring.
- Injection Molded Composite Cone – For durability & low distortion.
- Santoprene Rubber Spider – Much more durable to water & temperature changes than a traditional treated Cotton Spider used by the majority of marine speakers & subwoofers.
- Santoprene Rubber Surround – Offers a superior bond to the composite cone.Also resists deterioration due to water, temperature & ultraviolet exposure.
- Stainless Steel Terminals – Designed to resist corrosion.
All REVO Subwoofers are sold without grills. 8 different grill designs are available separately for all versions of 8", 10” & 12” REVO HP & FA subwoofers.This will enable users to have matching grills on both REVO Coaxial In-Boat speakers & REVO Subwoofers.
Optional RGB LED Kits are available to fit under all REVO 8", 10” & 12” subwoofer grills to enable users to have thousands of LED light display combinations.
| Specifications | |
|---|---|
| Mounting Depth: | 4.62 inches w/grill (117.47 mm) |
| Frequency Response: | 20Hz to 500HZ |
| Sensitivity: | 88 db at 1watt/1 meter |
| Diameter: | 11.02 inches w/grill (279.90 mm) |
| Weight: | 10 lbs (4.53 kg) |
| RMS Watts: | 300 |
| PEAK Watts: | 600 |
| Impedance: | 2ohm |
| Hole Cut Out: | 9.45 inches (240.03 mm) |
| Box Specs: | Optimized for Infinite Baffle (Free Air) applications or 1.3 cu ft sealed enclosure |
| Sub Size: | 10" |
| Series: | REVO |
| Cone Color: | Black |
| Application Type: | Free Air |
