Rockford Fosgate Punch Marine 10 Inch SVC 4-Ohm Subwoofer - PM210S4
PM210S4

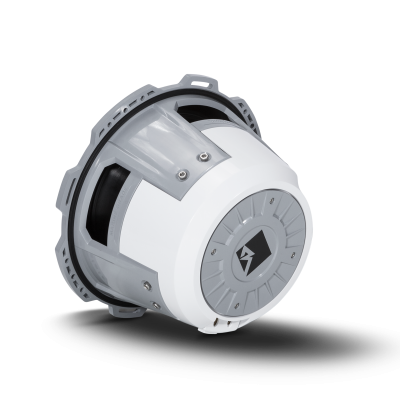

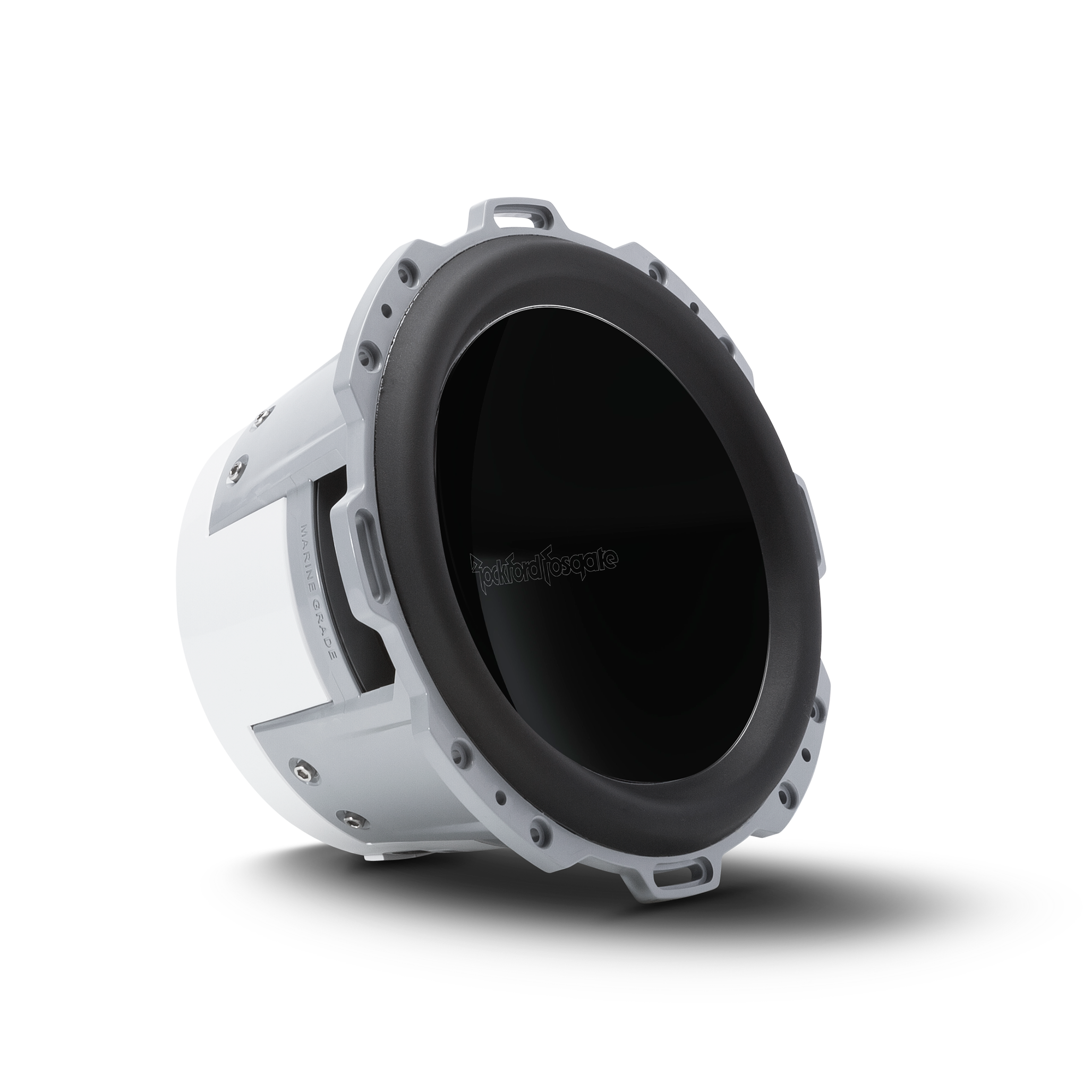

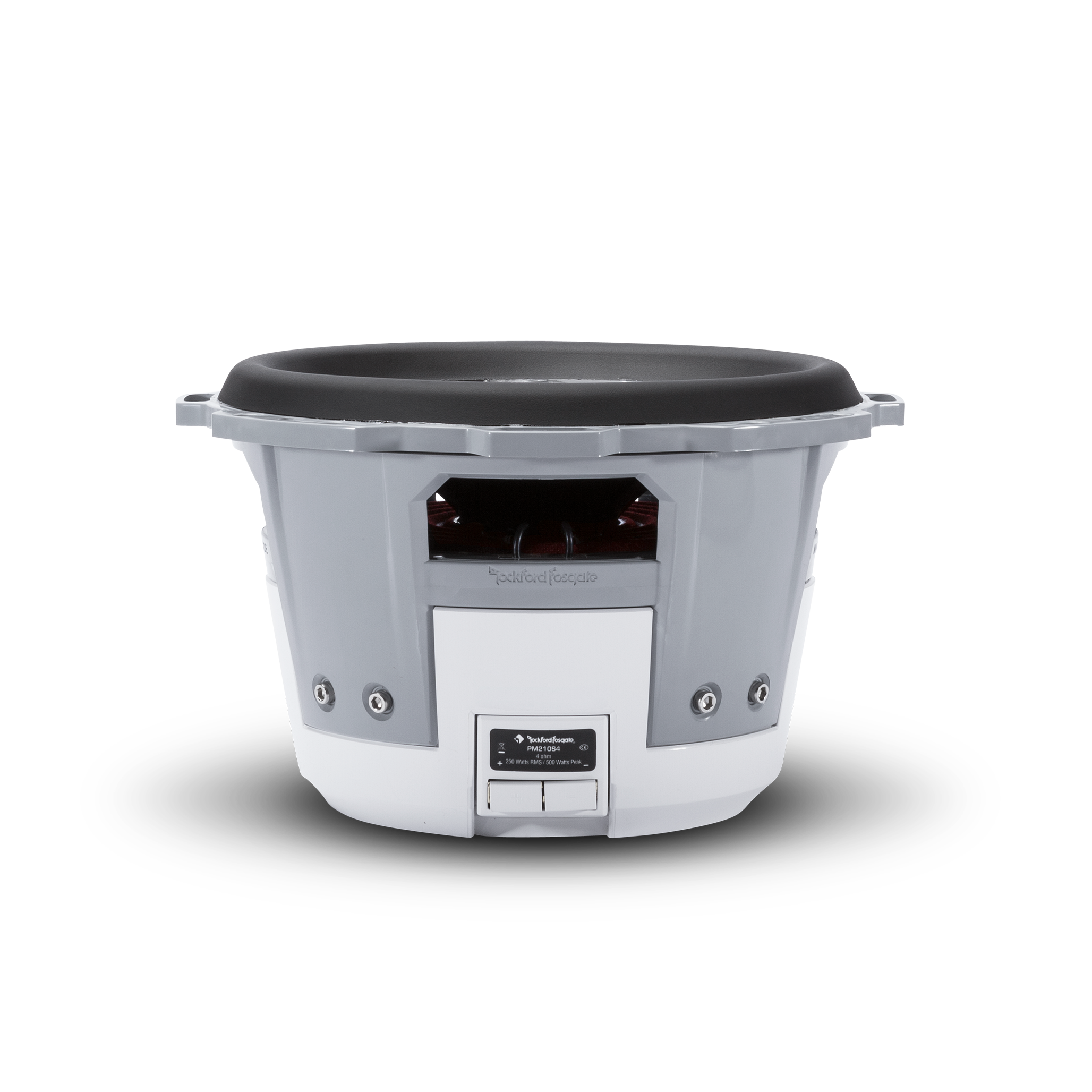

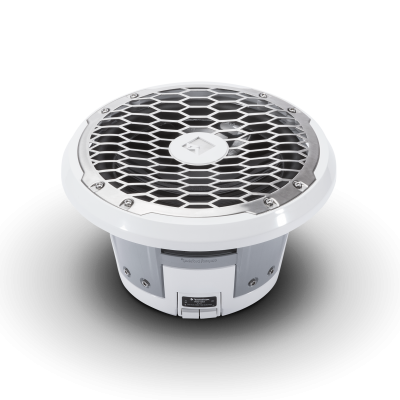

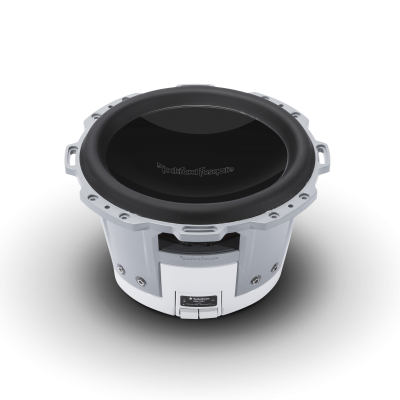

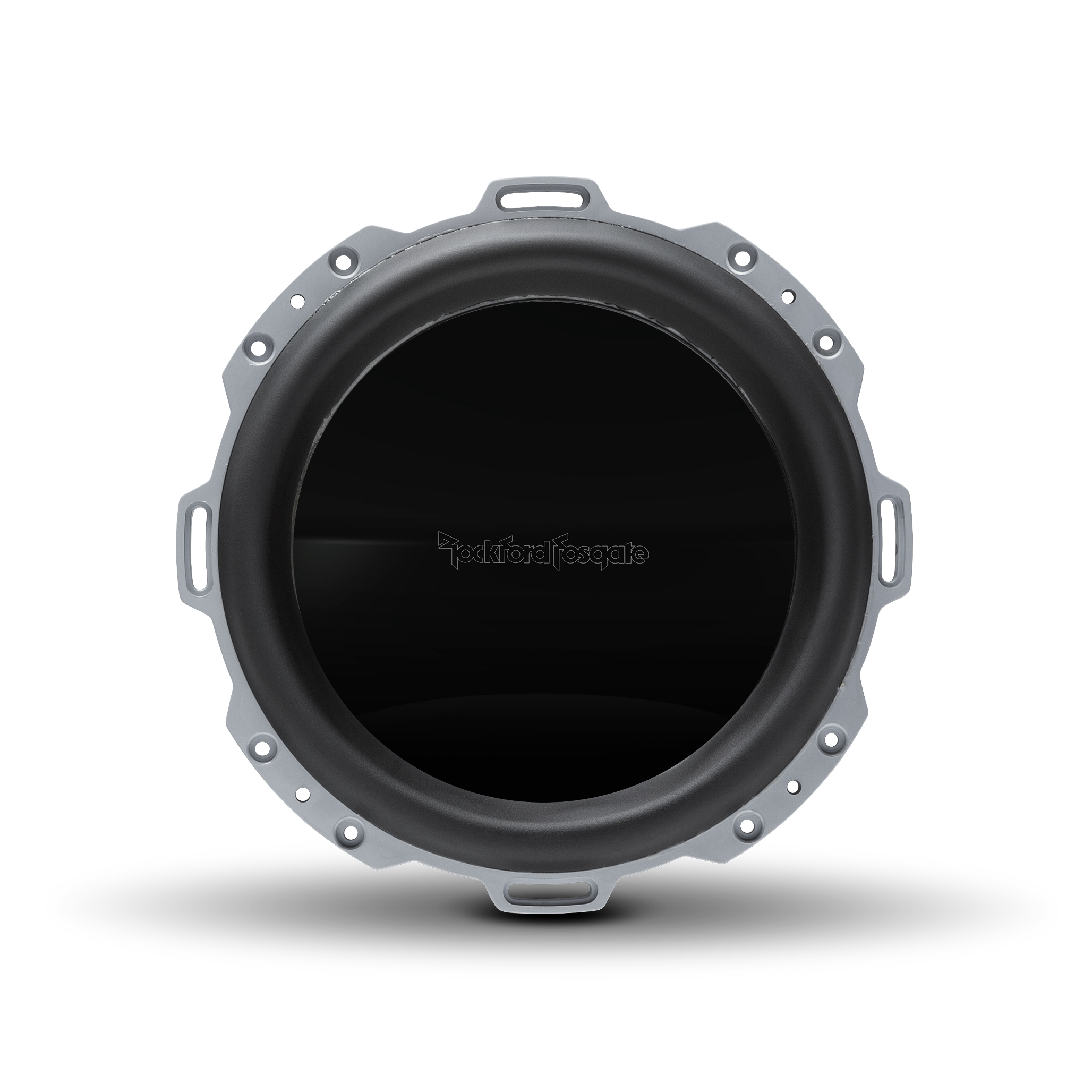

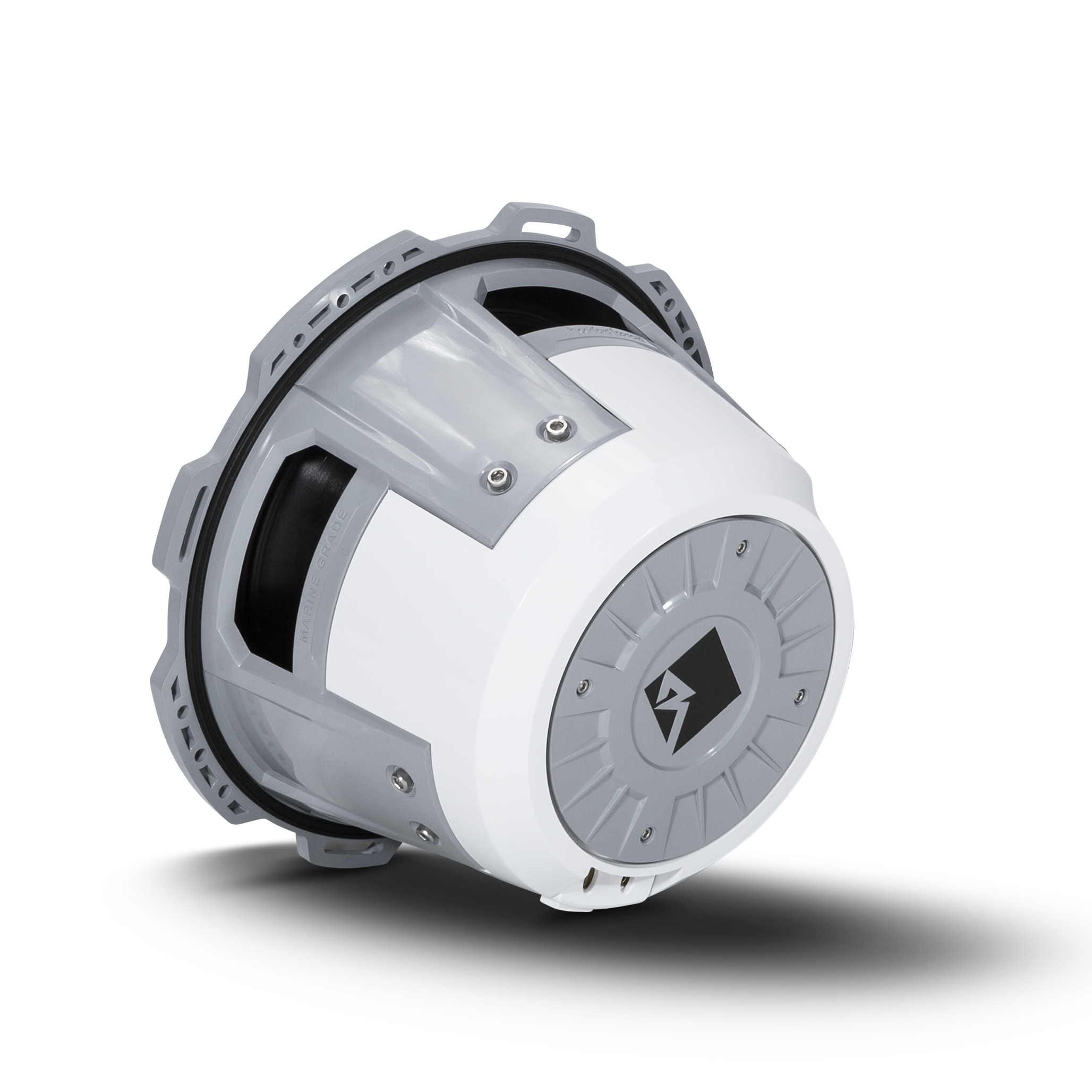

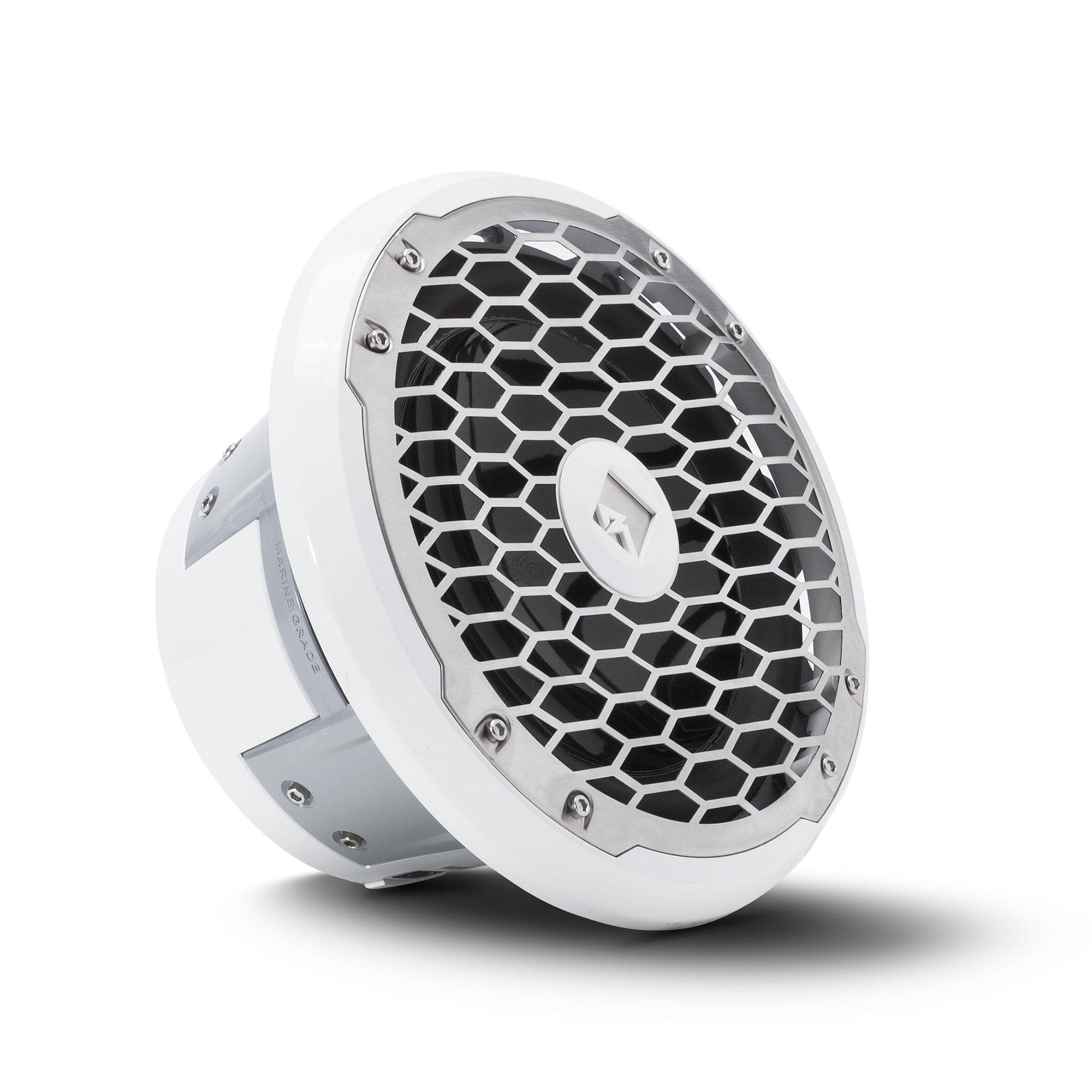

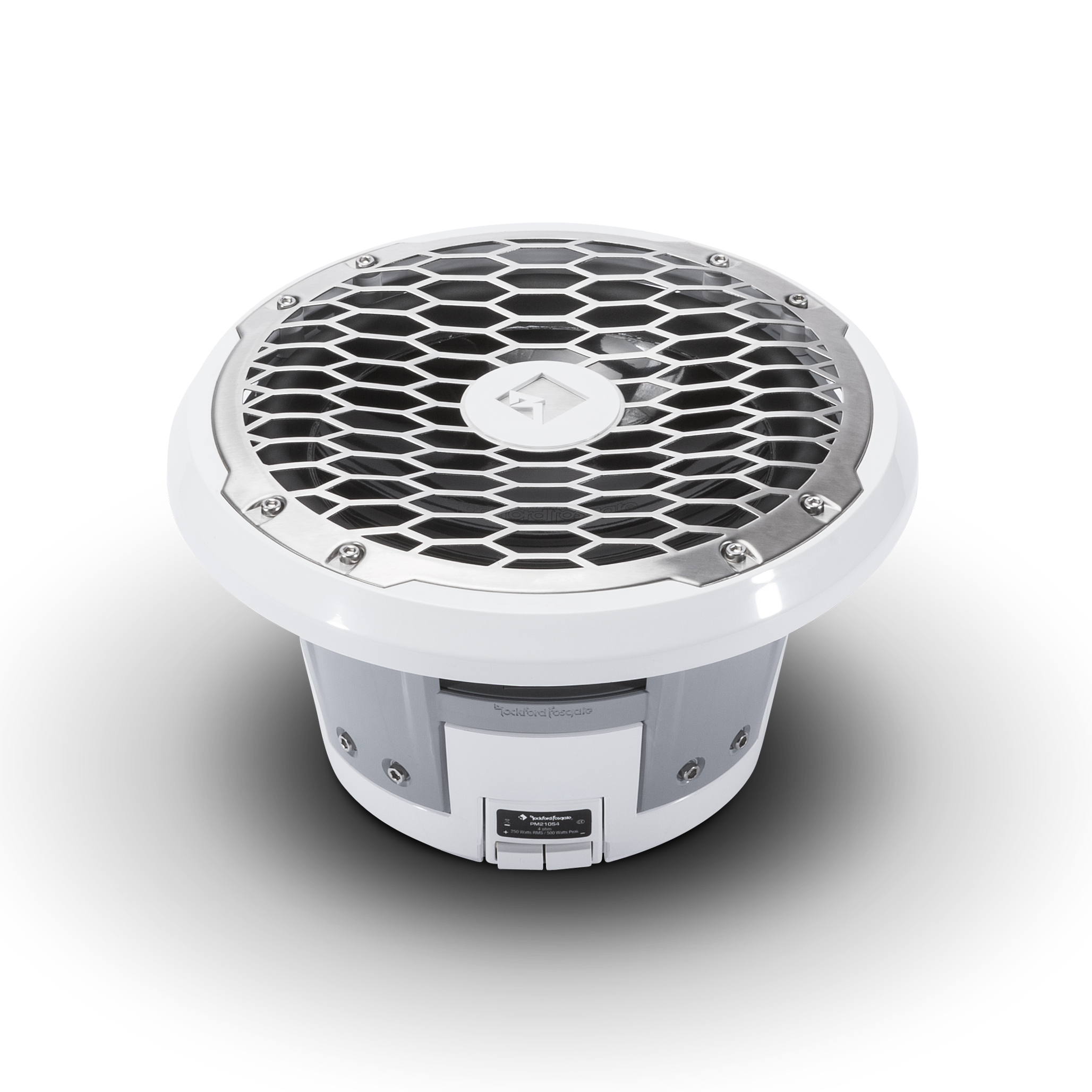

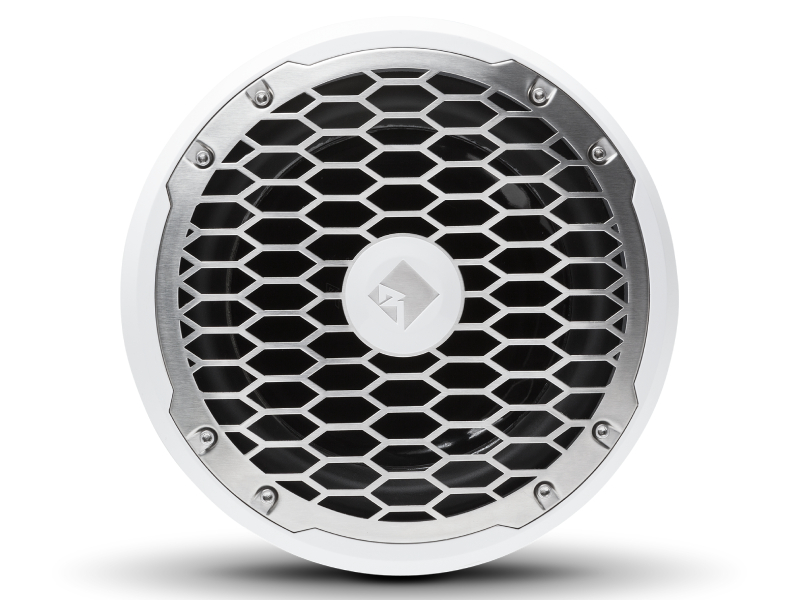

The PM210S4 is a white 10" subwoofer designed for marine watercraft or powersports applications. It features a stainless steel sport grille and is UV and moisture resistant. Can be used in sealed, vented or infinite baffle installations.
The PM210S4 is a white 10” subwoofer designed with weatherproofing technology specific for use in marine watercraft or powersports applications. It features a stainless steel sport grille and is UV and moisture resistant. This woofer is so versatile, it can be used in sealed, vented or infinite baffle installations.
- True Marine Grade compliance
- 100% UV stable Centrex® injection molded plastic parts
- Injection molded mineral filled polypropylene cone body with UV inhibitors
- UV and Salt-Fog resistant TPE (Thermo-Plastic Elastomer) surround
- 18 gauge corrosion resistant removable Stainless Steel grille cover insert
- Ultra-flexible fully insulated silicone lead wire
- Proprietary corrosion resistant spring loaded push terminals
- Moisture, tear and fatigue resistant Aramid fiber spider
- Linear, high excursion matched motor magnetics and suspension design
- Internal magnetic shielding
- Removable trim ring/grille
- Available in black or white
- 2-Year Warranty
Technologies
Klippel Verified
Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.
CEA-2031
Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.
Element Ready™ - Subwoofers
These subwoofers are protected against Dust, UV, Water, Corrosion, and feature Stainless hardware.
ASTM Test Standards
Marine Grade standards ensure resistance to extreme environments.
VAST Surround - Marine
The Vertical Attach Surround Technique significantly increases a subwoofer's effective radiating cone area up to 25%.
FlexFit Basket - Marine Sub
The slot mounted frame pattern allows fine-tuning of the subwoofer's mounting position.
Anodized Aluminum Voice Coil Former
Rockford Fosgate subwoofers use anodized aluminum voice coil formers for superior heat dissipation (up to 100° at full power levels).
| Specifications | |
|---|---|
| Mounting Depth | 5.5 in. (140 mm) |
| Re (Ohms) | 3.6 |
| Magnet Weight (oz) | 54.4 oz. (1.54 Kg) |
| Xmax (mm) | 10 |
| Qms | 9.00 |
| Shipping Weight | 11.75 Lbs. (5.3 Kg.) |
| Fs (Hz) | 45 |
| Qts | 0.57 |
| Sd (cm2) | 346 |
| Size | 10" |
| Power Handling (Watts RMS) | 250 Watts RMS, 500 Watts Max |
| Size | 10" |
| Woofer Displacement | 0.154 cu. ft. (4.35 Liters) |
| Le (mH) | 0.3 |
| Cutout Diameter | 9.0 in. (228 mm) |
| Vas (Liters) | 20.2 |
| Qes | 0.64 |
| Nominal Impedance | 4-Ohm |
| Voice Coil Diameter | 2" aluminum |
| Speaker Connector | Dual 8 AWG compression |
