Powerful low end for your ride

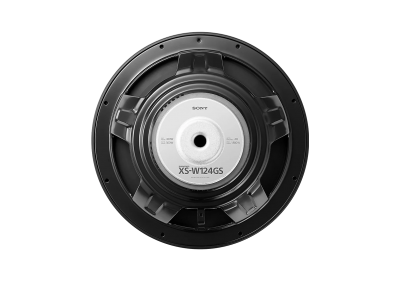

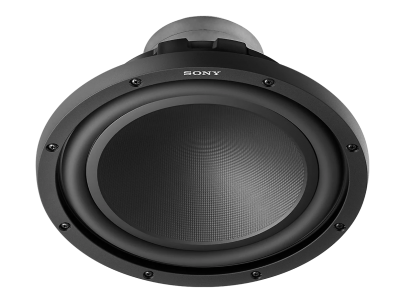

Meet our XS-W124GS 12 in (30 cm) subwoofer with 420W CTA RMS power handling. A diaphragm directly connected to the voice coil, together with the foam rubber surround, offers tight and deep bass, while the long excursion design delivers rich tones for every journey.
Paper cone diaphragm with polypropylene cap
A light-weight paper cone diaphragm directly connected to the voice coil reproduces tight low end. The injected polypropylene dust cap ensures rigidity and optimizes internal damping, realizing powerful and responsive bass sound.
Rubber surround
A rubber surround reduces excessive vibration and supports cone excursion with less distortion. The result is a solid bass response at high volume levels so that your system can play loud and clear.
Progressive height rate double spider
The acoustically optimized spider allows for higher power handling and airflow, with a profile designed for more rapid and precise cushioning of the speaker cone. To increase signal integrity and prevent sound interference, the lead wire from the voice coil is also sewn to the spider, reducing wire movement.
Long excursion structure
The voice coil is supported by the double-layered spider, suppressing unwanted rolling, while also ensuring long excursion to reproduce rich bass sounds.
Environment in mind
Our products are not only designed to be stylish but also with the environment in mind. For the individual packaging of the XS-W124GS, 98% of the cushions are made of paper materials, and compared to the prior model, printed information has been carefully considered for simplicity and length to reduce printer ink usage by approximately 90%, reflecting Sony’s commitment to reducing environmental impact.
HIGHLIGHT
- 12 in (30 cm) paper cone diaphragm with polypropylene cap
- Frequency response: 35 Hz–900 kHz
- Progressive height rate double spider for high power handling
- Sensitivity: 88 dB (1W/1 m)
- 1,800 W peak / 300 W rated / 420W CTA RMS power handling
| Size & Weight | |
|---|---|
| WEIGHT | 4,100 g |
| SUMMARY | |
| WHAT’S IN THE BOX | Detachable Gasket, Warranty Card |
| General Features | |
| RATED POWER | 300 W |
| EFFECTIVE FREQUENCY RANGE | 30–500 Hz |
| OUTPUT SOUND PRESSURE | 83 dB ± 2 dB SPL (1 W, 1 m) |
| IMPEDANCE (OHMS) | 4 |
| DIAPHRAGM MATERIAL | Paper Cone with PP Cap |
| MAGNET MATERIAL | Ferrite |
| SURROUND MATERIAL | Rubber |
| RMS POWER | 420 W |
| PEAK POWER | 1,800 W |
| Speaker System | |
| SIZE | 12" (30 cm) |
| CONFIGURATION | Single Voice Coil |
