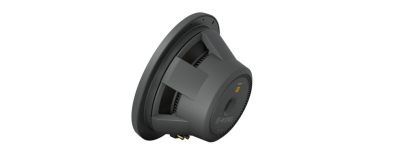

Sony 12 Inch Mobile ES 4-Ohm Car Subwoofer - XSW124ES

$39999
Or
as low as
$66.67
Per month over
6 months.


Online Only

Literature

Lightweight Rigid Cellular Honeycomb Subwoofer Diaphragm

Lightweight Rigid Cellular (formerly known as mica reinforced cellular) diaphragm material is further enhanced via a honeycomb fibre structure, for unmatched rigidity and responsiveness. Enhancements over the years of diaphragm material development produced a driver 10x more rigid than conventional PP Matrix cones, for natural low-distortion sound and a wide frequency response.

Separated Notch Edge Surround

The woofer surround features another proprietary Sony technology with distinctive curved notches improving the vertical amplitude symmetry, for dramatically reduced distortion and enhanced clarity.

Progressive Height Rate Spider

The acoustically optimized spider allows for higher power handling and airflow, with a profile designed for more rapid and precise cushioning of the speaker cone. To increase signal integrity and prevent sound interference, the lead wire from the voice coil is also sewn to the spider, reducing wire movement.

Gold-plated Input Terminals

Gold-plated spring terminals allow up to AWG#10 speaker cables.

Five-beam Frame Structure and Dynamic Air Diffuser

The Five-beam Frame design disperses resonance while the integrated Dynamic Air Diffuser ensures efficient air circulation for smooth cone travel and cooling of the voice coil.

Specifications
What's In The BoxDetachable Gasket , Warranty card (3­year)
General Features
Surround MaterialRubber (Separated Notch)
Magnet MaterialFerrite
Output Sound Pressure83 dB ± 2 dB SPL (1 W, 1 m)
Impedance (ohms)4
Diaphragm MaterialLightweight Rigid Cellular Honeycomb
Speaker System
Size12" (30 cm)
General Features
Peak Power2,000 W
RMS Power500 W
Rated power400 W
Effective Frequency Range25–700 Hz
Speaker System
ConfigurationSingle Voice Coil
Size & Weight
Weight5,500 g
