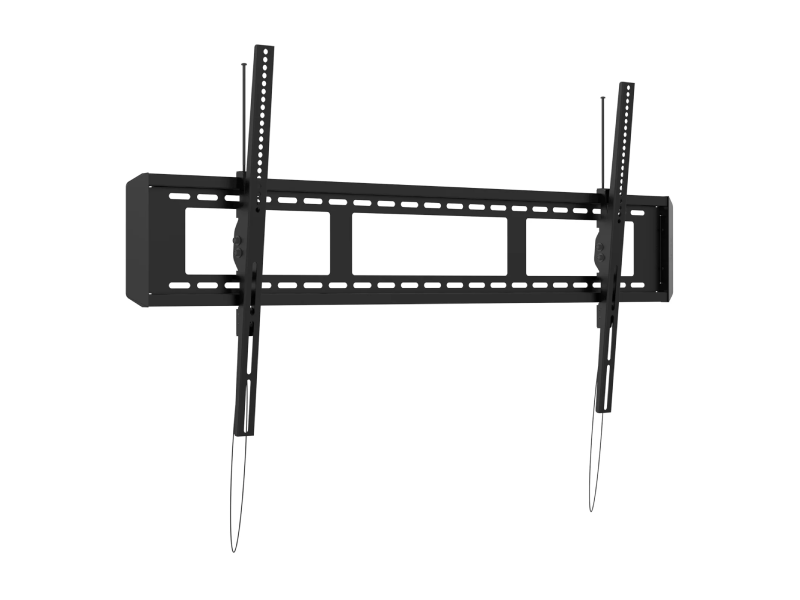

T6090 allows to you secure the largest TV panels available with a 200 lb weight capacity and generous 1100×600 VESA support. Featuring 15 degrees of tilt, you can easily adjust the viewing angle to your liking or optionally lock the tilt angle in five degree increments to prevent tampering. T6090 allows you to position your TV perfectly with horizontal leveling screws while the extra-wide wall plate lets you shift your TV into the perfect spot. Quick release TV brackets provide easy TV servicing and a 2” profile keeps everything looking low profile.
Features at a glance

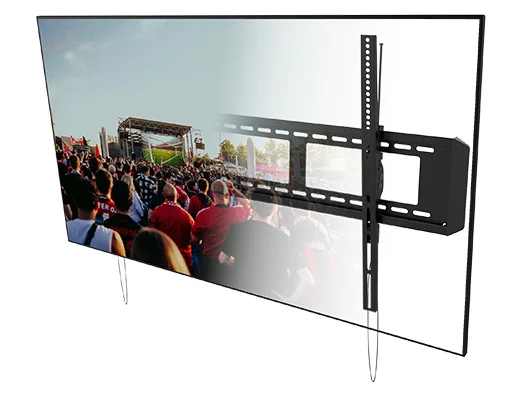

Extra Large TV Support
A 200 lb weight capacity and support for VESA patterns up to 1100×600 make T6090 compatible with nearly all 55”-120” TVs.

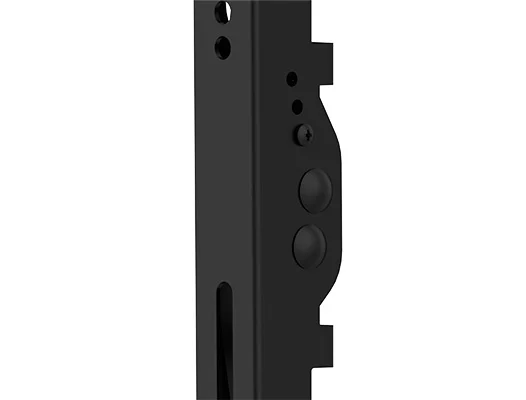

Tilt Positioning
T6090 features 10° of forward tilt and 5° rear tilt. It can be locked at +5°, 0°, or -5° to prevent adjustments when used in public spaces.

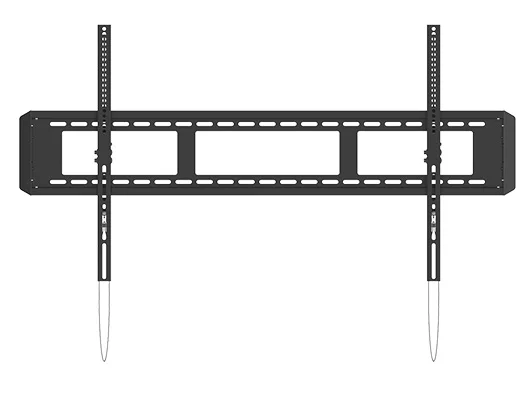

Perfect Placement
The extra wide wall plate can span across two or three studs allowing you to position your TV anywhere along your wall regardless of stud spacing.

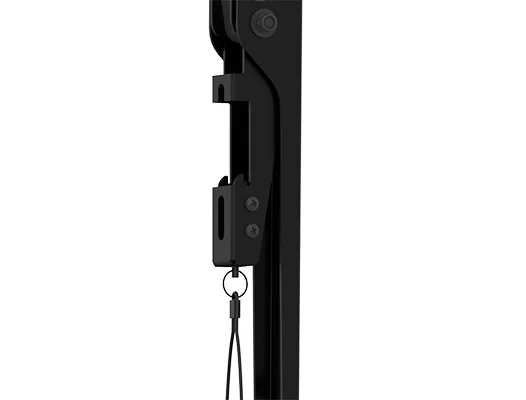

Quick Removal
Spring-loaded TV brackets click into place and feature quick release cords that allow you to easily detach the TV when servicing is required.

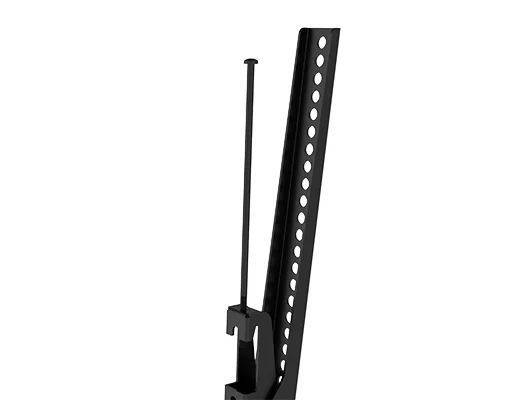

Always Level
Extra tall adjustment screws allow you reach over large, already-installed panels, and adjust horizontal leveling using a screwdriver or socket.
| Specifications | |
|---|---|
| Warranty | 5 Year |
| What’s Included | Adjustable horizontal leveling Installation Manual and all mounting hardware for wood stud and concrete installation |
| Tilt | +10° to -5° |
| from the wall | 2″ |
| TV Sizes | 55” to 120” |
| Weight Allowance | 200 lbs (91 kg) |
| VESA Sizes | 100×100 to 1100×600 |
| Wall Plate | 47.6” (121 cm); Accommodates three studs with up to 16″ spacing, or offsetting on 24” stud centers |
| Material | Solid steel with durable powder coated finish |
| MEASUREMENTS | |
| Shipping box weight | 15.9 lbs (7.2 kg) |
| Shipping box dimensions | 47″ x 9.6″ x 3.7″ (119.5 x 24.5 x 9.5 cm) |
| Product weight | 14.3 lb (6.5 kg) |
| UPC | 800152712192 |
