Apple CarPlay®, iDatalink® Maestro® compatibility, sound customization and more
Enjoy smooth and simple control for every journey. An anti-glare 6.95 inch (17.6 cm) touchscreen and interface are designed to give you intuitive control over music, communications and more. With LDAC™ high-quality Bluetooth® connectivity, plus time alignment and a 14-band EQ, it allows for even more personalization and provides the perfect in-car audio experience.
6.95 inch (17.6 cm) anti-glare sleek touchscreen
The anti-glare 6.95 inch (17.6 cm) touchscreen and clean interface design ensure a stylish and efficient user experience.
Apple CarPlay®
Connect your iPhone® for hands-free calling, music listening and messaging thanks to CarPlay. You can also use voice commands for navigation—including via third-party apps—and view traffic conditions right on the dashboard, all whilst staying safely focused on the road.
Connected to your car

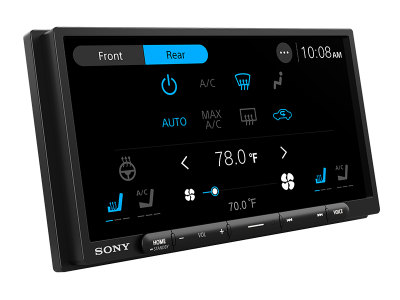

iDatalink® Maestro® connects your vehicle’s onboard computer with car audio, making it work as a customized display for your car’s factory-equipped functions and features. It provides a seamless interface with factory infotainment and vehicle information, such as air conditioning, performance and safety. Simply connect an iDatalink® Maestro® RR/RR2 by Automotive Data Solutions. It’s a new way to connect car audio to your vehicle while retaining and improving the functions of the original equipment.
SiriusXM Radio Ready
Connect your SiriusXM® Radio satellite tuner (not supplied) to enjoy commercial-free music, sports, news and entertainment.
Sound customization
The built-in DSP offers sound processing and time alignment—down to a remarkable 1 cm for each of the five addressable channels (four speakers and subwoofer via pre-out). A 14-band EQ lets you adjust the overall sound to your music or taste. Together with the three-zone crossover, you can arrange the perfect match of front, rear and subwoofers.
| SUMMARY | |
|---|---|
| WHAT’S IN THE BOX | External Microphone, GPS Antenna, Power Supply Leads, Steering Remote Control cable, USB Extension Cable (Type-C), Warranty Card (1-year) |
| Size & Weight | |
| DIMENSIONS (W X H X D) | 178 x 100 x 132 mm |
| WEIGHT | 1.0 kg |
| General Features | |
| EQUALIZER | 14-band Equalizer |
| FIRMWARE UPGRADABILITY | Yes |
| OUTPUT POWER | 55 W x4 |
| PRE OUT | 3 Pre (Front LR/Rear LR/Sub x1) |
| REAR VIEW CAMERA IN | Rear |
| TIME ALIGNMENT | Yes |
| USB | Yes (Type-C x 1, REAR) |
| Tuner Features | |
| AUTO MEMORY | BTM |
| PRESET | FM18/AM12 |
| RDS/EON | Yes (RBDS) |
| Bluetooth® Profile | |
| A2DP | Yes (1.3.1) |
| AVRCP | Yes (1.6.1) |
| HFP | Yes (1.7.1) |
| PBAP | Yes (1.1) |
| Bluetooth® Feature | |
| ALPHABETICAL PHONEBOOK SORTING | Yes |
| BATTERY REMINDER | Yes |
| CALL VOLUME LEVEL CONTROL | Yes |
| EXTERNAL MICROPHONE | Supplied |
| LAST DIALED CALL | Yes (select from the dialed call history) |
| PHONEBOOK ACCESS VIA PBAP | Yes |
| RECENT CALLS (# OF) | Yes |
| RING VOLUME LEVEL CONTROL | Yes |
| SIGNAL STRENGTH INDICATION | Yes |
| SPEED DIAL | Yes (6 memories) |
| Bluetooth® Audio Feature | |
| AUDIO CODEC (BLUETOOTH AUDIO) | SBC/AAC/LDAC |
| AUDIO LEVEL ADJUSTMENT | Yes (–6 dB to +6 dB) |
| CUE/REV | Yes |
| META DATA INDICATION | Yes |
| PAUSE (BLUETOOTH AUDIO) | Yes |
| REPEAT CONTROL (AUDIO DEVICE SIDE) | Yes |
| SHUFFLE CONTROL (AUDIO DEVICE SIDE) | Yes |
| TRACK +/- | Yes |
| Panel Design | |
| KEY ILLUMINATION | Yes (White) |
| Monitor(AVC) | |
| BRIGHTNESS | Typ: 600 cd/m2 |
| DIMMER | Auto/Manual select |
| LCD TYPE | Transmissive, TN Type |
| RESOLUTION (DOT) | 800 x 480 |
| SCREEN ASPECT | 16 : 9 |
| SCREEN DIAGONAL (INCH/CM) | 6.95 in/17.6 cm |
| Display Panel | |
| DIMMER ADJUST | Yes |
| KEY ILLUMINATION INITIAL | White |
| User Interface | |
| PARKING CONTROL | Yes |
| PARKING LINE ADJUST | Yes |
| REAR VIEW CAMERA-IN MARKER SETTING | Yes |
| TOUCH PANEL | Resistive |
| USB Mass Storage Device Control Feature | |
| USB DEVICE CONTROL (AUDIO CODEC) | MP3/WMA/WAV/AAC/FLAC/ALAC/DSF/DSDIFF |
| USB DEVICE CONTROL (AUDIO PLAYABLE FILE EXTENSION) | .mp3/.wma/.wav/.m4a/.mp4/.flac/.m4a/.mp4/.dsf/.dff |
| USB DEVICE CONTROL (PAUSE) | Yes |
| USB DEVICE CONTROL (REPEAT) | TRACK/FOLDER/DRIVE |
| USB DEVICE CONTROL (RESUME PLAY) | Yes |
| USB DEVICE CONTROL (SHUFFLE) | OFF/FOLDER/DEVICE |
| Multi-Language | |
| CAUTION | English/Spanish/French/German/Italian/Russian/Portuguese/Simplified Chinese/Traditional Chinese/Dutch |
| MENU | English/Spanish/French/German/Italian/Russian/Portuguese/Simplified Chinese/Traditional Chinese/Dutch |
| Connectivity | |
| BLUETOOTH® | Yes |
