Features

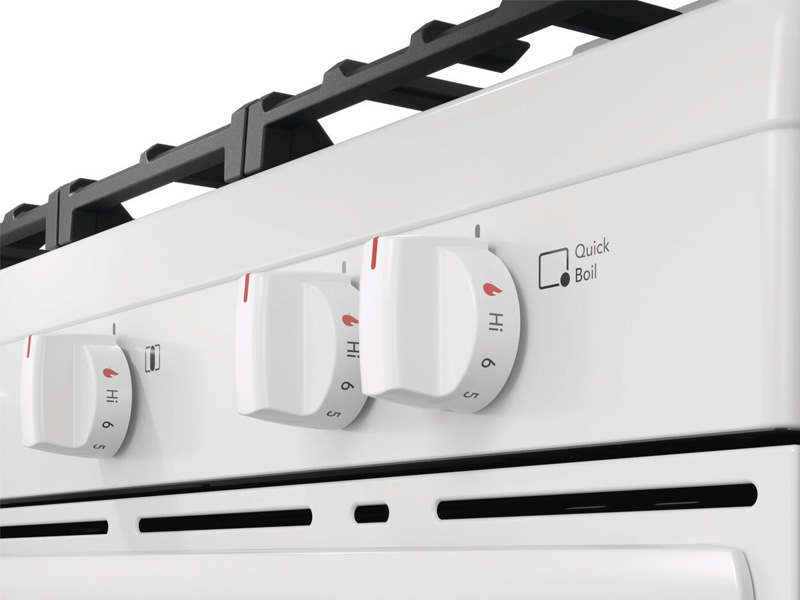

Get to mealtime faster with the Quick Boil Burner
Experience faster boil times and more powerful cooking with the 18,000 BTU burner.

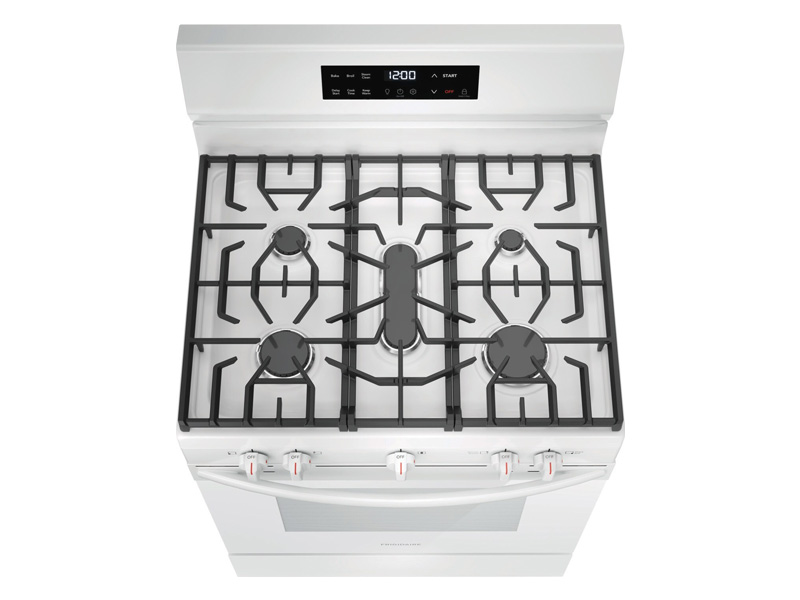

Flexible Five Burner Cooktop
This cooktop features five burners designed to fit all of your cooking needs, including a 5,000-BTU simmer burner for delicate foods, a 10,000-BTU center oval burner perfect for griddles or larger pans, and our powerful 18,000-BTU Quick Boil Burner so you can get meals on the table, faster.
Even Baking Technology
Designed to deliver even baking results, every time.
Fast Steam Cleaning Option
A light, 30-minute oven cleaning that's chemical-free, odor-free and fast.
Continuous Edge-to-Edge Grates
Moving heavy pots and pans across the cooktop is easier with continuous edge-to-edge grates.
Extra Wide Store-More Storage Drawer
Our redesigned Store-More Storage drawer is now even wider - allowing you to store any unused oven racks, baking trays and more!

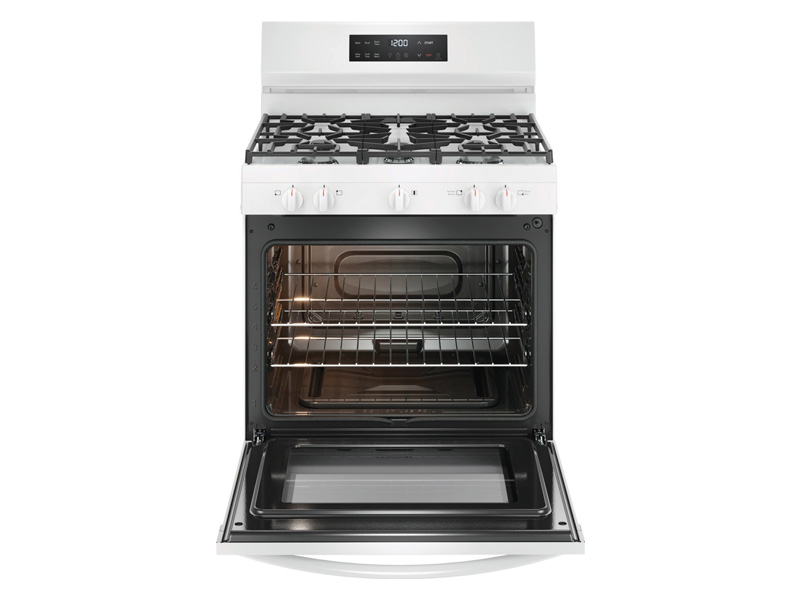

Cook more at once with our large oven capacity
5.1 Cu. Ft. Oven Capacity
Dishwasher Safe Burner Caps
Cleaning your cooktop is easier with removable, dishwasher safe burner caps.
Cleanup is easier with Hidden Bake
Lower heating elements are beneath the oven floor, making for a smooth surface that is easy to clean.
| General Specifications | |
|---|---|
| Warranty - Labor | 1 Year |
| Warranty - Parts | 1 Year |
| Safety Certifications and Approvals | |
| CSA Listed | Yes |
| General Specifications | |
| Prop 65 Label | Yes |
| Installation | |
| Power Cord Included | Yes |
| General Specifications | |
| Product Weight | 170 lbs |
| Installation | |
| Adjustable Leveling Legs | Yes |
| ELECTRICAL SPECIFICATIONS | |
| Voltage Rating | 120 V |
| Dimensions and Volume | |
| Capacity | 5.1 Cu. Ft. |
| ELECTRICAL SPECIFICATIONS | |
| Minimum Circuit Required | 12 Amps |
| Dimensions and Volume | |
| Oven Interior Height | 17 5/8 |
| Oven Interior Width | 25 3/16 |
| Oven Interior Depth | 19 7/8 |
| Depth With Door 90° Open | 47 5/16 |
| Depth With Handle | 28 1/2 |
| Depth | 26 |
| Width | 30 |
| Maximum Height | 47 3/4 |
| Minimum Height | 46 3/4 |
| Display | |
| Display Type | Membrane |
| Display Interface Color | White |
| Control Location | Rear |
| CONTROLS | |
| Control Lock | Yes |
| DRAWER | |
| Drawer Type | Storage |
| OVEN | |
| Rack Type 1 Quantity | 2 |
| DRAWER | |
| Drawer Handle Style | Integrated |
| OVEN | |
| Rack Type 1 | Flat |
| Rack Position Type | Embossed |
| Oven Light Watts | 40 Watts |
| Oven Light Quantity | 1 |
| Oven Light Type | Halogen |
| Oven Interior Color | Midnight Black |
| Broil Element Pass | 6 |
| Number of Rack Positions | 6 |
| Broil Element | 1400 Watts |
| Bake Element | 17000 BTU |
| Cooking Controls Function | |
| Program Fahrenheit or Celsius | Yes |
| Delayed Bake | Yes |
| Change between Continuous Bake Setting or 12-Hour Energy Saving Feature | Yes |
| Adjustable Volume Feedback | Yes |
| Cooking Controls | |
| User Preferences | Yes |
| Up / Down Arrow | Yes |
| Timer On / Off | Yes |
| Temperature Display | Yes |
| Steam Clean | Yes |
| Start | Yes |
| Set Clock | Yes |
| Oven Light | Yes |
| Off | Yes |
| Lockout | Yes |
| Light | Yes |
| Kitchen Timer | Yes |
| Keep Warm | Yes |
| Delay Start | Yes |
| Delay Clean | Yes |
| Cook Time | Yes |
| Broil | Yes |
| Clock | Yes |
| Cooktop Performance | |
| Center Rear Element Burner | 10000 BTU |
| Cooking Controls | |
| Bake | Yes |
| Cooktop Performance | |
| Left Rear Element Burner | 10000 BTU |
| Left Front Element Burner | 14000 BTU |
| Right Rear Element Burner | 5000 BTU |
| Right Front Element Burner | 18000 BTU |
| COOKTOP | |
| Grate Quantity | 3 |
| Grate Style | Continuous |
| Cooking Surface Type | Gas |
| Grate Material | Cast Iron |
