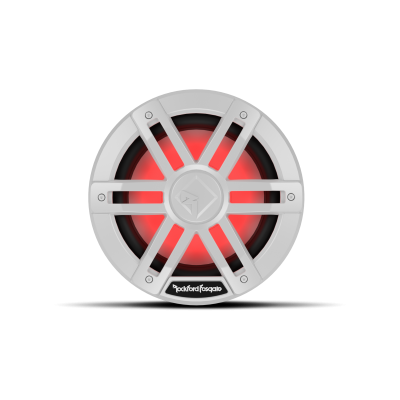

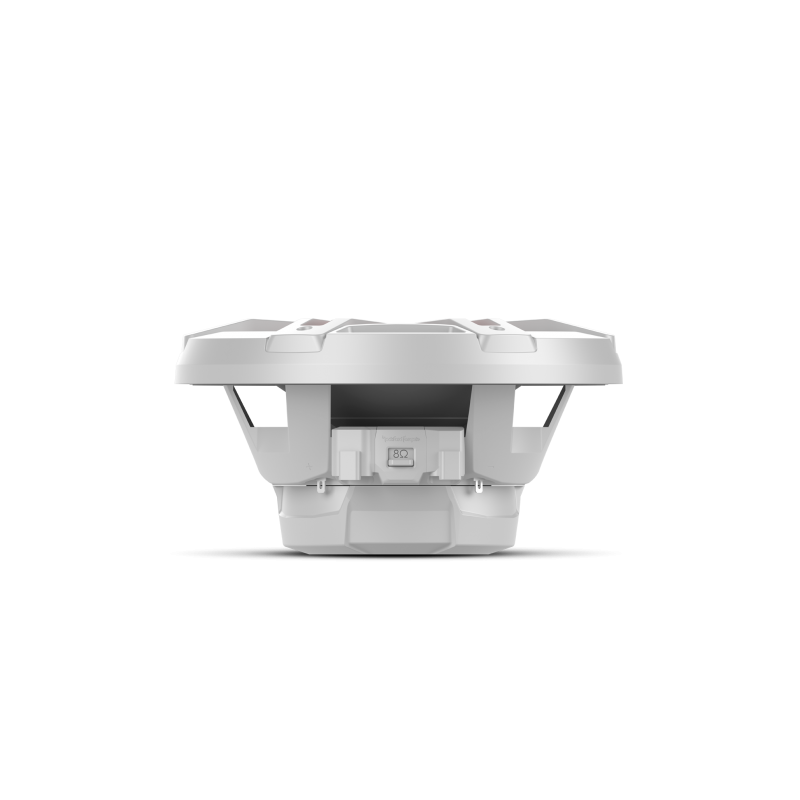

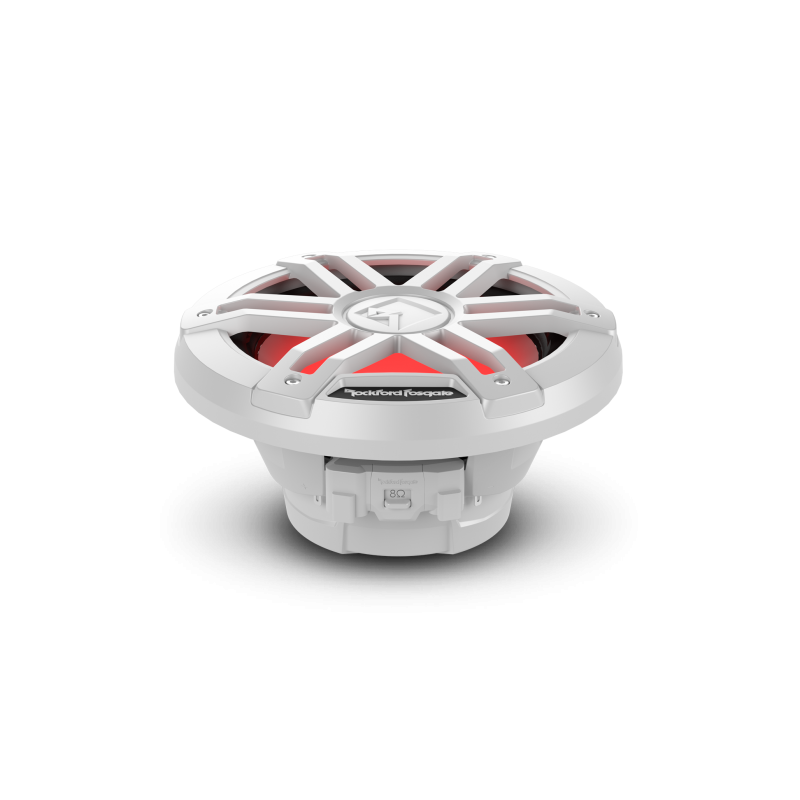

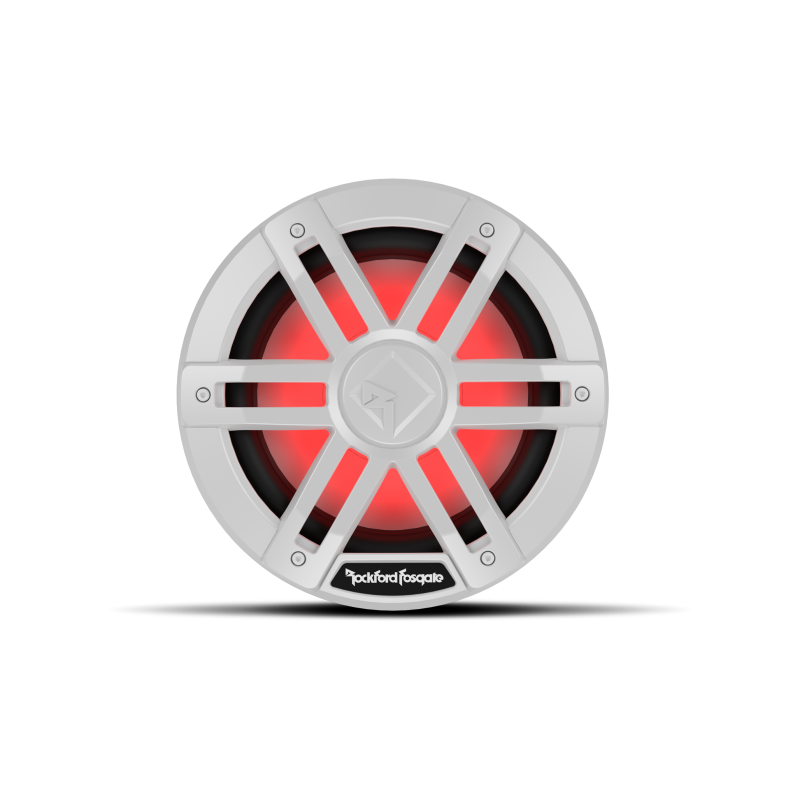

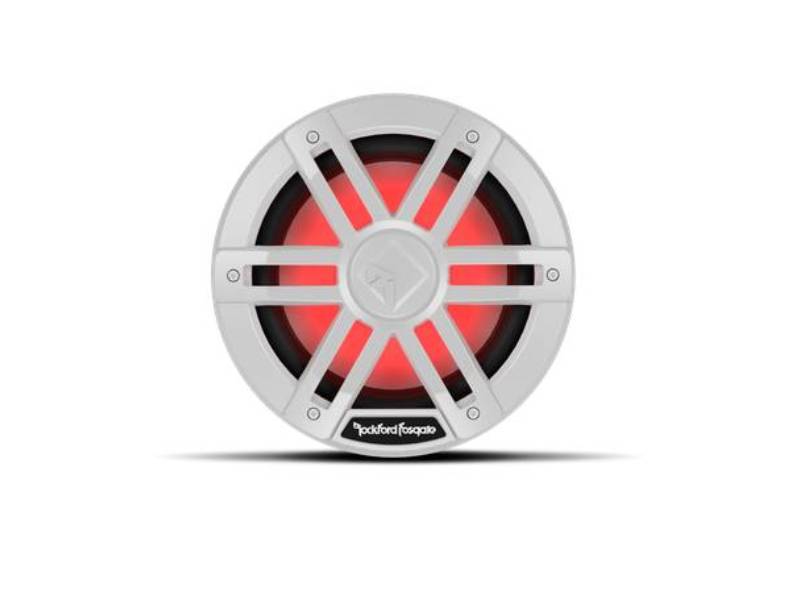

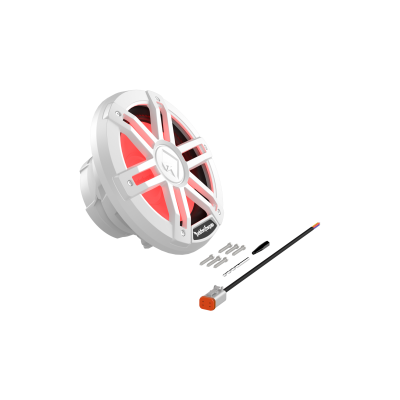

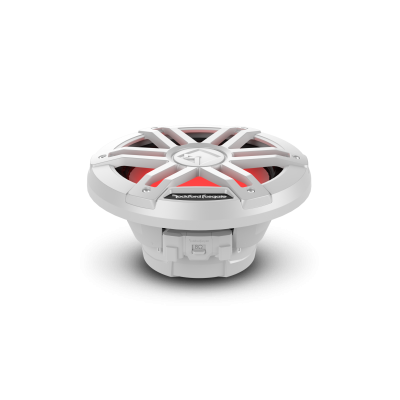

Rockford Fosgate DVC 4Ω Color Optix Marine Subwoofer in White - M1D4-8
Rockford Fosgate DVC 4Ω Color Optix Marine Subwoofer in Black - M1D4-8B
Rockford Fosgate DVC 4Ω Color Optix Marine Subwoofer in White - M1D4-8
Authorized Dealer Price Match Guarantee
Price Match Guarantee
Andre's Electronic Experts offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.

In-store

In-store

In-store

More options
Literature

The M1D4-8 Color Optix™ 8” DVC 4-Ohm subwoofers deliver loud, clear, accurate bass, and light the way for your journey! The subwoofers connect with the Rockford Fosgate Color Optix™ Controller and RF Connect App, allowing you to customize your own color patterns. The Element Ready™ design and IP67 certification makes them truly purpose-built for marine or motorsport applications where protection from damaging UV rays and water spray is essential. ColorOptix™ Speakers Product Overview

Overview

The M1 series of Element Ready™ subwoofers are designed to pair with the Rockford Fosgate Color Optix™ Controller and RF Connect App through its Deutsch™ and Amphenol™ connectors integrated into the basket. This combined with their IP67 certification make these speakers Element Ready™ and truly purpose built for marine applications. To compliment the plug and play connectivity and streamline installation, M1 subwoofers are equipped with a VersaSwitch™ to make changing impedance between 2 and 8 ohms as easy as flipping a switch.

  • Optically clear UV stable RGB Lighting Encapsulation
  • Ultra-bright wide-angle RGB LEDs provide rich, reliable illumination
  • Vented motor design with water-repelling nano coated mesh screen
  • 1.5" (39mm) High Temp Kapton™ Woofer Voice Coil Former
  • Fully insulated silicone tinsel leads
  • 100% UV Stable ASA plastic frame & grille design stands up to harsh marine environment
  • Zinc Nickel-plated Marine grade brass connection terminals
  • Industry’s first molded in-frame connectors for simple connectivity in addition to conventional spade terminals

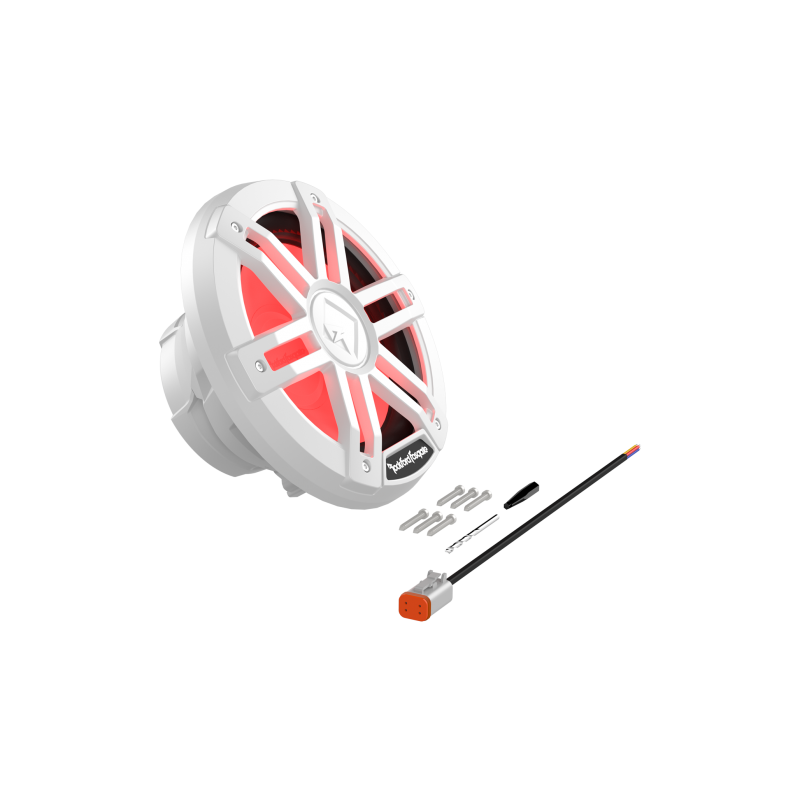

  • Integrated Deutsch™/Amphenol™ connectors make wiring connections simple and error proof
  • Linear Synthetic Fiber Blend Spiders
  • Santoprene VAST Surround
  • VAST vertical attach surround technique increases effective radiating cone area up to 25%
  • Co-molded surround and mineral filled polypropylene cone body
  • VERSA switch allows series or parallel wiring with flip of switch without additional wiring
  • 2-Year Warranty

Technologies

Element Ready™ - Speakers

These speakers are protected against Dust, UV, Water, Corrosion, and feature Stainless hardware.

Klippel Verified

Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.

ASTM B117 Testing

ASTM B117 500Hr Salt/Fog Testing Standards

ASTM G154 Testing

ASTM G154 500Hr Accelerated UV testing

IPX6 Water Intrusion Rating

Water projected in powerful jets from any direction shall have no harmful effects.

ISO60068-2-64 Testing

ISO60068-2-64 Vibration testing standards ensure the product is durable and can withstand vibrations found on watercraft and motorsport applications.

VAST Surround - Marine

The Vertical Attach Surround Technique significantly increases a subwoofer's effective radiating cone area up to 25%.

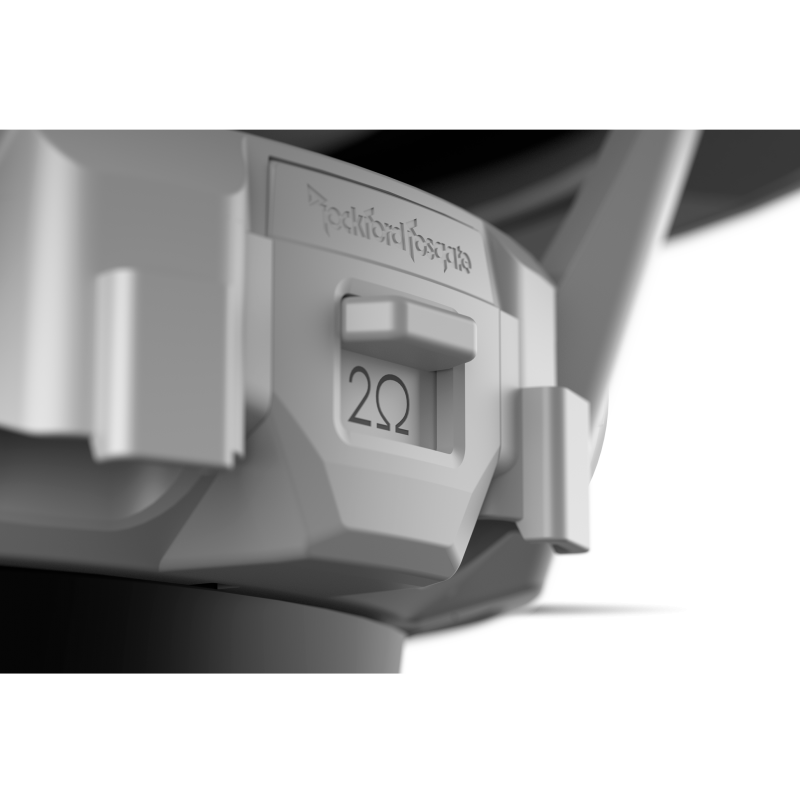

VERSA Switch

Allows you to easily switch Dual Voice Coils into a Series or Parallel configuration.

Specifications
Size8"
Nominal Impedance (Ohms)2-Ohm or 8-Ohm Switchable
Le (mH)1.70
Re (Ohms)3.2
Frequency Response20 Hz - 750 Hz
SPL (dB @ 1w/1m)87.5
Sd (cm2)227
Woofer Displacement1.40 (0.05 Liters)
Xmax (mm)7.0
Vas (Liters)15.7
Fs (Hz)44.5
Qts0.90
Power Handling (Watts RMS)150 Watts RMS
600 Watts PEAK
Magnet Weight (oz)17.72 oz. (0.50 Kg)
Voice Coil Diameter1.5" (38.6 mm)
Speaker ConnectorDeutsch™
Shipping Weight4.6 Lbs. (2.10 Kg)
