The next evolution of on-water audio, the M2 10-inch speakers create an unmatched audio experience, with class-leading output, complete on-water lighting control and grille customization.
Features & Benefits:
Color Optix™:Adjust your own bright, wide, and limitless lighting experience with the Rockford Fosgate Color Optix™ plug-and-play controller and App (Sold Separately.)
Element Ready™:Purpose Built for the Marine Environment, Rockford’s Element Ready™ products are built to stand up to Water, Salt, and UV, making sure your speakers stand the test of time.
Infinite Customization:Multiple grille options, 3DIL™ technology for 360-degree rotating rear illuminated logo, a universal clamping system are all designed to dial in your personalized-on water experience.
True Marine Ecosystem:Dual Integrated Deutsch™ / Amphenol™ connections provide industry leading marine plug-and-play connectivity and flexible install options .
Overview
CLASS LEADING OUTPUT
The M2WL-10H and M2WL-10HB models are marine grade 10" full-range horn-loaded drivers engineered specifically to be BIG and LOUD! We're not kidding ... our very own product development brief states: "Rockford Fosgate developed the 10-inch horn loaded drivers to be the loudest marine driver on the market."
The frequency response is uniquely tuned for "open-air" environments, so you hear the detail in your music the way it was intended to be heard. This makes the 10-inch horn loaded drivers perfect for use in salt or fresh watercraft as well as some UTV installations.
Due to the long-range projection capability of the horn-loaded design, these drivers can be used where the listener will be at a distance from the speaker. Includes both Sport and Stainless Steel grille inserts.
FEATURES AT A GLANCE
- Integrated 1" (25 mm) high efficiency horn tweeter
- Adjust color experience to suit your taste with Rockford Fosgate® Color Optix™ controller (optional)
- Universal clamp with 360-degree rotation fits bar sizes from 1.5" to 3" diameter
- Bright, wide-angle LEDs provide rich, reliable illumination
- RGB rear lighted medallion with 360-degree rotation ensures properly oriented logo
- Integrated Deutsch™/Amphenol™ inputs in 2 locations for thru-clamp and direct-mount configurations
- Gold plated marine grade brass terminals provide a corrosion resistant connection
- Deutsch DT connectors incorporate front/rear silicone seals to protect against environmental ingress
- 100% UV Stable ASA plastic frame & grille design stands up to harsh marine environment
- Stainless steel grilles pre-installed and includes sport grille option
- Injection molded mineral filled polypropylene cone body with UV inhibitors
- Provides superb low and midrange frequency reproduction with smooth high frequency roll-off
- VAST vertical attach surround technique increases effective radiating cone area up to 25%
- Klippel Verified certification program delivers the best possible loudspeakers
- IPX6 Water Intrusion Rated
- 2-Year Warranty
Technologies
COLOR OPTIX CONTROL
Adjust your own bright,wide,and limitless lighting experience with the Rockford Fosgate Color Optix plug-and-play controller and App(sold separately).
ELEMENT READY SPEAKERS
All components are protected against harsh outdoor elements like Dust,UV,temperature,Water,Corrosion & Vibration.
3DIL TECHNOLOGY
3DIL technology allows for a 360-degree rotating rear illiminated logo so the logo is always properly oriented based on mounting angle.
TRUE MARINE ECOSYSTEM
Dual integrated Deutsch and Amphenol connections provide industry leading marine plug-and-play connectivity and flexible install options.
Klippel Verified
Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.
IPX6 Water Intrusion Rating
Water projected in powerful jets from any direction shall have no harmful effects.
Vast + Co-Molded Surround
The vertically attached surround is co-molded to the cone to provide an incredibly strong bond at the mounting point.
ICC Crossover
The Integrated Concealed Crossover hides the crossover inside the basket, creating a cleaner look and easier installation.
CE Compliant
This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 EC).
Specifications | |
---|---|
Shipping Weight | 24 Lbs. (10.8 Kg.) |
Dimensions | 15.23" x 11.50" x 14.68" (386.9 mm x 292.1 mm x 372.8 mm) |
LED Recommended Fuse | 1 A |

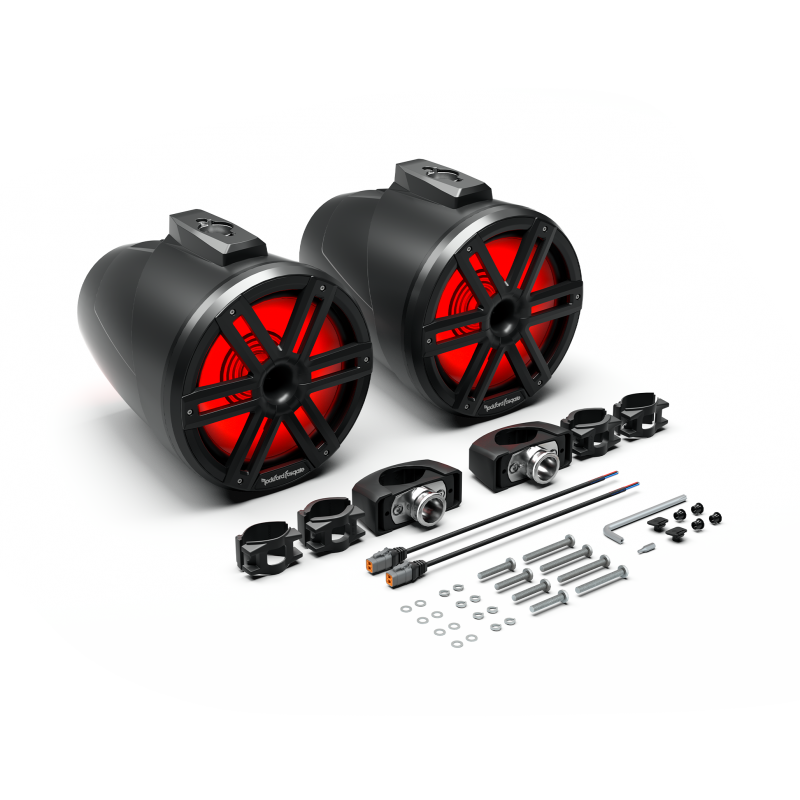

In The Box | (2) Loaded wake cans (2) Universal clamps (1130-74671-A1) (2) Grommets (2) Spare safety inserts for screw clamp (2) 6-pin Deutsch harnesses (1130-73416-C1) (1) Safety Torx wrench (2) 1.5"- 2.5" rubber inserts & stainless screws (2) 2.5"- 3.0" rubber inserts & stainless screws (2) Black sport grills (1) Allen bit for rotating speakers in can |
LED Current Draw | 0.25 A |
LED Voltage Range | 9 - 16 VDC |
Power Handling (RMS) | 300 Watts (RMS) 1200 Watts (PEAK) |
Frequency Response (Hz) | 20 Hz - 25 kHz |
Nominal Impedance (Ohms) | 4Ω |
Speaker Connector | 6-pin Deutsch™/Amphenol™ |
Enclosure Material | High density ASA |
Enclosure Design | Sealed |
Speaker Series | M2 (M2-10HB) |
Speaker Size | 10" |
Speaker Quantity | 2 |
Speaker Type | 2-Way Loaded Enclosure |
