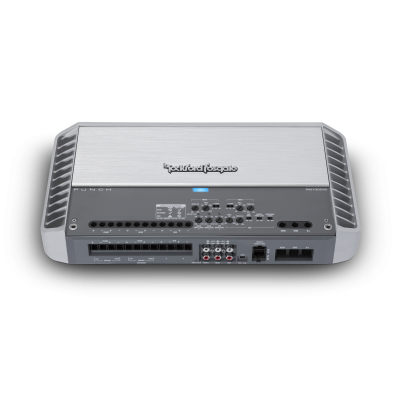

The PM1000X5 is a 1000 Watt 5-channel amplifier with high dynamic power using Class-a/b technology on the front/rear channels, Class-bd for the subwoofer channel, and a conformal coated pc board designed for motorsport and marine applications.
Overview
The PM1000X5 1,000 Watt full-range 5-channel is the one-and-only amplifier you will need to run your entire system. Run dash speakers off the front channels, run back speakers off the rear channels and run subwoofer(s) off the 5th channel! Known world-wide for brute power, this amplifier offers a higher level of efficiency along with a tri-stage protection that covers thermal, over-current and short circuits.
- High level input capable with Auto Turn-On circuit
- Features C.L.E.A.N. Set-up
- Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
- 12dB/octave Butterworth crossover
- On-board Punch EQ with +18dB boost @ 45Hz
- Muted turn on
- Stealth top mounted control panel
- Cast aluminum heatsink
- Short circuit protection
- Over current protection
- Infrasonic filter
- 2/4 channel input switch
- Marine grade two part epoxy coating on circuit boards
- Marine grade stainless steel hardware
- 2-Year Warranty
Technologies
Class BD
Class BD amplifiers have 75-80% efficiency ratings vs. 20-60% efficiency ratings of traditional class A/B amplifiers.
CE Compliant
This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 EC).
Balanced Differential Inputs
Differential inputs eliminate noise picked up by signal cables.
CEA-2006 Compliant
Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.
TRANS•ana
Trans•ana is a Class A/B topology that simplifies the signal path of the amplifier allowing the signal to travel through the amplifier at a lower voltage. The result is greater reliability and exceptional sound quality.
Element Ready™ - Amps
These amplifiers are protected against Dust, UV, Corrosion, and feature Stainless hardware.
DTM
Dynamic Thermal Management evenly distributes excess heat across entire amplifier heatsink.
DSM
DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.
MEHSA3
MEHSA3 reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.
NOMAD
NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances.
C.L.E.A.N. Set-Up
C.L.E.A.N. (Calibrated Level Eliminates Audible Noise) is a patented circuit with in/out clip LEDs to help match a source to amp and optimize output.
Specifications | |
---|---|
Remote Controls | Optional Punch Level Control (PLC2) Ready |
Cooling | Convection |
Heat Sink Type | Cast |
Crossover Controls | Front: 50Hz - 250Hz High-Pass @ 12dB/Octave Rear: 50Hz - 250Hz High-Pass @ 12dB/Octave Sub: 50Hz - 250Hz Low-Pass Sub: 28Hz infrasonic filter @ 12dB/Octave |
Bridgeable | Yes (front/rear channels) |
Total Power (Sum of Rated Power) | 1000 Watts |
Suggested Alternator | 100 A |
Rated Power (RMS Continuous Power) | 75 Watts x 4 + 150 Watts x 1 @ 4-Ohm 125 Watts x 4 + 300 Watts x 1 @ 2-Ohm N/A + 500 Watts @ 1-Ohm |
Recommended Fuse (not included) | 150 A |
Max. Current Draw (13.8V Sinewave) | 150 A |
Average Current Draw (13.8V Music) | 75 A |
Total Harmonic Distortion (THD+Noise) | <1.0% |
Dimensions (H x W x D) | 2.38 x 7.76 x 15.03 (in) 6.05 x 19.71 x 38.18 (cm) |
Speaker Output Connector | Block |
Speaker Wire Gauge | 12 AWG |
Visual Indicators | Power/Protect/Thermal LED Input Clip LED3 Output Clip LED1,2,3 LED Color Legend: 1BLUE: <0.5% THD 2VIOLET: 1% THD 3RED: 10%+ THD |
Power Wire Gauge | 4 AWG |
Power Input Connector | Block |
Signal Output | - |
Number of Channels | 5 |
Tone Controls | Sub: 0dB to +18dB @ 45Hz |
Signal Input | Input Switch: Hi/Low level input Input Switch: 2/4 channel input Hi/Low Level: 3 RCA Pair Sub: front/sub input switch |
Input Sensitivity | 150 mV - 12 V |
Operating Voltage | 9 - 16 VDC |
Circuit Topology Class | Class A/B + Class BD (Sub) |
Frequency Response | Front/Rear: 20Hz - 20kHz +/-3dB Sub: 20Hz - 500Hz +/-3dB |
Shipping Weight | 15.3 Lbs. (6.93 Kg.) |
Dynamic Power (PVC/PowerCube®) | 115 Watts x 4 + 299 Watts x 1 @ 4-Ohms 0° Res 190 Watts x 4 + 540 Watts x 1 @ 2-Ohms 0° Res N/A + 863 Watts x 1 @ 1-Ohm 0° Res |
Efficiency (average) | Front/Rear: 66% @ 4-Ohm Sub Channel: 80% @ 4-Ohm |
