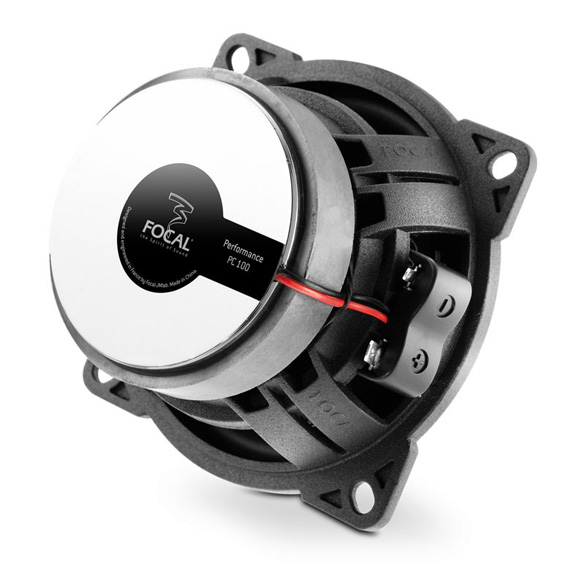

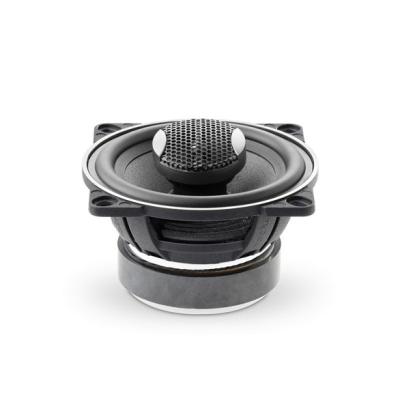

Focal Two-Way Co-Axial Kit - PC100
PC100
A COMPACT AND POWERFUL KIT
4''(10 CM)
TWO-WAY COAXIAL KIT
With its 315/16″ (100mm) speaker drivers, this kit will have no problem finding its place in your vehicles sound system. It's inverted dome tweeters provide mellow sound and great definition without directivity. The Polyglass cone woofer ensures natural sound without coloration.
These speaker drivers are very resistant thanks to the butyl suspension as well as the rigid aluminum chassis. Another key point is the tweeter’s acoustic horn which improves the position of the soundstage.
With more than 30 years of experience in the field of high-end audio equipment, Focal has become a reference in the car audio sector. Hundreds of technological innovations have marked Focal’s history and development for your greatest listening pleasure.
What makes the difference:
- Partial horn loading tweeter
- High sensitivity
- High soundstage
- Enhanced dynamics and neutrality
| Specifications | |
|---|---|
| Nominal power | 50W |
| Maximum power | 100W |
| Sensitivity | 90.9dB |
| Cone | Polyglass |
| Surround | Butyl |
| Nom. impedance | 4 Ohms |
| DC resistance | 3 Ohms |
| VC diameter | 25mm |
| VC height | 9.5mm |
| Former | Kapton |
| Layers | 2 |
| Wire | Copper |
| Inductance | 0.14mH |
| Xmax | 2.25mm, 0 1/16 in |
| Magnet d x h | 72 x 15mm , 2 13/16 x0 9/16 in |
| Magnet weight | 160g , 0.35 Ib |
| Flux density | - |
| Gap height | 5mm 03/16 in |
| Net weight | 650g , 1.43 Ib |
